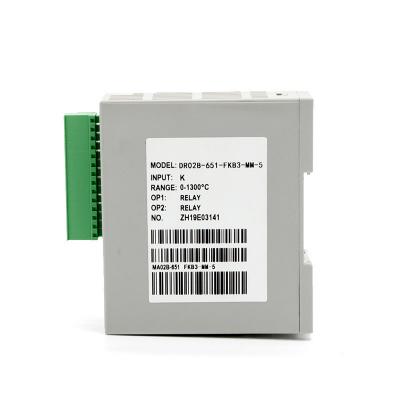

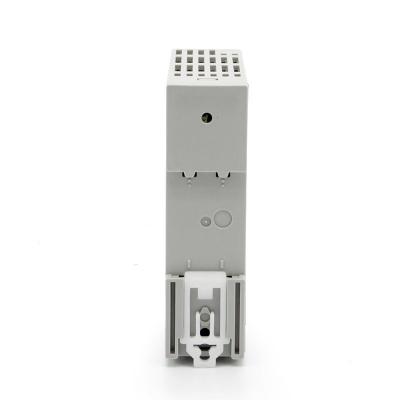

Two Channel dual loop Din rail temperature controller

Maxwell DR02B is a din rail mount PID temperature controller, 2 channel configuraitons, support thermocouple inputs(K,E,J,N,W,S,T,R,B), and output can be Relay, SSR Drive, it's a very simple din rail mount ccontroller, PID or ON/OFF control mode, RS-485 modbus communication as standard features, 85~265Vac source for easy system intergration, auto-tuning for both loops and with an external plug and play external configruation devices. the field configuration will be very easy to carry out.

Brand:
MAXWELL
Item no.:
DR02B
Min order:
1 PCS
Product weight:
200g

Inquiry now

Two Channel dual loop Din rail temperature controller

-Key features

● Modbus RS-485 RTU
● C/F display selectable
● 0.2%F.S accuracy
● No alarm output
● Output high/low limit configurable
● Setting value high low limit
● Input offset
● Auto-tuning
● CE comply

The setting of this controller can be carried from human machine interface via RS-485, or via an external configuration board supplied by us, below is the image of the external configuration board, the setting from HMI could be a little difficult for some end users and doing it by using a configuration board is very straight forward, and very much the same as setting up a conventional panel mount temperature controller.

-Click below for the catalog and user manual

Catalog-(DR02B, 2 channel DIN rail mount temperature controller)
User manual-(DR02B, 2 channel DIN rail mount temperature controller)

Click on below link to download documents

DR02B Catalog
DR02B User manual
