Two Channel 4 Output DIN Rail Mount Temperature Controller

Maxwell DR04C is a din rail mount PID temperature controller, 2 channel configuraitons, works with TC/RTD inputs, and output can be Relay, SSR Drive, or analog like 4-20mA, 0-10VDC, 2 auxiliary outputs can be assigned as the alarm output for any of the channel, or it can also be configured as the cooling output, in some particular application, the auxiliary output can also be programmed as an event output which is controlled by a master device via RS-485 communication, the RS-485 is a standard features. 24VDC source to sure greater saftey.

Item no.:
DR04C
Min order:
1 PCS
Product weight:
200g

Inquiry now

Two Channel 4 Output DIN Rail Mount Temperature Controller

-Key features

● Dual channel 4 outputs
● 2 main outputs and 2 auxiliary outputs

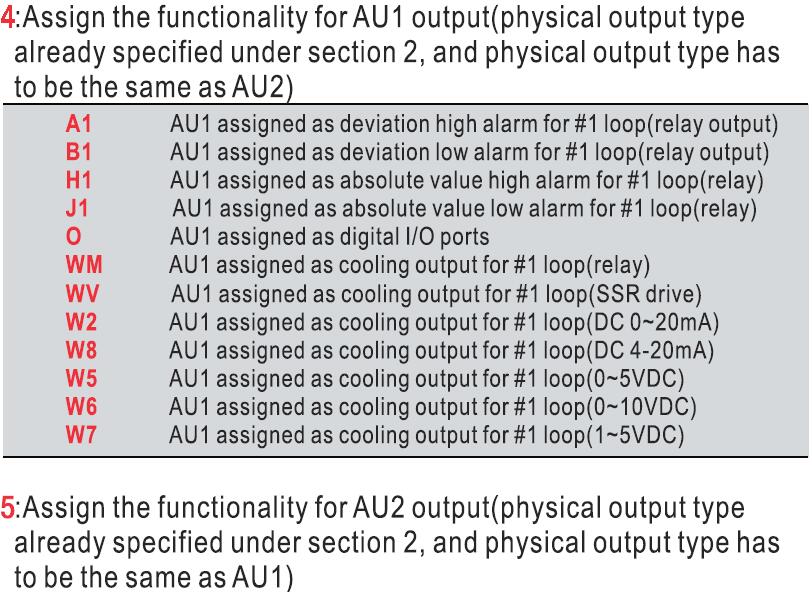

● 2 auxiliary outputs can be configured alarm, cooling output or digital I/O ports
● C/F display selectable
● Maximum 15 units can be daisy chained and share the same source
● Wiring on the RS-485 and power source can be done at once together
● K,E,J,T,S,R,N,B,Wu3_Re25,PT100 input
● Heating or cooling, heating+cooling configurable
● PID or ON/OFF control mode
● 0.3%F.S accuracy.
● Auto/manual control bumpless transfer
● Soft-start for analog output
● RUN/STOP function
● Output high/low limit configuration

-Click below for the catalog and user manual

Catalog-(DR04C, 2 channel DIN rail mount temperature controller)
User manual-(DR04C, 2 channel DIN rail mount temperature controller)

Click on below link to download documents

DR04C Catalog
DR04C User manual
