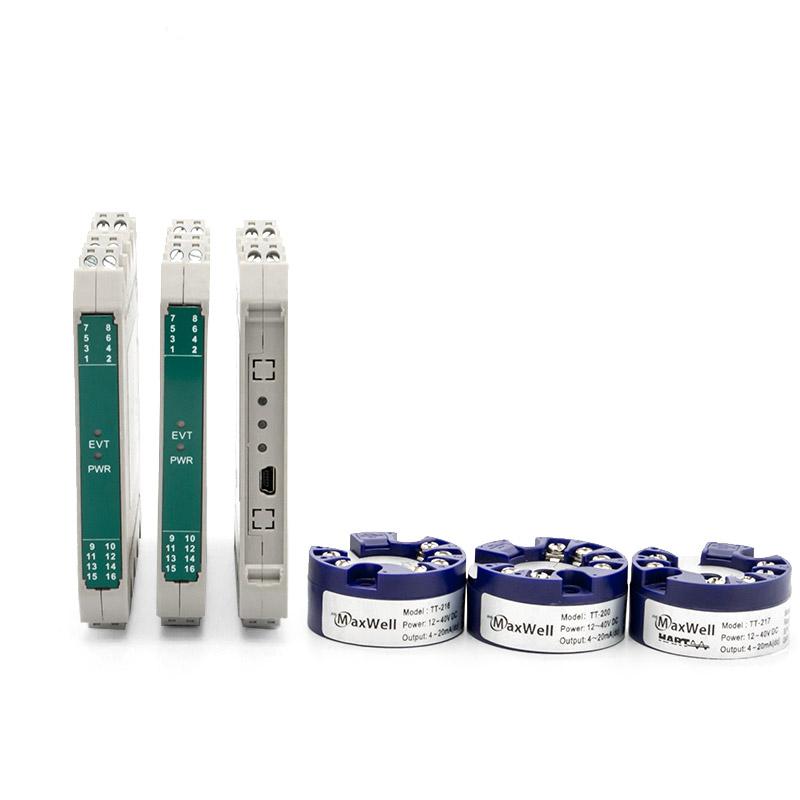

DIN Rail Mount 2 Inputs 2 Outputs Temperature Transmitter

TT-600 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English, the programming can be done via a standard USB to type C cable.

● Din rail mount temperature transmitter● Maxwell TT-312● DIN rail mount type● Universal input● 2 wires 4-20mA or 0-10Vdc output● One input two outputs● Range and input type programmable via PC software

TT-311 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English

TT-513 is a cost-effective din rail mounted temperature transmitter, it is 1 input and 1 output version, available with 4-20mA and 0-10Vdc output, works with TC/RTD input, such as type K, PT100, you can programmable the input and range via PC software and cell phone APP( cell phone app available on Android device)

● Cooling fans● 12cm*12cm or 8cm*8cm● Sleeve bearing fans● 220Vac or 110Vac

The PT100-8 is a probe-type Platinum Resistance Thermometer (PT100 RTD) distinguished by its adjustable insertion depth — a key feature that sets it apart from fixed-length sensors. A stainless steel compression fitting is integrated into the assembly, forming a liquid-tight or pressure-tight seal against the process wall while allowing the operator to slide and lock the probe at any desired insertion depth before or after installation. This eliminates the need to specify a fixed immersion length at the time of ordering and greatly simplifies retrofitting into existing equipment. The probe is constructed from 304 stainless steel and is available in diameters of 4 mm, 5 mm, and 6 mm. The lead cable is shielded with a metal braid and covered with PTFE insulation, delivering low noise, high mechanical strength, and excellent resistance to elevated temperatures. The PT100-8 is compatible with a wide range of process fittings — including NPT, BSP, and metric threads — and is available in a waterproof configuration, making it suitable for measuring the temperature of both air and liquids across diverse industrial environments.

Maxwell PU90 ramp and soak PID profile multile steps controller is a touch key temperature controller, the process value changed based on predetermined ramping rate and soak rate. process value changes based on a curve over time, the output can be Relay to drive an AC contrator, or SSR Drive to drive an external solid state relay, or 4-20mA analog outputs, the setting keys on the panel is touch key with a responsive sound, it is not a conventional setting key where it goes down a little bit when you push it, it's a touch key which makes it very durable. high sampling rate and RS-485 optional.

The TC-K8 is a high-performance K-type thermocouple temperature sensor engineered for accuracy and durability in demanding high-temperature environments. Its defining feature is a robust ceramic sheath that provides exceptional resistance to thermal shock, chemical corrosion, and oxidation at elevated temperatures — making it the preferred choice for industrial processes such as kiln firing, furnace monitoring, and heat treatment operations. The sensor consists of two distinct probe sections: a stainless steel section that connects to the connection box, and a ceramic section that extends into the high-temperature measurement zone. This dual-material construction combines the mechanical strength and machinability of stainless steel with the superior thermal stability and chemical inertness of advanced ceramic materials. The integrated die-cast aluminum connection box provides a secure, weatherproof enclosure for the thermocouple terminals, protecting electrical connections from moisture, dust, and mechanical interference. Both the probe diameter and probe length of each section are fully customizable, enabling precise adaptation to virtually any industrial installation geometry. As part of the PIDMaxWell range of temperature measurement solutions, the TC-K8 is designed to integrate seamlessly with PID temperature controllers, temperature transmitters, and data acquisition systems.
