Programmable din rail temperature transmitter

isolated programmable din rail mount temperature transmitter

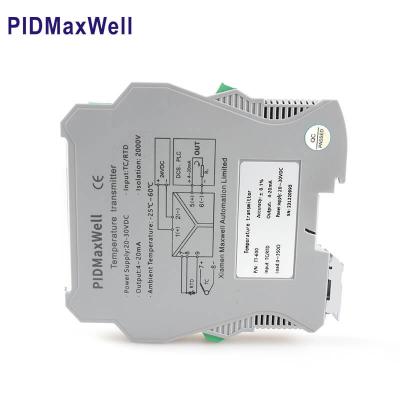

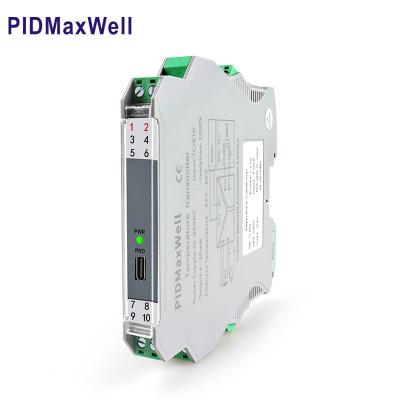

TT-600 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English, the programming can be done via a standard USB to type C cable.

Brand:
PIDMaxWell
Item no.:
TT-600

Inquiry now

Isolated din rail mount temperature transmitter

-Key features

● Din rail mount transmitter
● Thermocouple and RTD inputs(K,E,J,T,R,S,N,Wre3-25),RTD(PT100,Cu50,PT1000)
● Isolation between input, output and power supply
● Input and range programmable via PC software
● 0.1%F.S measuring accuracy
● Only a regular type C to USB cable needed for programming
● Power supply 18~35Vdc
● Private label available on request
● CE comply

Configuration

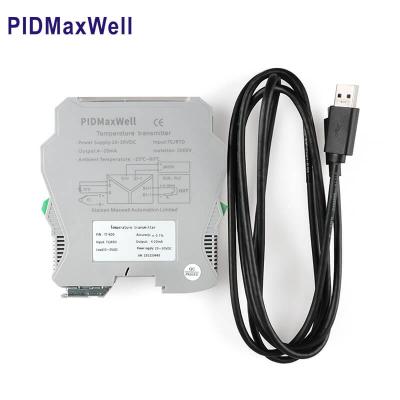

Only a standard USB to type C cable needed for programming.

Ordering infromation

TT-600 DIN rail mount temperature transmitter, 1 input 1 output, 4-20mA output
TT-600-V DIN rail mount temperature transmitter, 1 input 1 output, 0-10Vdc output

Click on below link to download software and catalog

Catalog-(TT-600 temperature transmitter
TT-600 Configuration software

This is a configurable DIN rail mount temperature transmitter, the input and range is configurable via software, below is a video tutorial on how to use the software, only a standard USB to type C cable needed. a lot of DIN rail transmitter made in China need a special programming kit for programming purpose, it increases the cost of purchase and it is not a standard approcah. this rail mount transmitter only need a USB to type C cable

What industries use temperature transmitters?

Since the 1950s, when electronics really began to reach mass market, transmitters have been used in every major industry where temperature sensors are present:

Aerospace
Chemical

Food & Beverage
Energy
HVAC
Pharmaceuticals
Metal Plating
Mining
Oil & Gas
Petrochemicals
Waste & Water Management
Electronic OEMs
