Programmable din rail temperature transmitter

Programmable din rail mount temperature transmitter

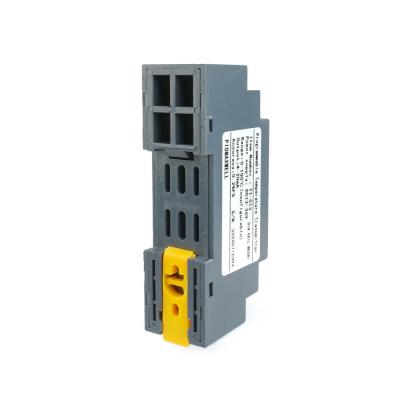

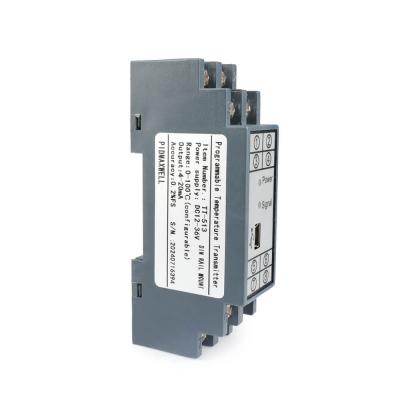

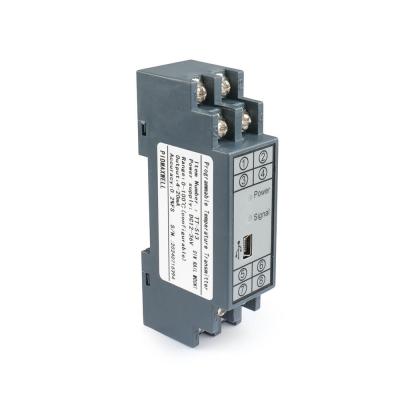

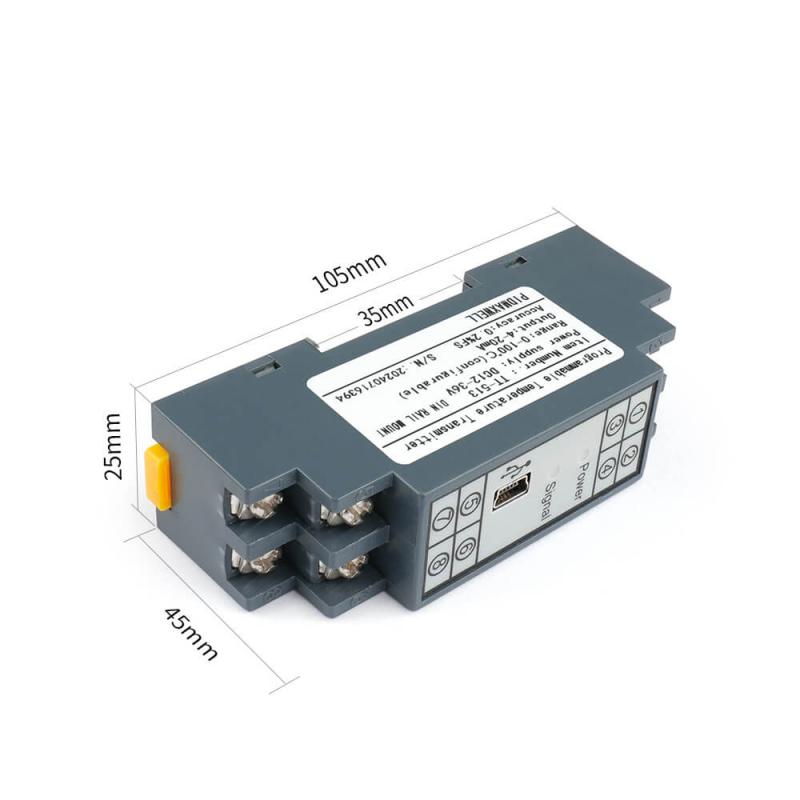

TT-513 is a cost-effective din rail mounted temperature transmitter, it is 1 input and 1 output version, available with 4-20mA and 0-10Vdc output, works with TC/RTD input, such as type K, PT100, you can programmable the input and range via PC software and cell phone APP( cell phone app available on Android device)

Brand:
PIDMaxWell
Item no.:
TT-513

Inquiry now

Cost effective Din rail mount temperature transmitter

-Key features

● Din rail mount transmitter
● Thermocouple and RTD inputs(K,S,R,B,N,E,J,T,WRe3/255,WRe5/26,WRe5/20)RTD(PT100,Cu50,PT1000(PT1000 needs to be specified when order)
● Input and range programmable via PC software and cell phone APP(only available with Android cell phone)
● 0.1%F.S measuring accuracy
● Special cable needed for programming, Please do not use any other cable
● Power supply 12~36Vdc
● Private label available on request
● CE comply

Ordering infromation

TT-513 DIN rail mount temperature transmitter, 1 input 1 output, 4-20mA output
TT-513-V DIN rail mount temperature transmitter, 1 input 1 output, 0-10Vdc output

Click on below link to download software and catalog

Catalog-(TT-513 temperature transmitter)
PC configuration software for TT-513
Cell phone configuration software for TT-513
Wiring diagram-(TT-513 temperature transmitter)

This is a configurable DIN rail mount temperature transmitter, the input and range is configurable via software, below is a video tutorial on how to use the PC software

Check below video on how to configure the transmitter via cell phone APP( only works with Android cell phone)

What industries use temperature transmitters?

Since the 1950s, when electronics really began to reach mass market, transmitters have been used in every major industry where temperature sensors are present:

Aerospace
Chemical

Food & Beverage
Energy
HVAC
Pharmaceuticals
Metal Plating
Mining
Oil & Gas
Petrochemicals
Waste & Water Management
Electronic OEM

1)How do I configure the DIN rail temperature transmitter for different sensor type and transmitting range ?

The range and input is configurable via PC and cell phone( Andorid to be specific), you may download the software from the download section

2)Do I have to connect 24VDC source to the DIN Rail temperature sensor while configure it ?

You don't have to connect 24VDC source to the transmitter while configure it, the unit will draw power from computer and cell phone, which
makes it very easy to work with.

3)Can we use a regular USB cable to carry out the configuration process ?

A special USB cable is needed for configuration. Please conatct our sales team to purchase V2 cable, Do not use regular cable
