Rail mount temperature transmitter

TT-311 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English

  • Brand:

    PIDMaxWell
  • Item no.:

    TT-311

Isolated din rail mount temperature transmitter

-Key features



● Din rail mount transmitter
● Thermocouple and RTD inputs(K,E,J,T,R,S,N,Wre3-25),RTD(PT100,Cu50,PT1000)
● Isolation between input, output and power supply
● Input and range programmable via PC software
● 0.1%F.S measuring accuracy
● Only a regular type C to USB cable needed for programming
● Power supply 18~35Vdc
● Private label available on request
● CE comply


Configuration

Only a standard USB to type C cable needed for programming.














There are two basic methods to power industrial automation products, self-powered and loop powered, this DIN rail temperature transmitter can be made as self-powered device which will need a independent power source or loop-powered device, please choose the correct code when order with us, ordering example

TT-311-LP, means 1 input 1 output, 4-20mA output, loop-powered version

-The range and the sensor type of the transmitter is configurable via free PC software, below is a video demostration on how to install the software, how to use the software to change the input and range of the temperature transmitter.



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related products
Programmable din rail temperature transmitter

TT-600

isolated programmable din rail mount temperature transmitter
TT-600 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English, the programming can be done via a standard USB to type C cable.
view more

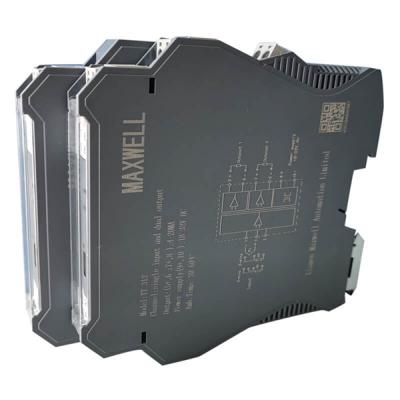

2 Inputs 2 Outputs Temperature Transmitter

TT-313

DIN Rail Mount 2 Inputs 2 Outputs Temperature Transmitter
● Din rail mount temperature transmitter● Maxwell TT-313● DIN rail mount type● Universal input● 2 wires 4-20mA output● Two input two outputs
view more
DIN rail mount temperature transmitter

TT-312

Rail Mount 1 Input 2 Outputs Temperature Transmitter
● Din rail mount temperature transmitter● Maxwell TT-312● DIN rail mount type● Universal input● 2 wires 4-20mA or 0-10Vdc output● One input two outputs● Range and input type programmable via PC software
view more
Programmable din rail temperature transmitter

TT-513

Programmable din rail mount temperature transmitter
TT-513 is a cost-effective din rail mounted temperature transmitter, it is 1 input and 1 output version, available with 4-20mA and 0-10Vdc output, works with TC/RTD input, such as type K, PT100, you can programmable the input and range via PC software and cell phone APP( cell phone app available on Android device)
view more

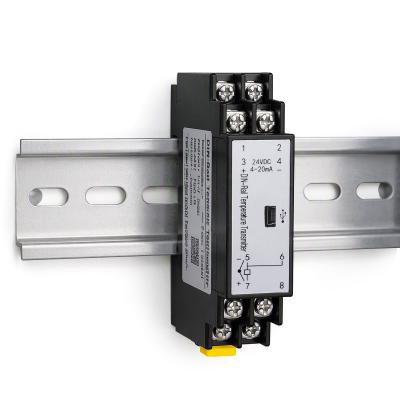

Universal Din Rail Temperature Transmitter – 4-20mA Output, PC & App Configurable
