Universal Din Rail Temperature Transmitter – 4-20mA Output, PC & App Configurable

Din Rail Temperature Transmitter 4-20mA Universal RTD PT100 Thermocouple PC/App Configurable

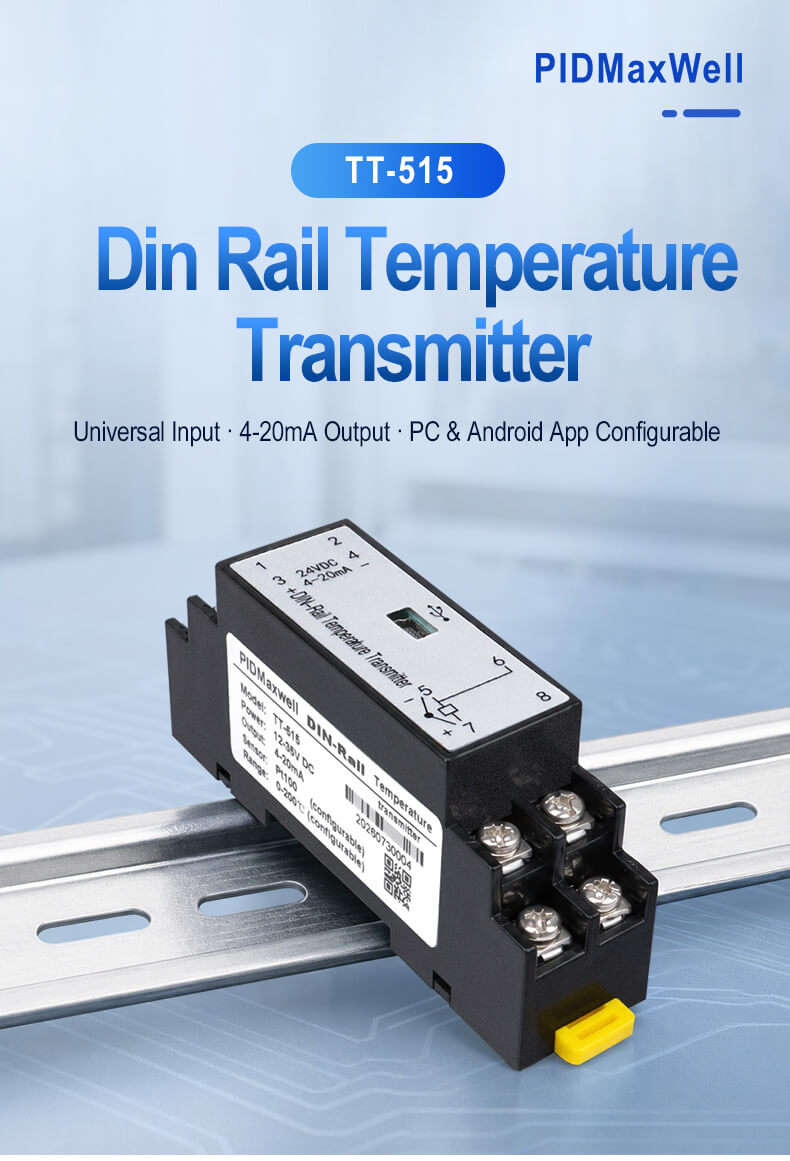

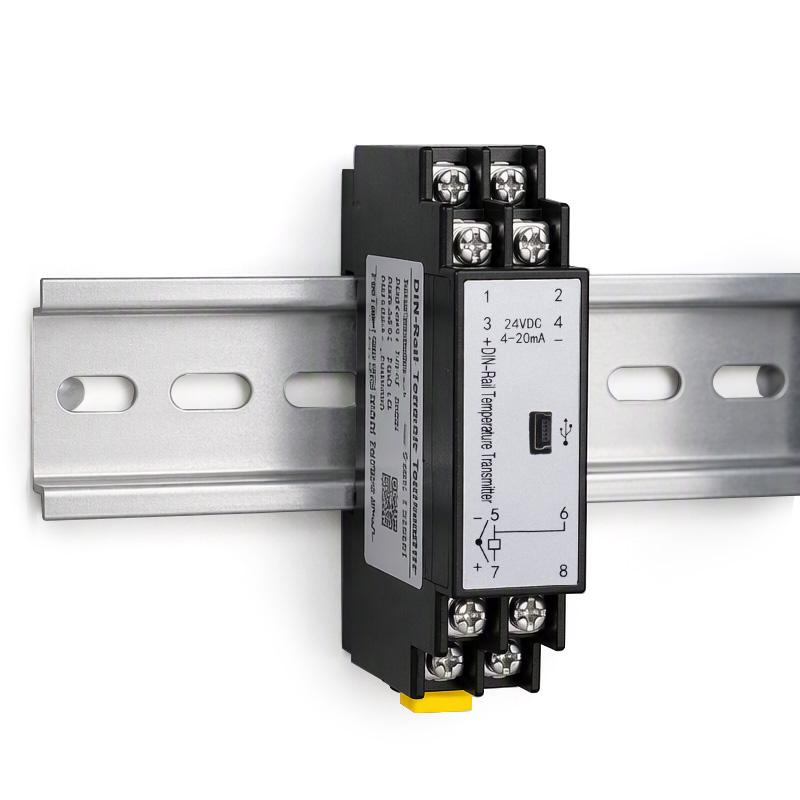

PIDMaxwell TT-515 Din Rail Temperature Transmitter

features universal input for RTD (PT100, Cu50, Cu100) and thermocouples (K, J, E, T, S, R, B, N), delivering a standard 2-wire 4-20mA output. It offers 0.1% F.S accuracy for RTD and 0.2% F.S for TC, with built-in cold junction compensation and surge protection. Configure via PC software or Android app—USB powered setup means no external 24VDC supply is needed. Compact DIN rail mounting, wide -40°C to +80°C operating range, ideal for industrial process control, HVAC, power generation, and more.

Brand:
PIDMaxWell
Item no.:
TT-515
Market price:
$30
Price:
$26
Product origin:
Made in China
Goods stock:
100
Min order:
10
Product weight:
0.1kg
Lead Time:
14 days after payment confirmed

Inquiry now

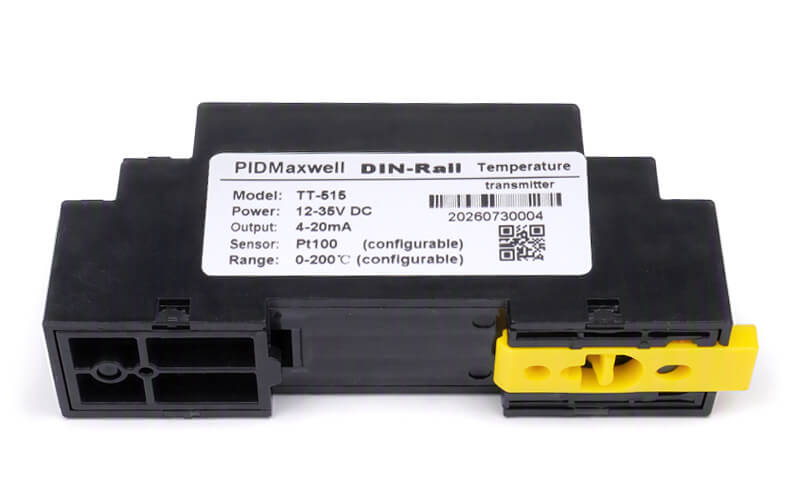

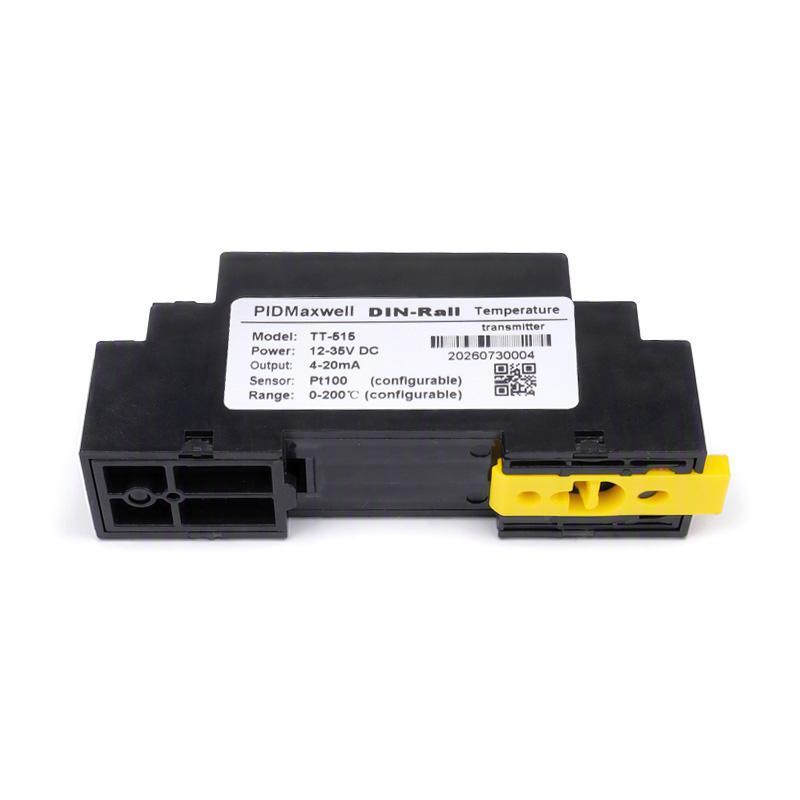

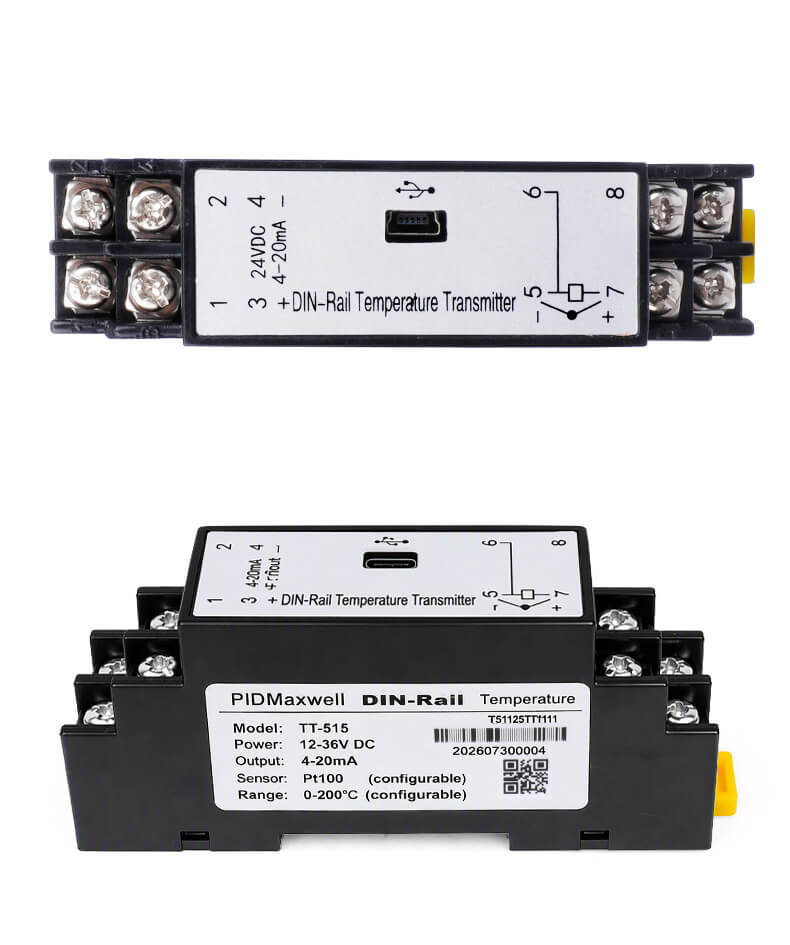

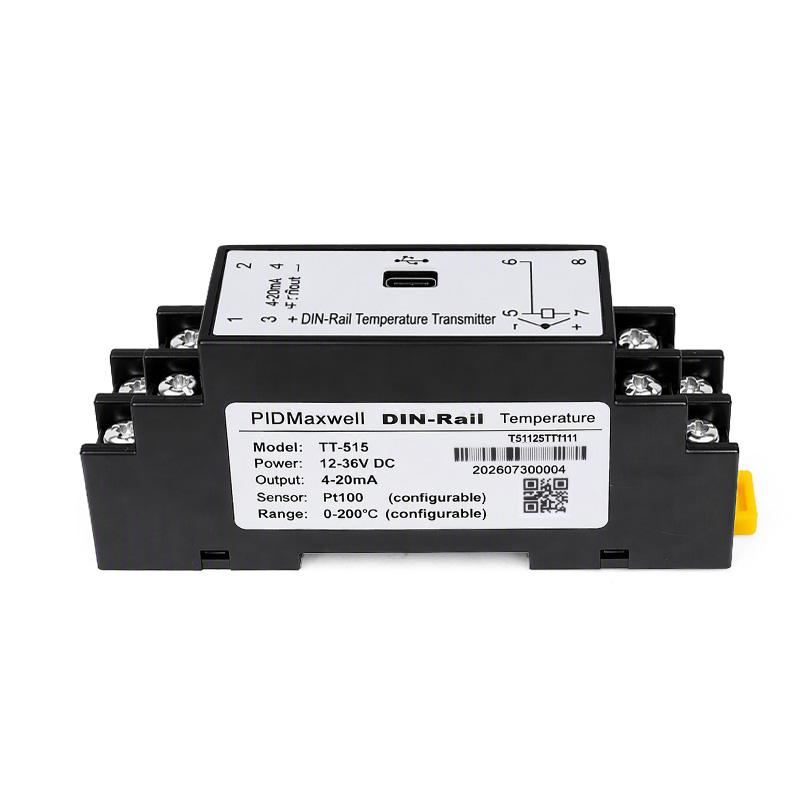

TT-515 Din Rail Temperature Transmitter

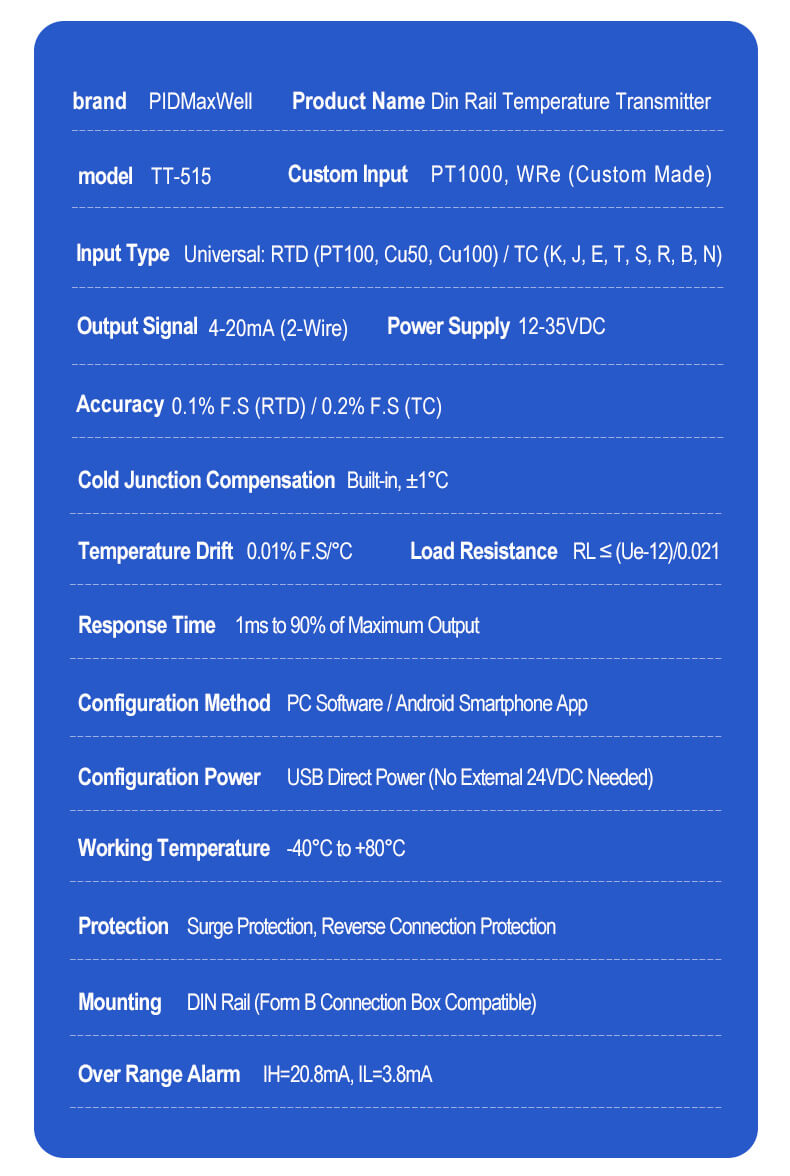

-Key features

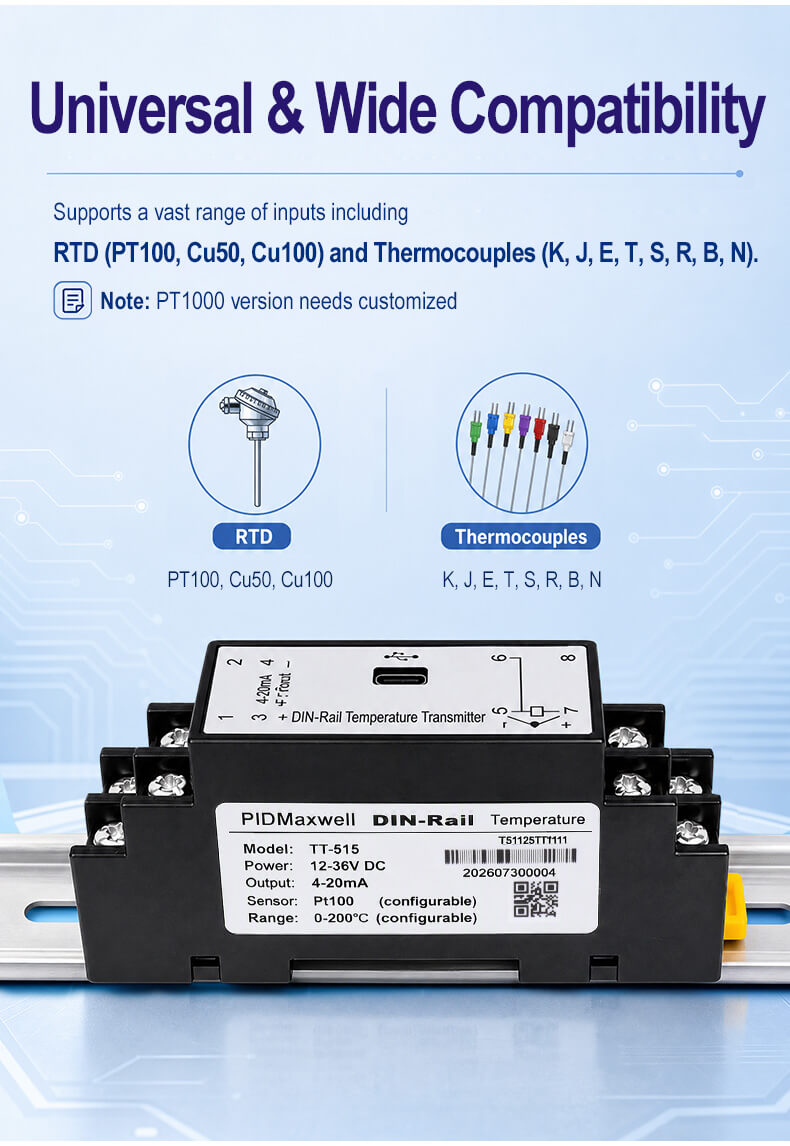

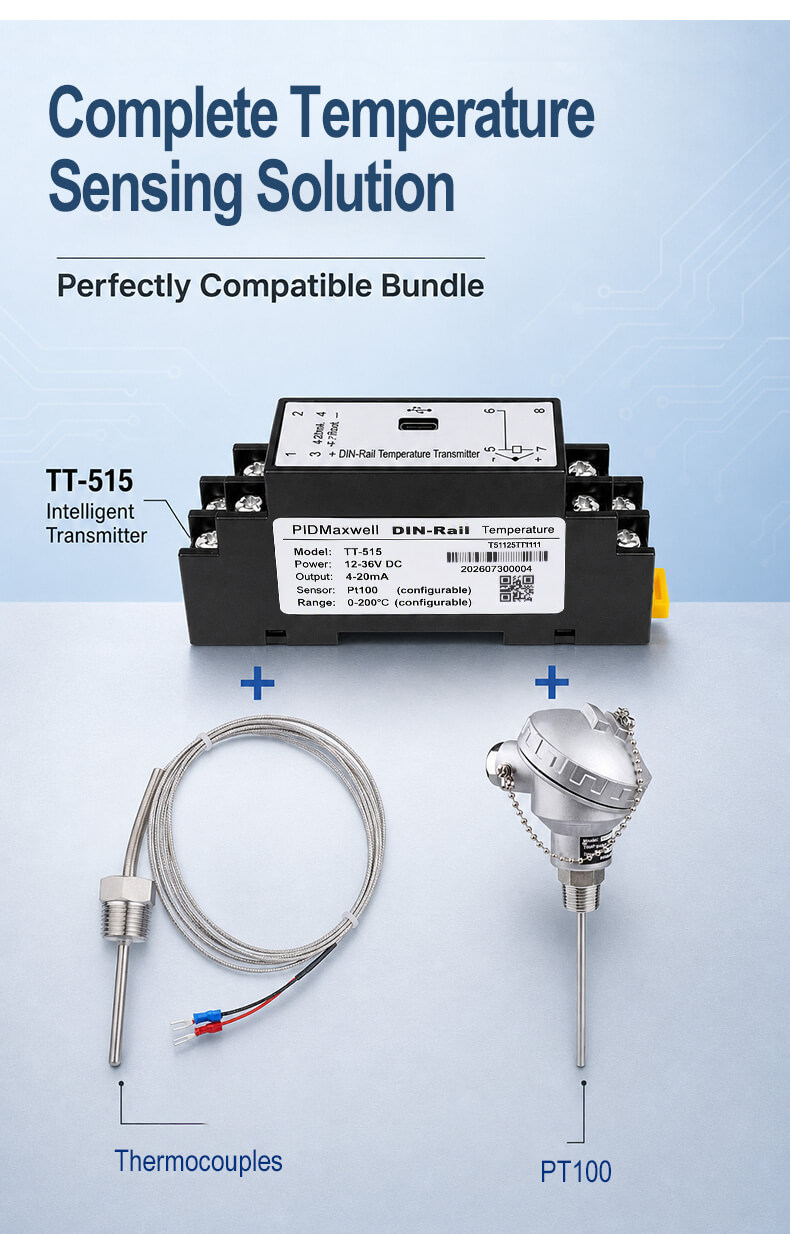

Universal Input – Supports RTD (PT100, Cu50, Cu100) and Thermocouples (K, J, E, T, S, R, B, N); PT1000 & WRe available on custom order.
Standard 4-20mA Output – 2-wire loop-powered output, easy integration with PLC/DCS systems.

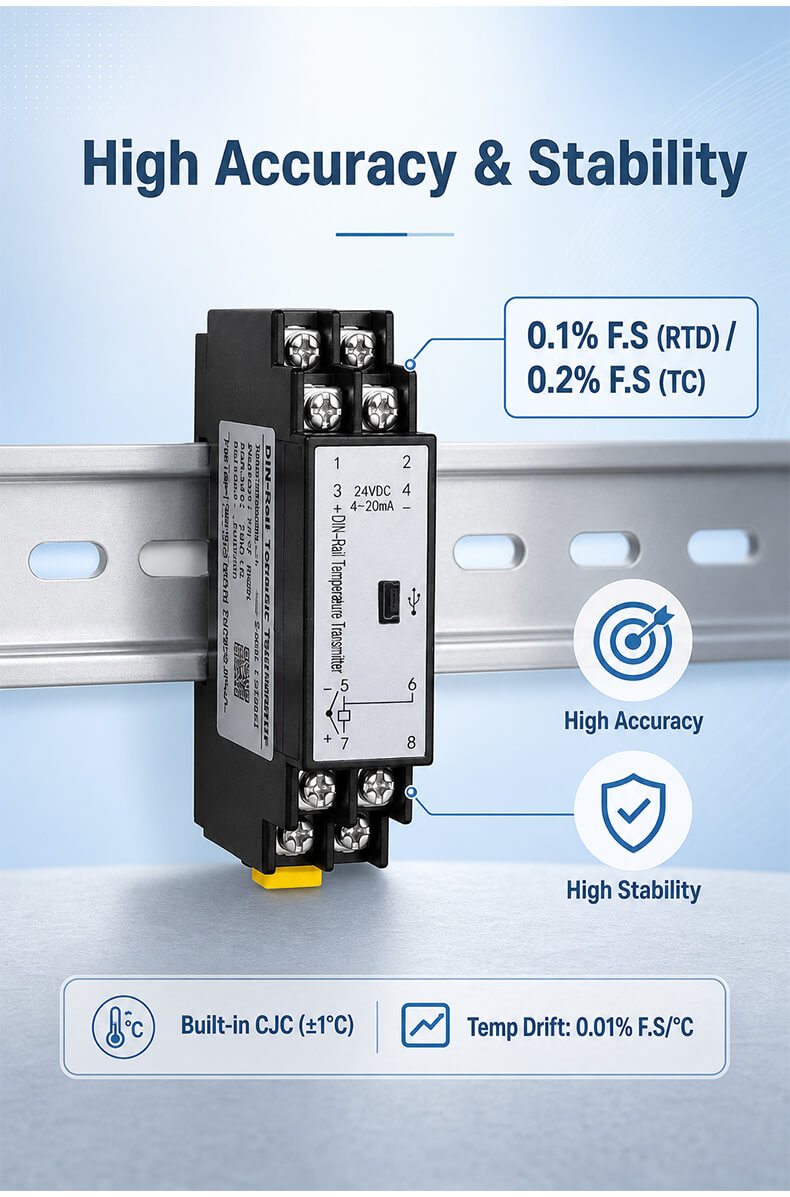

High Accuracy – 0.1% F.S for RTD, 0.2% F.S for TC, with built-in cold junction compensation (±1°C).

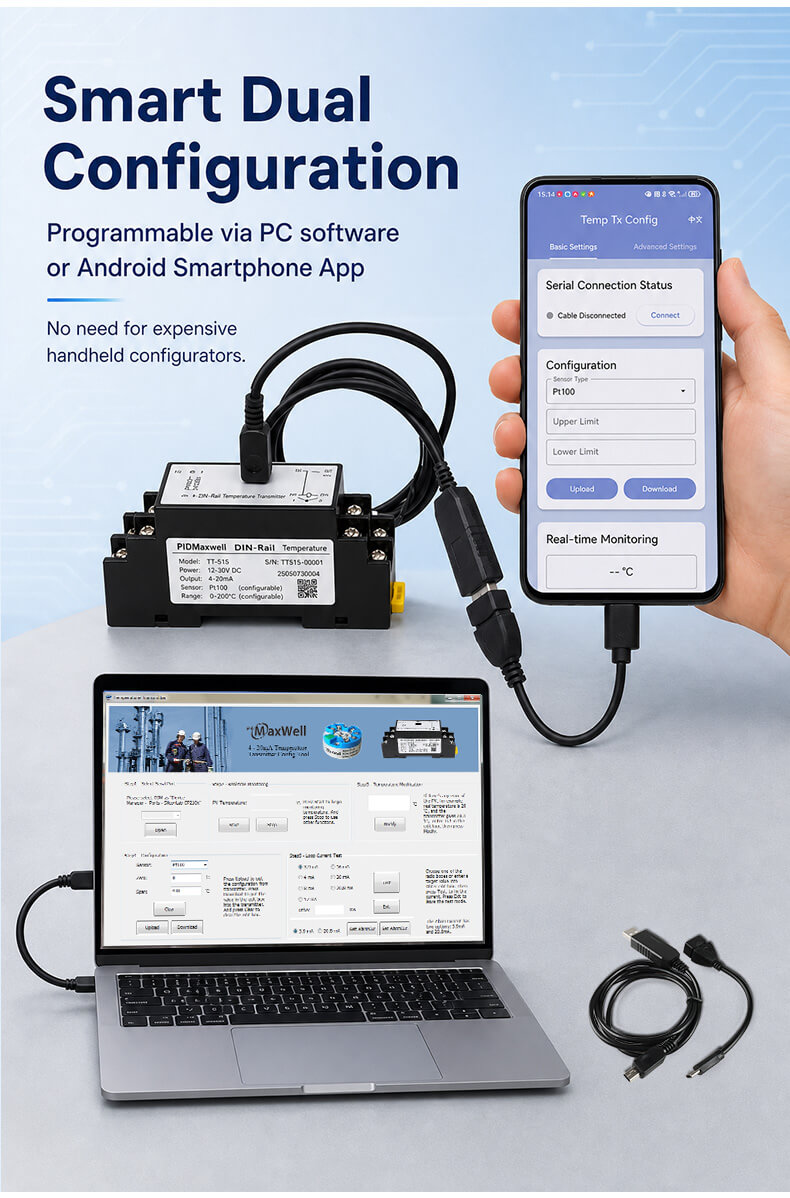

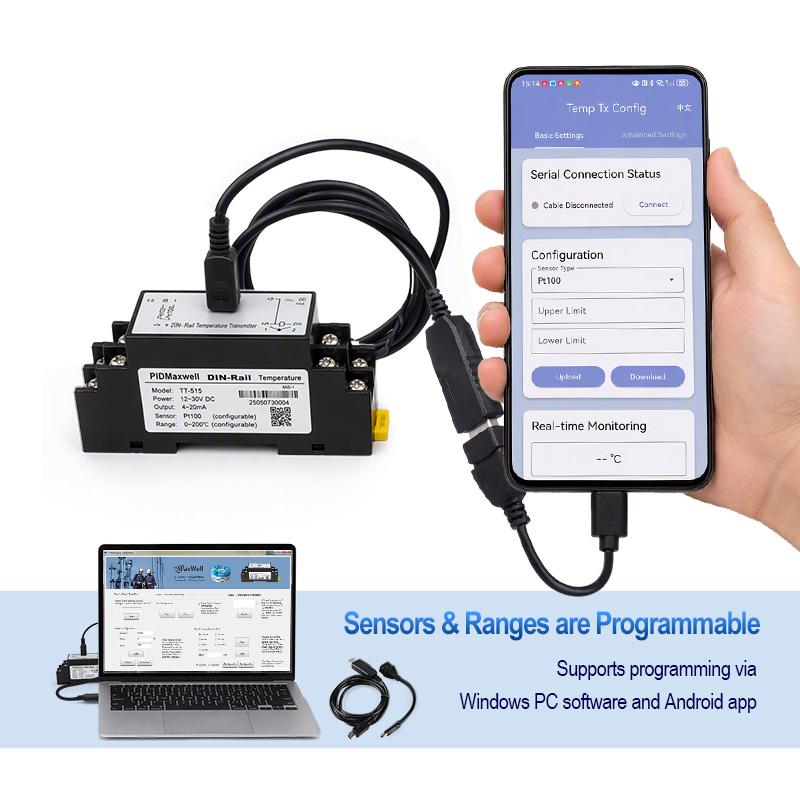

Smart Configuration – Programmable via PC software or Android smartphone app.

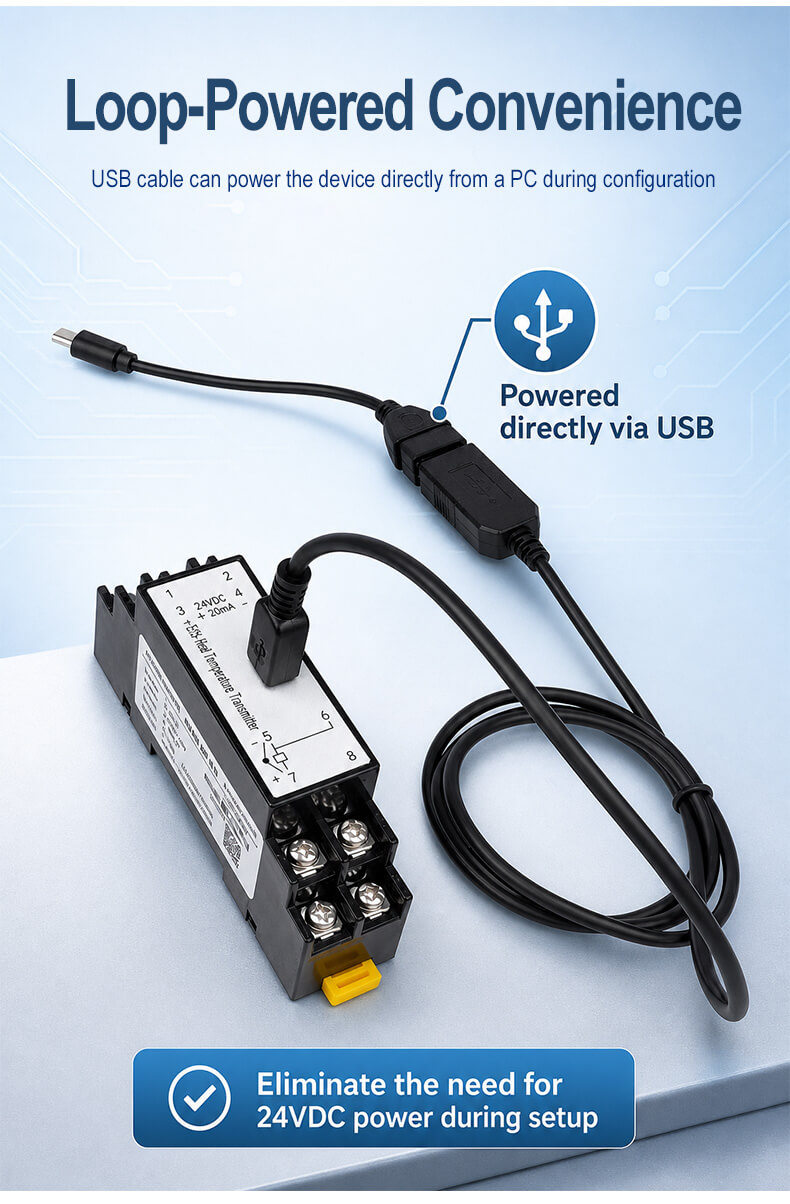

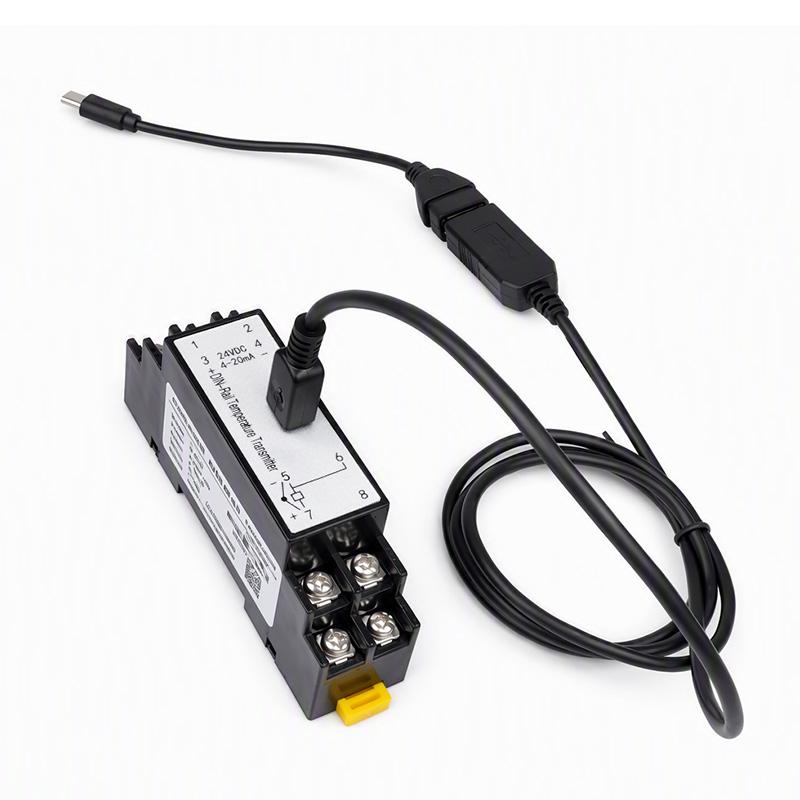

USB Powered Setup – Configure directly from your PC; no external 24VDC power supply required.
Industrial-Grade Protection – Surge protection and reverse connection protection for reliable operation.
Wide Operating Range – Works in temperatures from -40°C to +80°C.

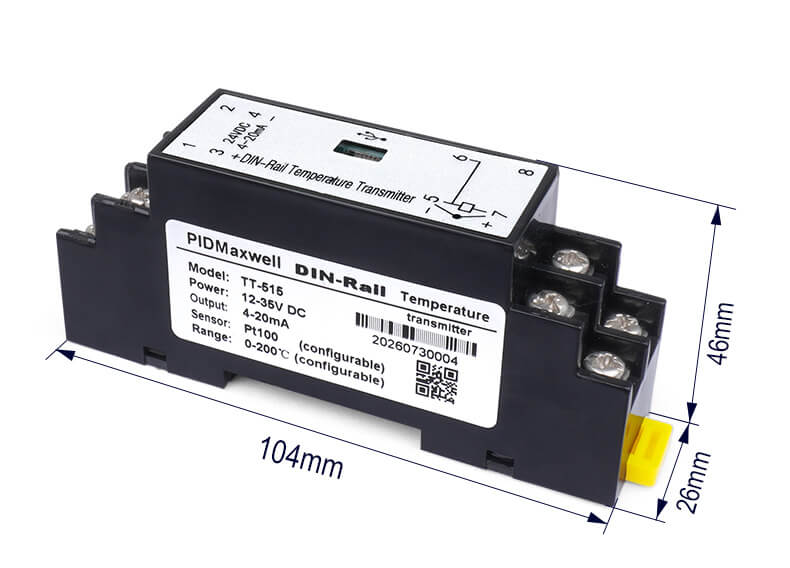

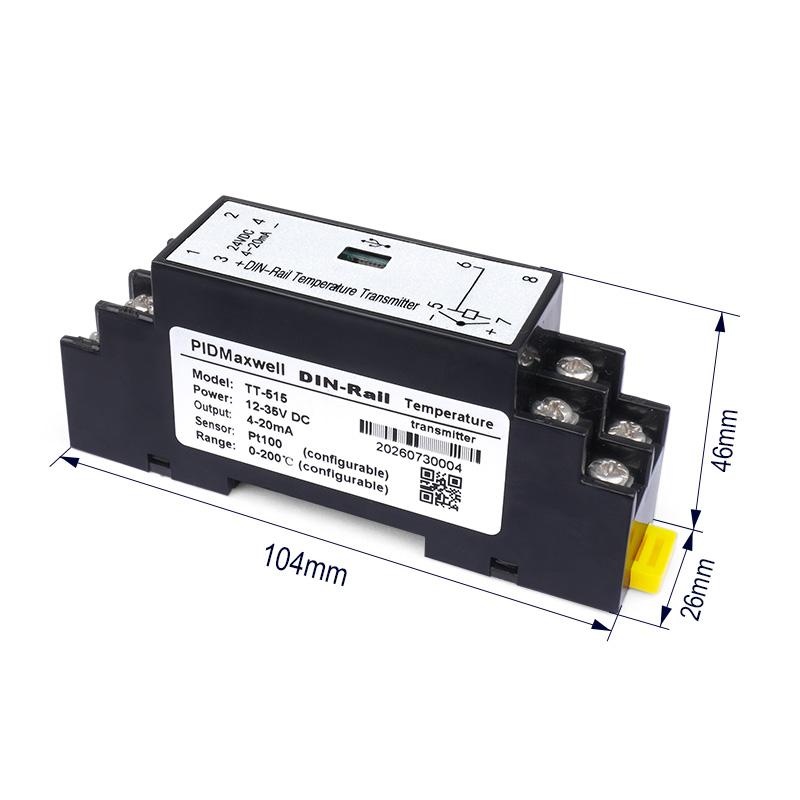

Compact DIN Rail Mounting – Space-saving design (104 × 26 × 46 mm), Form B connection box compatible.
Fast Response – 1ms to 90% of maximum output.
Stable Performance – Low temperature drift of 0.01% F.S/°C.

Ordering infromation

TT-515 --- 4-20mA output(programmable via PC or android smart phone)�

Click on below link to download catalog

Catalog-(TT-515 temperature transmitter)

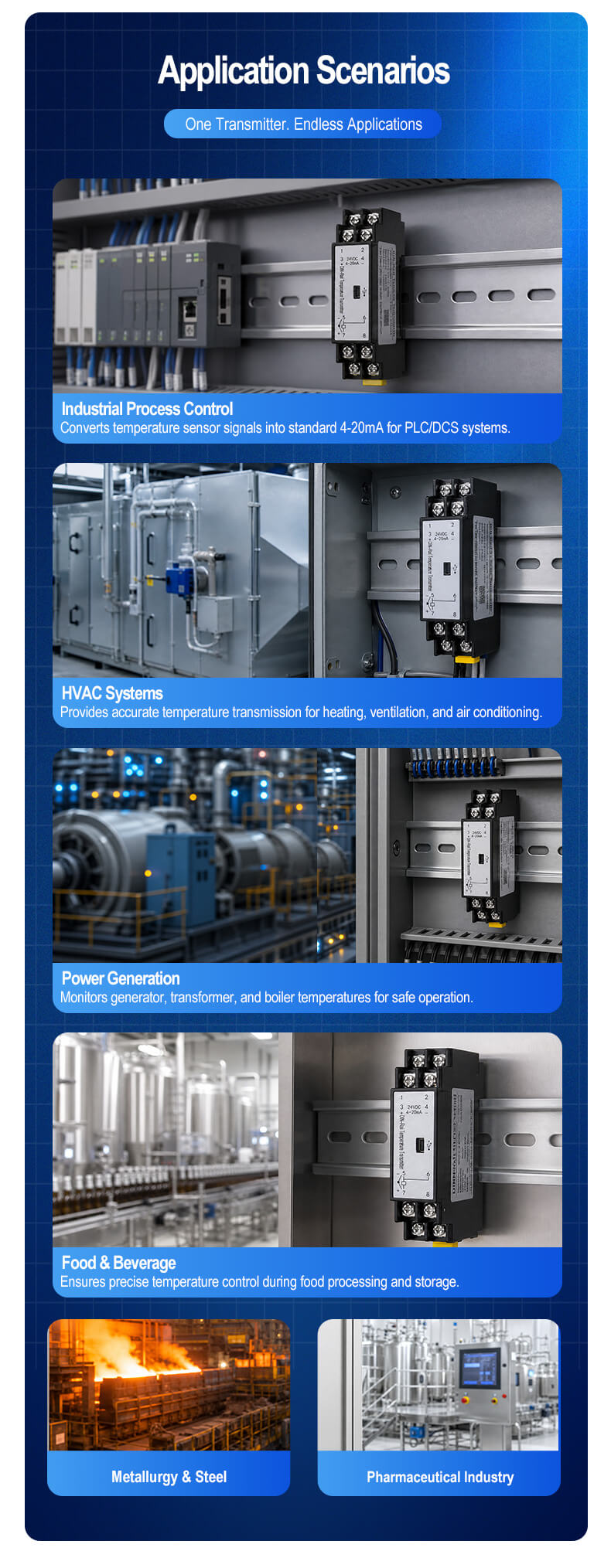

Application Scenarios

Industrial Process Control: Used in PLC/DCS systems to convert temperature sensor signals into standard 4-20mA signals for precise monitoring.
HVAC Systems: Monitoring and transmitting temperature data for heating, ventilation, and air conditioning systems.
Power Generation & Utilities: Temperature monitoring in generators, transformers, and boilers.
Food & Beverage Industry: Ensuring precise temperature control during processing and storage.
Chemical & Petrochemical: Safe temperature transmission in hazardous or demanding environments (with proper enclosure).
Water Treatment: Monitoring temperatures in various stages of water processing.
