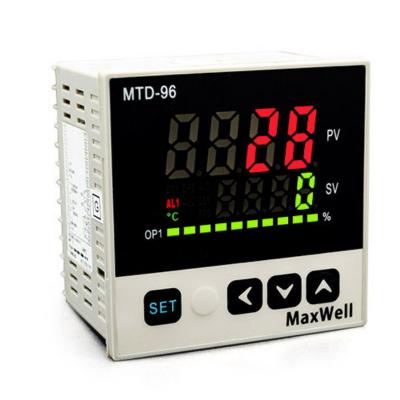

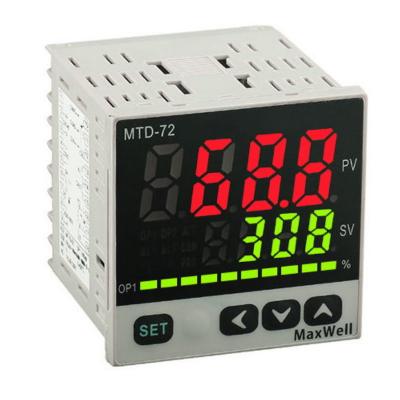

Output Field Selectable Temperature Controller

MTD series PID temperature controller is a cost effective pid controller offers basic features that will suit a lot of basic temperature control needs, works with TC/RTD inputs, and equipped with Relay and SSR drive output at the same time, the output is field selectable, if the actuator is a conventional relay or AC contractor, then choose the relay output, if the system has a solid state relay, then choose the SSR drive output, it's a great choice to have, maximum 2 alarms, working on wide power source from 85~265VAC or 24VDC. RS-485 modbus is avaiable on request.

  • Brand:

    MAXWELL
  • Item no.:

    MTD series
  • Payment:

    T.T, Credit Card, Paypal etc, to be negotiat
  • Color:

    Grey housing, black front facia
  • Goods stock:

    1000
  • Min order:

    1 PCS
  • Product weight:

    170 g-350 g
  • Lead Time:

    3-15 days depends on the order

Output Field Selectable Temperature Controller

-Key features

• Parameter reset(press shortcut key, all parameters will be reset to factory default)
• Loop break alarm(detect heater break)
• RUN/STOP function(Run or stop the output during operation)
• Modbus RS-485 RTU(Communication feature)
• C/F display selectable(Celcius or Fahrenheit display selectable)
• Bar graphic output display
• 0.3%F.S accuracy
• Maximum 2 alarms optional
• Output high/low limit configurable
• Decimal points for display
• Perfect drop-in replacment for Autonics TCN or Hangyoung NUX AX series

-Output field selectable
This controller comes with relay and SSR drive output, the most demanding output in the field is either relay or SSR drive, it's a great feature to have, when you have a relay or AC contractor to control, choose the relay output, or choose the SSR drive output when you have a Solid state relay to be controlled. below is a video tutorial on how to change between relay and SSR drive output



-Parameter reset function
End user might find the setting on a new controller quite challenging, often they will get lost when they navigate through various parameters, when that happens, a great feature comes in handy with this controller, a quick reset on all parameters and all the settings will go back to factory default settings, this happens the customer to find the way back.





Click on below link to download documents







Below is a video tutorial on how to reset the parameters to factory default setting





Below is a video tutorial on how to change the output between relay and SSR drive output
