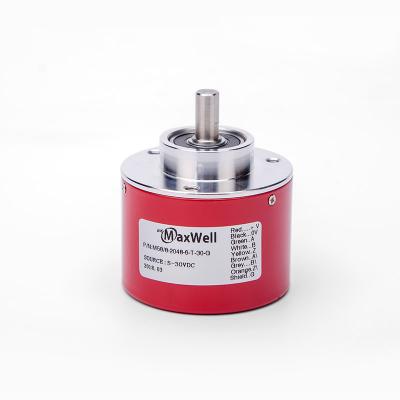

58mm push pull rotary pulse incremental abz encoder

-58mm housing solid shaft optical rotary encoder.
- 6mm, 8mm, 10mm shaft size, size of the shaft customizable.
 -External diameter 58mm, four different types of mounting arrangement.
- small size, heavy duty, light weight, easy for installation.
- Resolution up to 5400 PPR
- 5-30VDC source, please specify the voltage while order with us
-Aluminum housing, cable side entry or rear entry selectable
- Standard cable length is 2 meters, cable length can be custom made


  • Brand:

    MAXWELL
  • Item no.:

    M58SA,M58SB,M58SC,M58SD
  • Payment:

    T.T, Credit Card, Paypal etc, to be negotiate
  • Product origin:

    China
  • Color:

    aluminum housing
  • Min order:

    1
  • Product weight:

    0.16
  • Lead Time:

    3-15 days depends on the order
  • Ordering code:

    M58SA,M58SB,M58SC,M58SD

58mm push pull rotary pulse incremental abz encoder

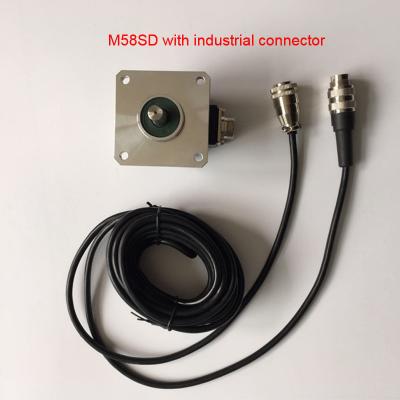

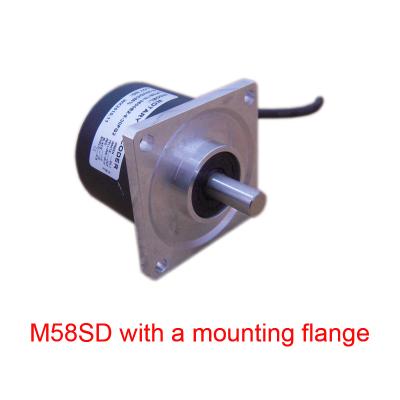

This is a incremental rotary encoder with 58mm housing diameter, comes with four different options, one of them with a square flange(M58SD), M58SA with 6mm shaft synchro, this series is used for all sorts of tooling machinery, machine molding, packing machine and general industrial machinery for customers’ greater usefulness and convenience

-58mm housing diameter, aluminum housing
-different mounting arrangement to suit different field application
-solid shaft type with shaft size at 6mm,8mm or 10mm
-various pulse options to maximum 5400 ppr
-3 phase A B Z or 6 phase A B Z A’ B’ Z’
-Push-pull, NPN/PNP open collector, Line driver, Push-pull with inverted signal output
-DC source, 5-30VDC, wide range , or 5VDC for line driver
-2 meters standard wire length, or extended wire length as per  your request
-Cable rear entry or side entry optional,
-Current consumption: 100mA(Load disconnected)
-Load current: 50mA maximum per channel,  20mA maximum per channel(line driver output)
-Frequency: 100KHZ
-Maximum permissible speed: 4000 rpm

-Shaft loading radial: 10N
-Shaft loading thrust: 20N
-Weight: 0.16KG
-Protection level: IP50
-Operation temperature range:-10-70
-Storage temperature range: :-30-85
-Vibration resistance:  50m/s,  10-65HZ, 1mm double amplitude for 2 hours each in X, Y and Z

Output circuits, wave forms, Connection diagram
The output circuits and wave forms are displayed below, the output is a quadrature output.




Dimensions and mounting arrangement


Please check carefully before order with us as different application would require different mounting arrangement.




Click on below link to download datasheet for M58SA,
M58SB,M58SC,M58SD encoder



M58SA,M58SB,M58SC,M58SD datasheet
