MW10E Single Phase SCR Power Regulator (Power Controller)

       Key Features

• High-Performance Core: Built-in high-performance, low-power 32-bit microprocessor.Wide Operating Voltage: Supports a broad main circuit input range of AC 110V–440V, making it compatible with global power standards.

• Versatile Analog Inputs: Dual control setpoints supporting 0-20mA / 4-20mA and 0-5V / 0-10VDC signals for flexible external control.

• Programmable Digital Inputs: Equipped with 2 programmable switch inputs for customized start/stop and multi-setpoint switching functions.

• Comprehensive Monitoring: LED display for real-time reading of input percentage, heatsink temperature, output voltage, and output current.

• Advanced Protection: Built-in protections against phase loss, overheat, overcurrent, and load disconnection to safeguard equipment and processes.

• Modular Scalability: Capable of supporting Profibus DP, Modbus TCP/IP, external feedback modules, and TRMS measurement via optional expansion modules.

  Technical Specifications

  Parameter	Specification
  Model	MW10E
  Phase Type	Single-Phase
  Main Circuit Input	AC 110V-440V
  Control Power Supply	AC 220V +/-10%
  Analog Inputs (AI1, AI2)	0-20mA / 4-20mA (AI1) 0-5V / 0-10VDC (AI2), Input impedance≧10kΩ
  Digital Inputs	SW1: Programmable (Default: Close = Start, Open = Stop) SW2: Programmable (Default: Open = AI1 active, Close = AI2 active)
  Relay Output (ON1, ON2)	3A 250VAC / 3A 35VDC (Programmable output)
  Communication Interfaces	RS485 (Modbus-RTU) Optional: Profibus DP, Modbus TCP/IP
  Communication Protocol	Modbus-RTU supported. Function codes: 03, 04, 06, 16
  Baud Rate	2400, 4800, 9600, 19200, 38400 bps
  Data Format	8n2, 8e, 8o1, 8n1
  Indicators	RUN (Green), FAULT (White), COM (Yellow)
  Protection Functions	Phase Loss, Overheat, Overcurrent, Load Disconnection
  Max Current Rating	Up to 1500A (depending on model)
  Operating Environment	Suitable for professional industrial environments.

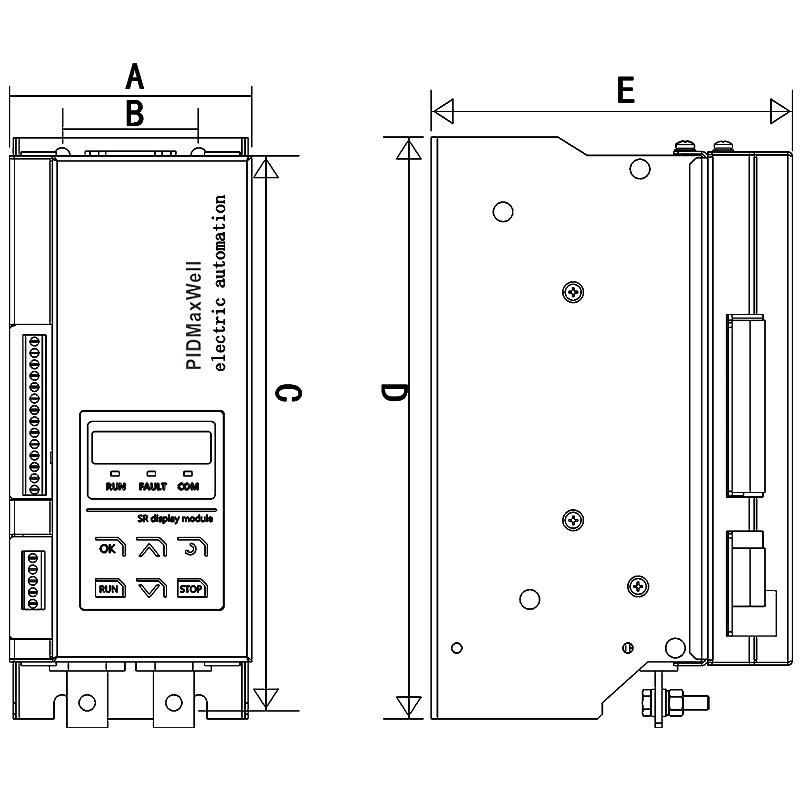

  Dimensions and Rating Specifications



  Rated Current (A)	A (mm)	B (mm)	C (mm)	D(mm)	E(mm)	Mounting Bolt
  10 - 170	106	60	240	255	158	M6
  200 - 320	135	80	280	295	207	M6
  450 - 600	200	120	460	480	225	M8
  800	185	120	460	480	225	M8
  1000	240	120	750	770	351	M8
  1500	250	170	976	998	363	M8

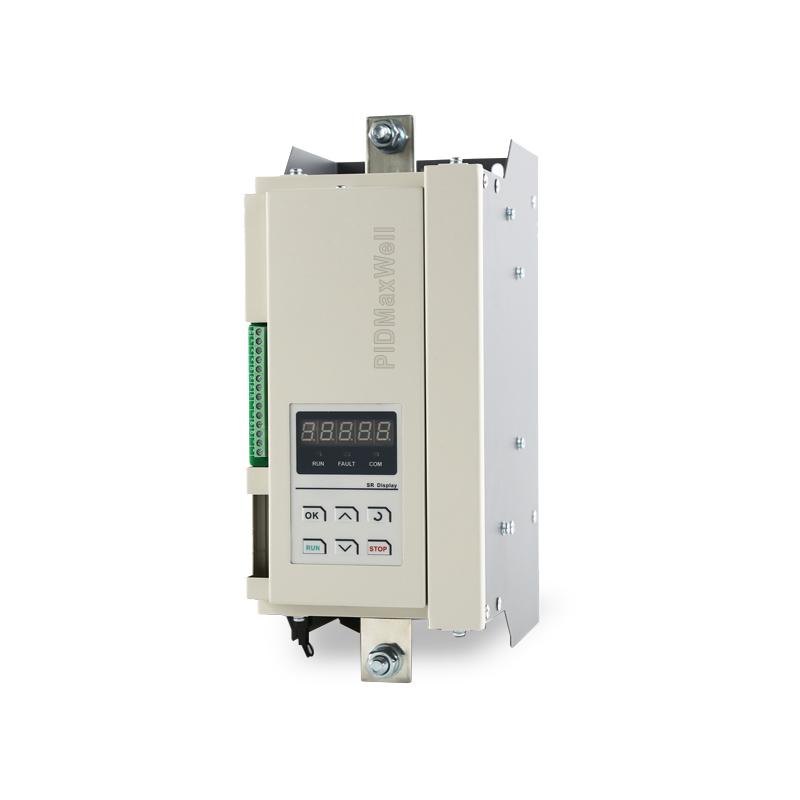

Display and Control Panel

• Display Type: 4-digit 7-segment LED.

• Cyclic Display: Input Percentage → Heatsink Temperature → Output Voltage → Output Current.

• Control Keys:

  • OK: Enter settings / Confirm modifications.

  • Return: Exit parameter menu / Return to main loop.

  • Up (▲): Increase data / Increase setpoint.

  • Down (▼): Decrease data / Decrease setpoint.

  • RUN: Start the device.

  • STOP: Stop the device.

• Note: An external display panel option (ED) is available for remote monitoring.

  Optional Modules (Expansion)

  The SR10E series can be extended with dedicated modules to meet specific application needs:

  • External Current/Voltage Feedback: For precise closed-loop regulation using external sensors.

  • Dual Analog Output (AO1, AO2): Configurable 0-20mA / 4-20mA outputs that can represent input percentage, output percentage, voltage, current, or power as feedback signals to DCS/PLC.

  • Load Protection Extension: Allows monitoring of real-time load resistance (F-018) with high/low trip alarms (F-142, F-143, F-144) to prevent process deviations.

  • Profibus DP / Modbus TCP/IP: Enables seamless integration into centralized SCADA or factory automation networks (supports 20 slots and auto baud rate up to 12M).

  Ordering Information (Model Code)

  MW10E - [Rated Current] - [Option]

  Options (Select one or more):

  Code	Description
  P	Profibus DP Communication Module
  C	Modbus TCP/IP Communication Module
  R	True RMS (TRMS) Measurement
  ED	External Display Panel
  EF	External Feedback Extension Module

  Example: MW10E - 600 - P denotes a 600A single-phase power regulator with Profibus DP communication.

  ---

  Note: For detailed parameter configurations (e.g., F-000 to F-108), PID tuning, or Modbus register mapping, please refer to the full MW10E technical manual or contact our support team.
