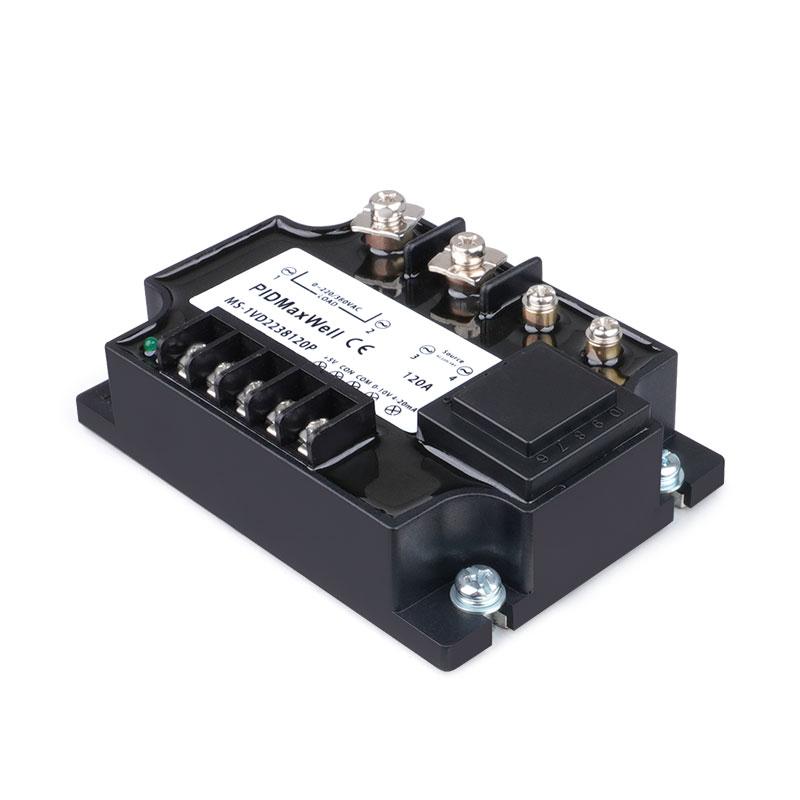

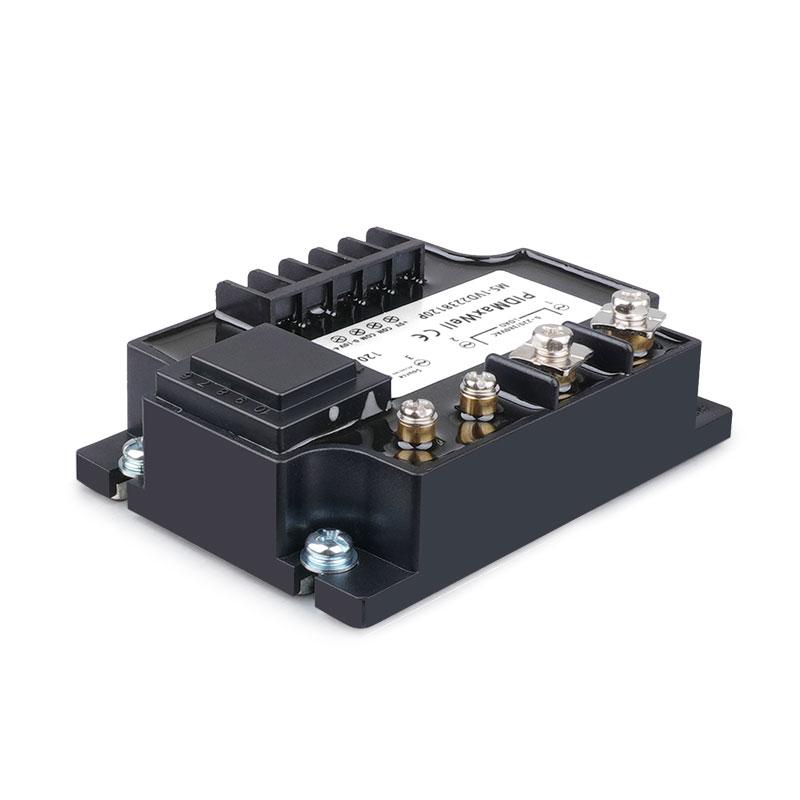

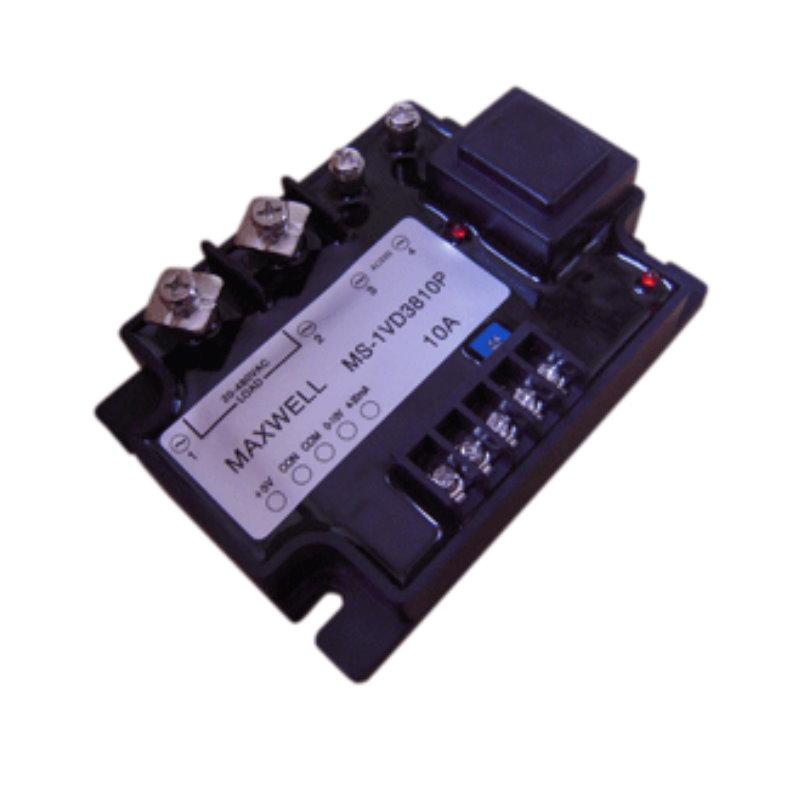

Multi input cost effective single phase isolated SCR

Multi-Input Compatibility

Simultaneously supports 0-5Vdc, 0-10Vdc, 4-20mA, and 2-10K potentiometer inputs, sharing a common negative terminal for ultimate flexibility.

High-Accuracy Phase Angle Control

Utilizes phase angle firing mode to deliver smooth, stepless, and highly accurate power regulation across the full load range.

Optical Isolation

Full optical isolation between the control input and the high-voltage power output ensures superior safety and EMI immunity.

Built-in Surge Protection

Integrated buffer (RC snubber) circuit protects the SCR from voltage spikes and transient surges, extending service life.

Integrated Soft Start

Built-in soft start functionality prevents high inrush currents, extending the lifespan of both the regulator and the connected load.

Visual Process Indication

Intuitive LED indicators for power supply status and input/output signal strength; brightness varies proportionally with signal level.

Wide Current Range

Available in 8 current ratings from 10A up to 200A, accommodating a vast array of industrial heating and power control applications.

Robust & Safe Construction

Black fire-retardant housing with resin sealing, designed for secure panel mounting with reliable thermal management via external heatsink.

Product Category

Single-Phase Isolated SCR Power Regulator

Load Voltage Range

0 ~ 220Vac or 0 ~ 380Vac (50/60Hz)

Load Current Options

10A / 25A / 40A / 60A / 80A / 100A / 120A / 200A

Control Signal Inputs

0-5Vdc, 0-10Vdc, 4-20mA, 2-10K Potentiometer (Supported simultaneously)

Control Mode

Phase Angle Firing (Phase Angle Control)

Isolation Method

Optical Isolation (Input / Output)

Soft Start

Built-in soft start circuit

Surge Protection

Built-in internal buffer / RC snubber circuit

LED Indicators

Power supply LED; Input/Output intensity LED (brightness ∝ signal level)

Housing Material

Black fire-retardant plastic with resin seal

Mounting Method

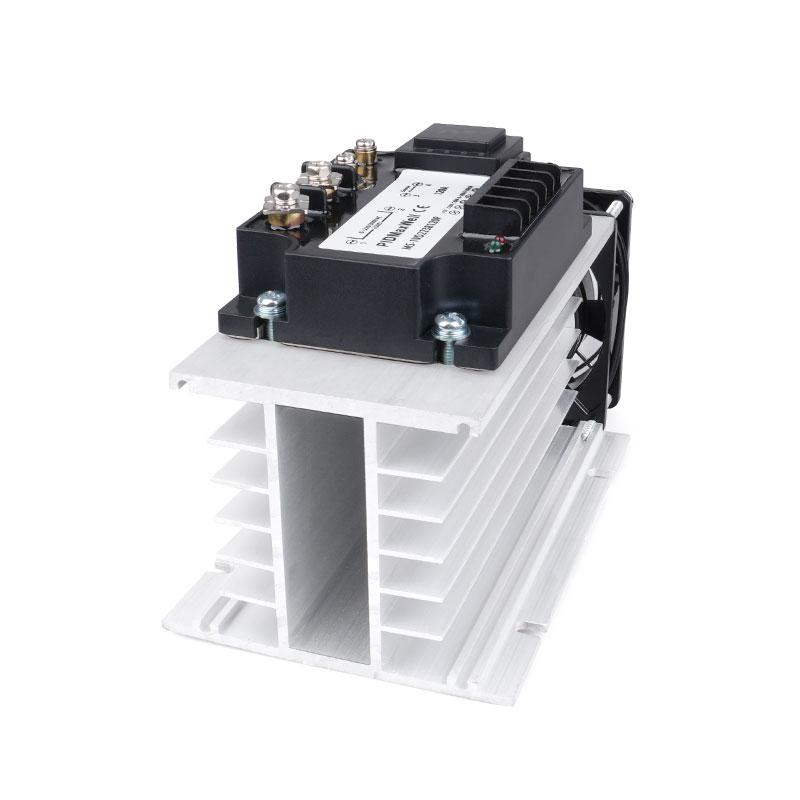

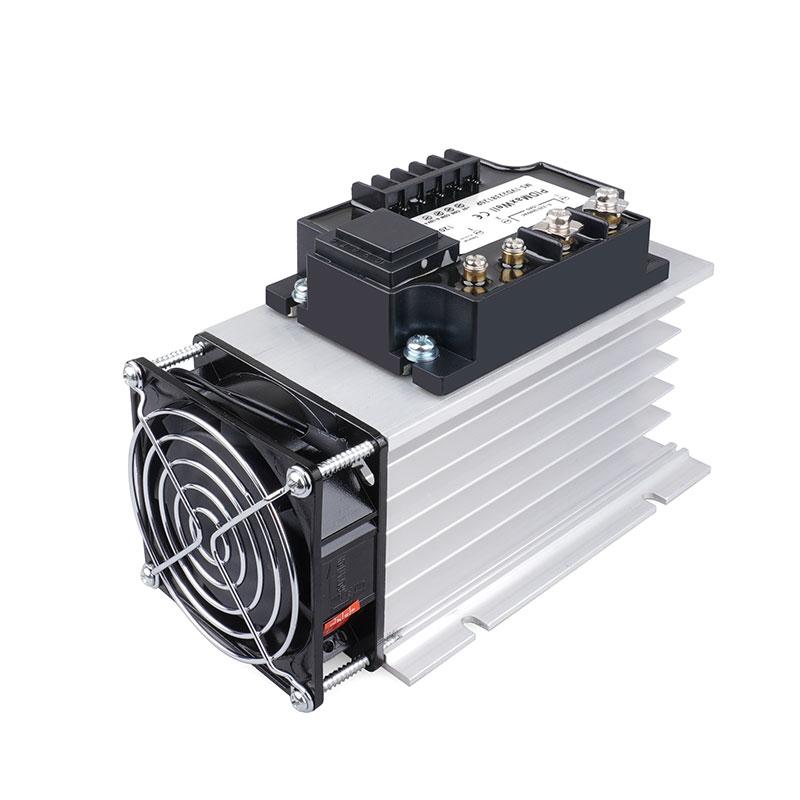

Panel mount (External heatsink required, sold separately)

Load Compatibility

Resistive loads (heaters, lamps, etc.); suitable for very small inductive loads

Certification

CE

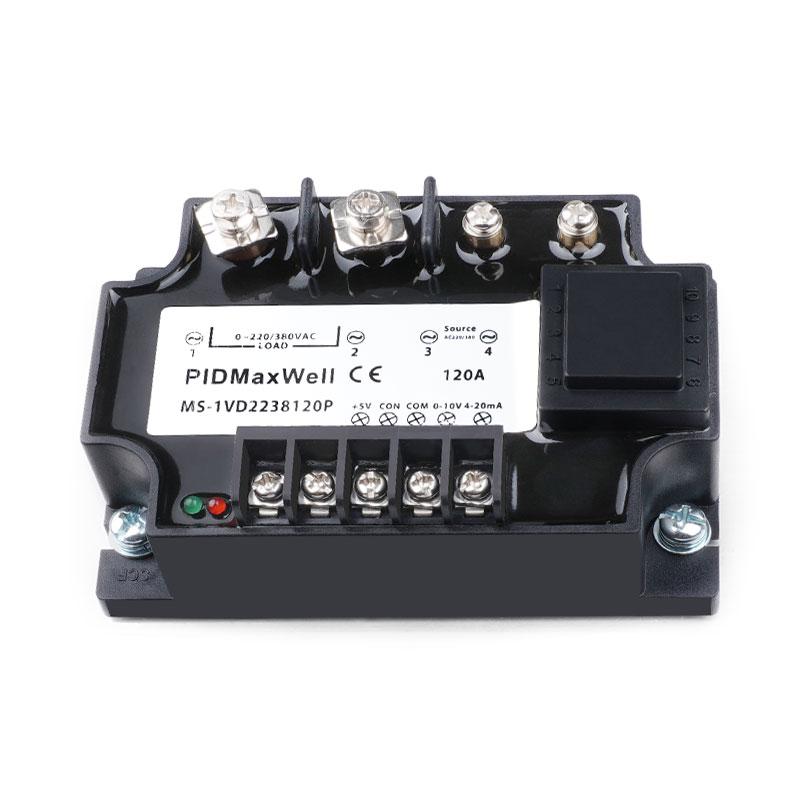

Terminal

Label / Function

Description

1 (Top)

Input/Output Indicator LED

Brightness represents signal level; brighter = higher input/output value

2 (Top)

Power Supply Indicator LED

Lights on when 220Vac or 380Vac power is fed to the unit

3 (Bottom)

+  Terminal (4-20mA)

Positive terminal for 4-20mA current loop input

4 (Bottom)

+  Terminal (0-10Vdc)

Positive terminal for 0-10Vdc analog voltage input

5 (Bottom)

–  COM Terminal

Shared negative terminal for 0-10V, 0-5V, and 4-20mA inputs

6 (Bottom)

+  Terminal (0-5Vdc)

Positive terminal for 0-5Vdc analog voltage input

7 (Bottom)

+5Vdc Internal Source

Internal +5Vdc power source for 2-10K potentiometer input
