GMAX TDD-220T40A TDD-220T75A TDD-220T120A TDD-220T150A TDD-220T200A(TDD-220T)

● Single phase high accuracy SCR● Support all kinds of analog signal● 220Vac or 380Vac load● From 40 amps up to 200 amps● Phase angle firing control

● Single phase high accuracy SCR● 0-10V/4-20mA/0-5V/Potentiometer input● 220Vac or 380Vac load● From 40 amps up to 200 amps● Phase angle firing control

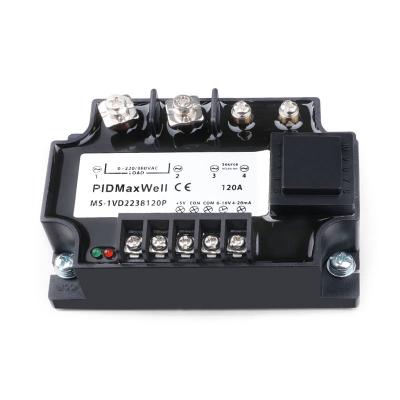

  The Maxwell MS-1VD2238 Series is a highly cost-effective, high-accuracy single-phase isolated SCR power regulator designed for precise phase angle control. Featuring a versatile multi-input design, this advanced thyristor module simultaneously supports 0-5Vdc, 0-10Vdc, 4-20mA, and potentiometer control signals without requiring hardware modifications. Engineered with optical isolation between the input and output circuits, it ensures maximum operational safety and signal integrity. Available in a wide current range from 10A to 200A for both 220Vac and 380Vac loads, the MS-1VD2238 series incorporates a built-in soft start circuit and an internal buffer (snubber) to protect against voltage surges. Housed in a durable, fire-retardant enclosure with resin sealing, this panel-mounted regulator is the ideal solution for controlling resistive heating elements in demanding industrial environments.

● Potentiometer input SCR● 500K, 1000K potentiometer● 24~480Vac load● From 10 amps up to 120 amps● 500K for 220Vac● 1000K for 480Vac

● Analog input single phase SCR● 0-10Vdc, 4-20mA input● 220VAC, 380Vac load● From 10 amps up to 120 amps● Phase firing control mode

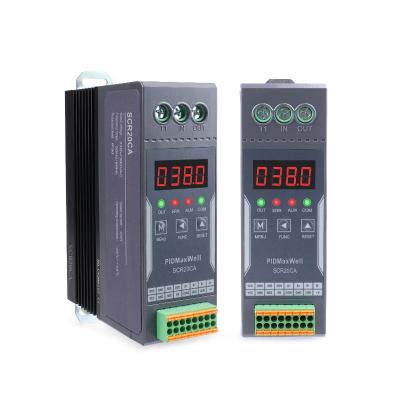

The Maxwell SCR20CA Series is a highly integrated, single-phase AC power controller designed for advanced feedback control and precise voltage regulation. Built around a high-power thyristor (SCR) chip, this compact unit incorporates a digital phase-shift control circuit alongside highly accurate output voltage and current measurement systems. A standout feature of the SCR20CA is its multi-functionality: users can seamlessly switch between constant voltage, constant current, and constant power control modes directly via the digital panel or communication interface. Equipped with true RMS sampling and a fully isolated measurement system, it ensures safe and reliable operation. With built-in RS-485 Modbus RTU communication, pluggable control terminals, and comprehensive protection mechanisms, the SCR20CA is an ideal solution for modern, automated industrial heating and power control applications.

The Maxwell SCR-480H Series is a compact and highly reliable single-phase AC voltage regulator module designed for precise phase angle control. Utilizing a 0-10VDC analog input signal, this module allows for smooth, stepless adjustment of AC load voltage up to 480VAC. Engineered with advanced zero-crossing detection and optocoupler isolation, it ensures safe and interference-free operation between the low-voltage control circuit and the high-voltage power circuit. Available in a wide range of current ratings from 25A to 120A, the SCR-480H features a robust, space-saving design with pluggable terminal blocks for effortless wiring and maintenance. When paired with Maxwell's dedicated heatsinks, it delivers exceptional thermal performance, making it an ideal open-loop power control solution for both resistive and inductive industrial loads.

The MKD2 Series is a single-phase, dual-channel, DC-controlled AC solid state relay (SSR) designed for reliable, silent switching of resistive and inductive AC loads in industrial and commercial control systems. Each unit houses two independent switching channels within a single compact black housing, enabling two separate AC loads to be controlled simultaneously from a single device — saving panel space and wiring time compared to installing two separate SSRs. The MKD2 accepts a DC control voltage of 4–32 VDC, making it directly compatible with PLC outputs, microcontroller I/O, and standard industrial control signals. The AC load side supports voltages from 24 to 480 VAC, covering 110 V, 220 V, 380 V, and 480 V systems worldwide. Load current ratings of 25 A, 40 A, 60 A, and 80 A are available, with all variants sharing the same physical footprint for easy interchangeability. Zero-crossing trigger technology ensures that switching occurs at the natural zero-crossing point of the AC waveform, minimising electrical interference (EMI) and extending the service life of both the relay and the connected load. Individual LED status indicators for each channel provide instant visual confirmation of relay state, simplifying commissioning and fault-finding. The unit is CE certified and constructed from fire-retardant ABS with a dielectric strength of 2500 Vrms between input, output, and base.
