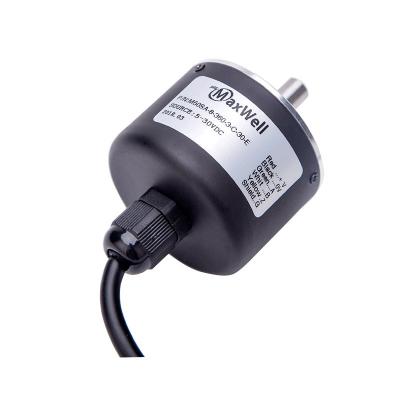

50mm incremental optical solid shaft 1000 ppr rotary encoder

-50mm solid shaft optical rotary encoder
-Can be used with Arduino for various projects
-External diameter 50mm, similar to Autonics E50S
-small size, heavy duty, light weight, easy for installation
-Resolution up to 5400 PPR
-8mm shaft size, other shaft size can be custom made
-5-30VDC source, please specify the voltage while order with us
-Aluminum housing, cable side entry or rear entry selectable
-Standard cable length is 2 meters, cable length can be custom made

  • Brand:

    MAXWELL
  • Item no.:

    M50SA
  • Payment:

    T.T, Credit Card, Paypal etc, to be negotiate
  • Product origin:

    China
  • Color:

    aluminum housing
  • Min order:

    1
  • Product weight:

    0.16
  • Lead Time:

    3-15 days depends on the order

50mm incremental optical solid shaft 1000 ppr rotary encoder

-50mm housing diameter, aluminum housing
-different mounting arrangement to suit different field application
-solid shaft type with shaft size at 8mm
-various pulse options to maximum 5400 ppr
-3 phase A B Z or 6 phase A B Z A’ B’ Z’
-Push-pull, NPN/PNP open collector, Line driver, Push-pull with inverted signal output
-DC source, 5-30VDC, wide range , or 5VDC for line driver
-2 meters standard wire length, or extended wire length as per  your request
-Cable rear entry or side entry optional,
-Current consumption: 100mA(Load disconnected)
-Load current: 50mA maximum per channel,  20mA maximum per channel(line driver output)
-Frequency: 100KHZ
-Maximum permissible speed: 4000 rpm

-Shaft loading radial: 10N
-Shaft loading thrust: 20N
-Weight: 0.16KG
-Protection level: IP50
-Operation temperature range:-10-70
-Storage temperature range: :-30-85
-Vibration resistance:  50m/s,  10-65HZ, 1mm double amplitude for 2 hours each in X, Y and Z



Output circuits, wave forms, Connection diagram
The output circuits and wave forms are displayed below, the output is a quadrature output.




Dimensions and mounting arrangement


Accessories like mounting bracket, aluminum couplings, plastic couplings available, check the images for details

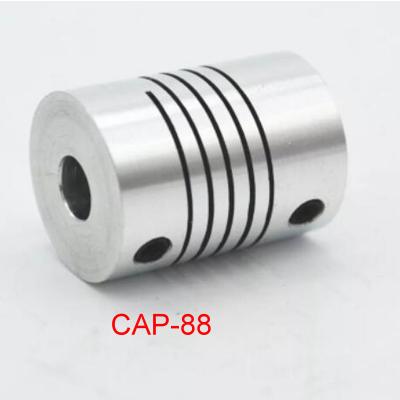

CAP-88---Alumimum coupling, 8mm to 8mm

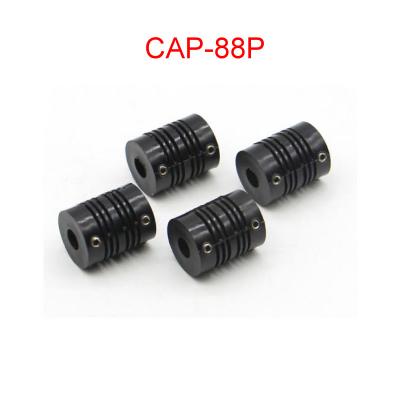

CAP-88P---Plastic coupling, 8mm to 8mm

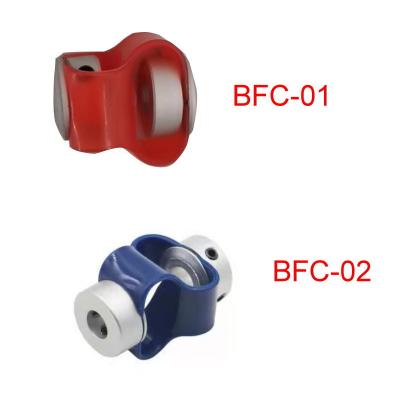

BFC-01---Butterfly style coupling
BFC-02---Butterfly style coupling

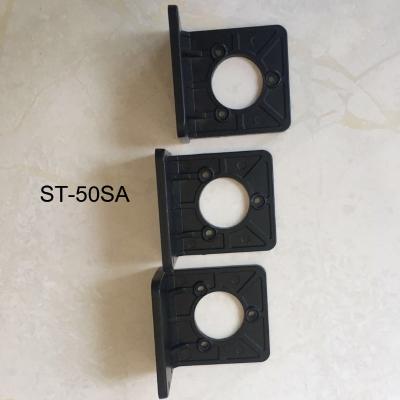

ST-50SA---Metal mounting bracket



Click on below link to download datasheet for M50SA
 encoder













Related products
38mm solid shaft rotary encoder

M38SA M38SB M38SC

38mm incremental optical arduino solid shaft rotary encoder
- 38mm solid shaft optical rotary encoder- Can be used with Arduino for various projects- External diameter 38mm- small size, heavy duty, light weight, easy for installation- Resolution up to 3600 PPR - 6mm shaft size- 5-30VDC source, please specify the voltage while order with us- Aluminum housing, cable side entry or rear entry selectable- Standard cable length is 2 meters, cable length can be custom made
view more
Rotary encoder 25mm

M25SA

25mm diameter solid shaft encoder
● Incremental rotary encoder● 25mm housing diameter● 4mm solid shaft● Maximum 1200 PPR● Push-pull, NPN,PNP, Line driver, voltage output● Cable rear entry, cable length customizable
view more
solid shaft rotary encoder

M30SA

30mm incremental ppr abz solid shaft rotary encoder
  - 30mm solid shaft optical rotary encoder- External diameter 30m- small size, heavy duty, light weight, easy for installation- Resolution up to 1024 PPR - 4mm shaft size- 5-30VDC source- Aluminum housing
view more
40mm solid shaft rotary encoder

M40SA M40SB

40mm incremental optical solid shaft 360 ppr rotary encoder
- 40mm solid shaft optical rotary encoder- Can be used with Arduino for various projects- External diameter 40mm- small size, heavy duty, light weight, easy for installation- Resolution up to 3600 PPR- 6mm shaft size- 5-30VDC source, please specify the voltage while order with us- Aluminum housing, cable side entry or rear entry selectable- Standard cable length is 2 meters, cable length can be custom made
view more
58mm solid shaft rotary encoder

M58SA,M58SB,M58SC,M58SD

58mm push pull rotary pulse incremental abz encoder
-58mm housing solid shaft optical rotary encoder.- 6mm, 8mm, 10mm shaft size, size of the shaft customizable. -External diameter 58mm, four different types of mounting arrangement.- small size, heavy duty, light weight, easy for installation.- Resolution up to 5400 PPR- 5-30VDC source, please specify the voltage while order with us-Aluminum housing, cable side entry or rear entry selectable - Standard cable length is 2 meters, cable length can be custom made
view more
68mm solid shaft rotary encoder with flange

M68SA,M68SB

68mm rotary encoder 600 ppr raspberry pi incremental encoder
- 68mm housing solid shaft optical rotary encoder- 10mm, 15mm  shaft size, size of the shaft customizable- External diameter 68mm, two different types of mounting arrangement.- heavy duty, light weight, easy for installation, great for CNC machine, elevators etc- Resolution up to 5400 PPR - 5-30VDC source, please specify the voltage while order with us- Aluminum housing, cable side entry or rear entry selectableZ- Standard cable length is 2 meters, cable length can be custom made
view more
58mm solid shaft rotary encoder

M58SA,M58SB,M58SC,M58SD

58mm push pull rotary pulse incremental abz encoder
-58mm housing solid shaft optical rotary encoder.- 6mm, 8mm, 10mm shaft size, size of the shaft customizable. -External diameter 58mm, four different types of mounting arrangement.- small size, heavy duty, light weight, easy for installation.- Resolution up to 5400 PPR- 5-30VDC source, please specify the voltage while order with us-Aluminum housing, cable side entry or rear entry selectable - Standard cable length is 2 meters, cable length can be custom made
view more
Heatsink for SSR

MW-DT-50

Heatsink for 60A single phase SSR(MW-DT-50)
● MW-DT-50● Size:50mm*100mm*96mm● Heatsink for 60A SSR● Panel mount and Din rail mount with clamps● Aluminum heatsink● For single phase SSR
view more
