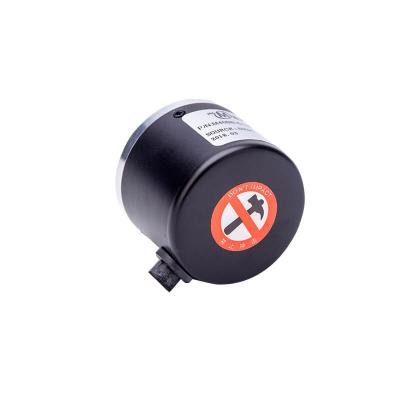

40mm incremental optical solid shaft 360 ppr rotary encoder

- 40mm solid shaft optical rotary encoder
- Can be used with Arduino for various projects
- External diameter 40mm
- small size, heavy duty, light weight, easy for installation
- Resolution up to 3600 PPR
- 6mm shaft size
- 5-30VDC source, please specify the voltage while order with us
- Aluminum housing, cable side entry or rear entry selectable
- Standard cable length is 2 meters, cable length can be custom made











  • Brand:

    MAXWELL
  • Item no.:

    M40SA M40SB
  • Payment:

    T.T, Credit Card, Paypal etc, to be negotiate
  • Product origin:

    China
  • Color:

    aluminum housing
  • Min order:

    1
  • Product weight:

    0.16
  • Lead Time:

    3-15 days depends on the order

40mm incremental optical solid shaft 360 ppr rotary encoder

-40mm housing diameter, aluminum housing
-different mounting arrangement to suit different field application
-solid shaft type with shaft size at 6mm
-various pulse options to maximum 3600 ppr
-3 phase A B Z or 6 phase A B Z A’ B’ Z’
-Push-pull, NPN/PNP open collector, Line driver, Push-pull with inverted signal output
-DC source, 5-30VDC, wide range , or 5VDC for line driver
-2 meters standard wire length, or extended wire length as per  your request
-Cable rear entry or side entry optional
-Current consumption: 100mA(Load disconnected)
-Load current: 50mA maximum per channel,  20mA maximum per channel(line driver output)
-Frequency: 100KHZ
-Maximum permissible speed: 4000 rpm



-Shaft loading radial: 10N
-Shaft loading thrust: 20N
-Weight: 0.16KG
-Protection level: IP50
-Operation temperature range:-10-70
-Storage temperature range: :-30-85
-Vibration resistance:  50m/s,  10-65HZ, 1mm double amplitude for 2 hours each in X, Y and Z


Output circuits, wave forms, Connection diagram
The output circuits and wave forms are displayed below, the output is a quadrature output.




Dimensions and mounting arrangement





Click on below link to download datasheet for M40SA M40SB
 encoder
