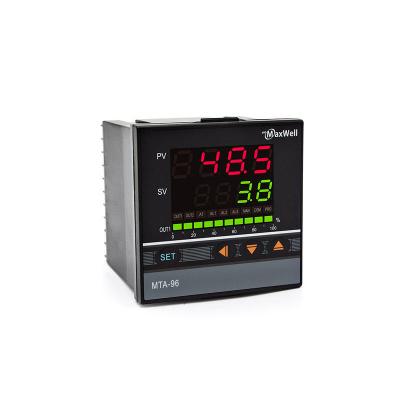

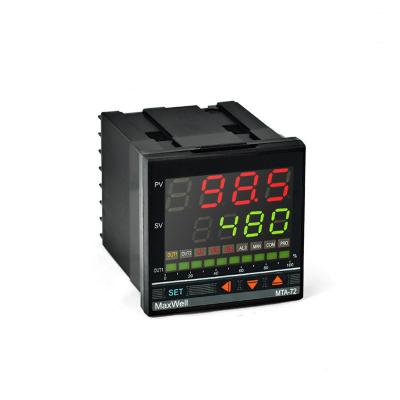

Standard PID auto-tuning Temperature Controller

MTA series PID temperature controller is a programmable pid temperature controller offers solutions for most of application, this controller works with Thermocouple, RTD(PT100) and Analog signal like 0-10VDC, 4-20mA etc, it's a true universal input controller which works with all inputs, Relay, SSR Drive output and analog outputs are optional upon order, add-on features like RS-485 and Process re-transmission is avaiable on request. Compatible with wide range of power source from 85~265Vac.

  • Item no.:

    MTA series
  • Payment:

    T.T, Credit Card, Paypal etc, to be negotiat
  • Color:

    Grey housing, black front facia
  • Goods stock:

    1000
  • Min order:

    1 PCS
  • Product weight:

    170 g-350 g
  • Lead Time:

    3-15 days depends on the order

Standard PID auto-tuning Temperature Controller

-Key features

● Soft-start for analog output
● Modbus RS-485 RTU
● C/F display selectable
● Bar graphic output display
● 0.3%F.S accuracy
● Maximum 2 alarms optional
● Output high/low limit configurable
● Various alarm mode configurable
● Decimal points
● Heating or cooling mode switchable
● CE comply

-Process value re-transmission
The process value can be re-transmitted as 4-20mA and singal can be feeded to other device like paperless recorder or PLC

-RS-485 Modbus communication
RS-485 modbus is avaiable on request with this pid regulator. Various communication baud rate configurable.


Click on below link to download Catalog, User manual and RS-485 registry table.



Below is a video tutorial on how to reset the parameters to factory default setting



Below is a video tutorial on how to change the output between relay and SSR drive output
