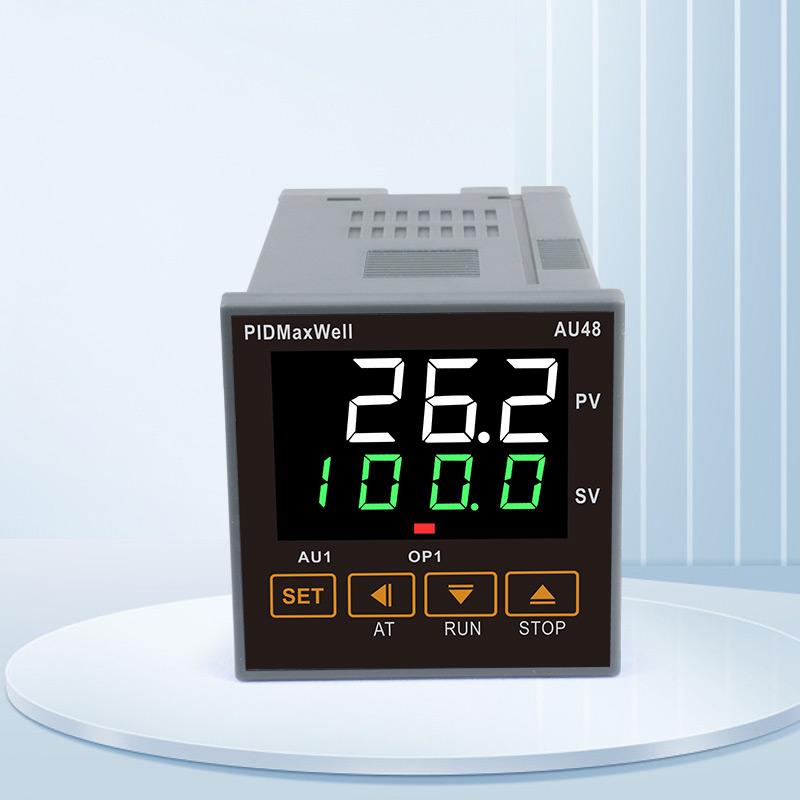

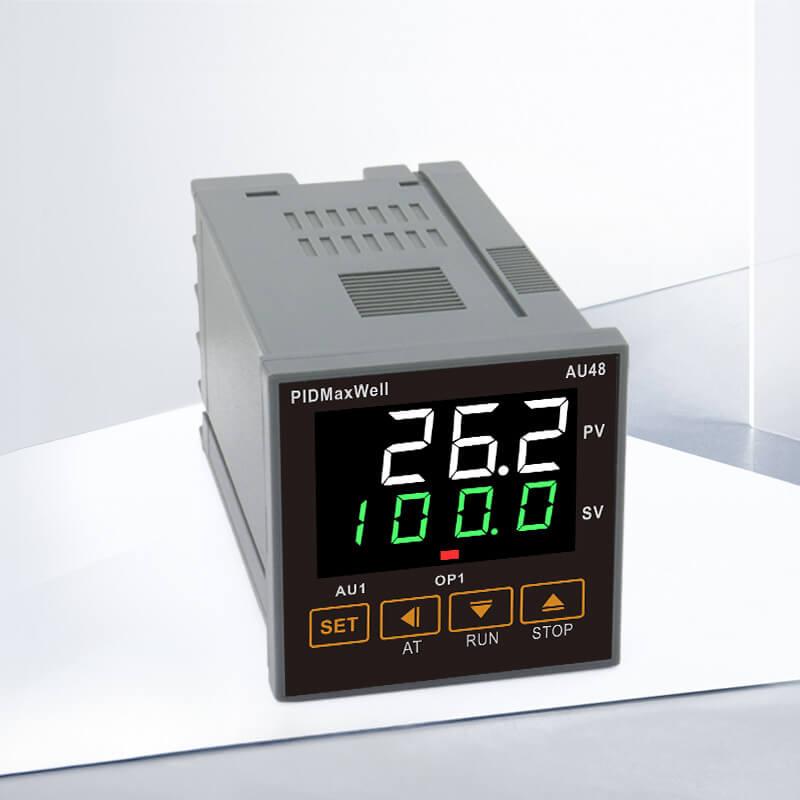

Universal input PID Process Controller

This is a 1/16 DIN 48mm*48mm powerful temperature controller, controller works with universal input, TC/RTD/Analog, it’s a true universal input controller, equipped with Relay and SSR Drive output which are two of most popular output, with the universal input and selectable output, this controller is accommodated to most of application, Carry 3 years warranty and with a signature white and green display, fully sealed housing, anti-corrosion, anti-dust and waterproof, fast sampling rate, this is a best choice for distributor and end

Brand:
PIDMaxWell
Item no.:
AU48
Payment:
T.T, Credit card, Paypal
Product origin:
Made in China
Color:
Grey housing, touch buttton
Goods stock:
1000
Min order:
1 PCS
Product weight:
170g
Lead Time:
3-7 days depends on the order
Ordering code:
AU48-05-21100A

Inquiry now

Universal input PID Process Controller with relay and SSR Drive output

-Key features

● Dual line 4 digits, 7 segments, LED display
● White and green display, makes the display stands out and highly visible from far away or even under direct sunlight.
● True universal TC/RTD/Analog input(0-10Vdc, 4-20mA, 0-5V, 2-10V, 0-20mA etc)
● Relay and SSR Drive output field selectable
● 1 alarm as standard feature(NO relay)
● NPID, APID, ON/OFF control mode selectable
● Excellent control performance without overshoot and undershoot
● Auto-tuning can be initiated through short-cut key
● 0.25% F.S accuracy, true accuracy without temperature drift.
● 1/16 DIN size 48mm*48mm
● Celsius or Fahrenheit display selectable
● 0.1maximum resolution for TC/RTD input, 0.001 maximum resolution for analog input
● 100-240Vac or 24VDC/AC source
● 250ms sampling rate, ideal for accurate temperature control as well other process such as pressure control, very limited overshoot and undershoot.
● Touch button, feedback beep sound when you tap on the buttons this is a very useful features for user to track the operation not only visually, but also auditory.
● RUN/STOP function from local controller
● Ultra low power consumption less than < 2W, very limited internal heated generated during operation
● Operates at extremely wide ambient range, -30℃~75℃ degree
● End user can assign 8 field parameters for easy access and lock other parameter against of unauthorized access and modification
● 3 years warranty, CE and Rohs compliant
● Dust proof, water splash proof, corrosion proof
● Fully sealed housing for greater protection

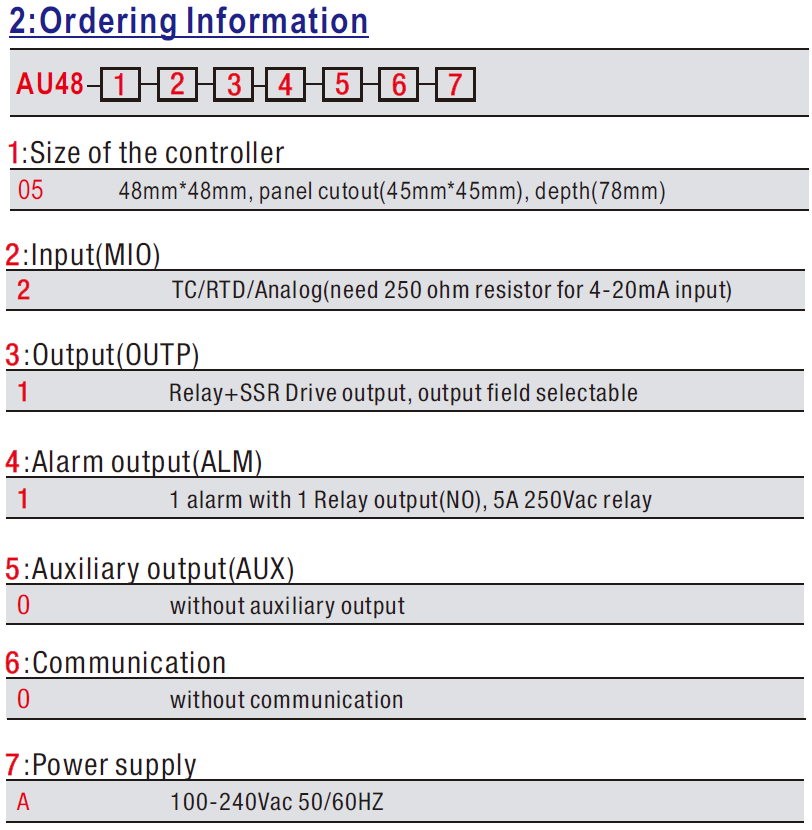

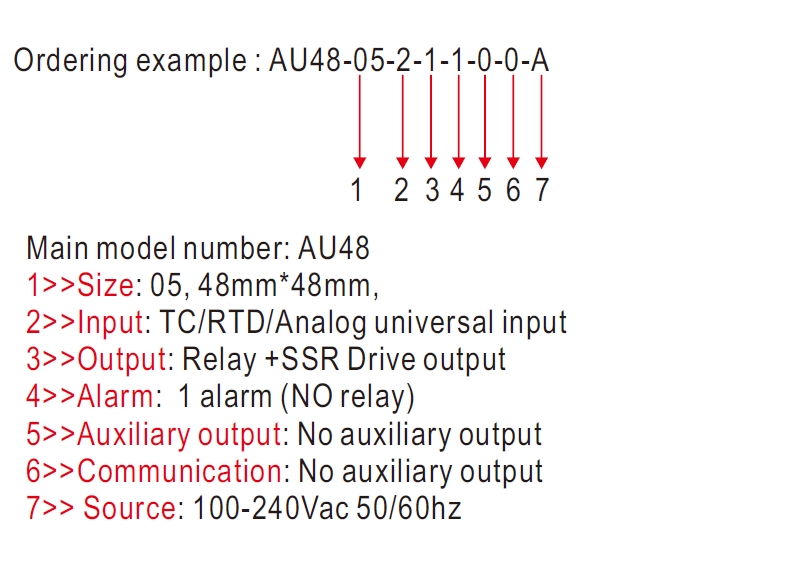

Ordering example : AU48-05-21100A, AU48,
48mm*48mm,
TC/RTD analog input,
Relay+SSR Drive output,
1 alarm
Source: 85~265Vac

Click on below link to download catalog and user manual

AU48 quick start menu

1)Overview of ME65 series controller,Fully sealed housing, touch button and low consumption PID Temperature controller

2)LED display of ME65 PID contorller

What kind of inputs are compatible with this controller ?

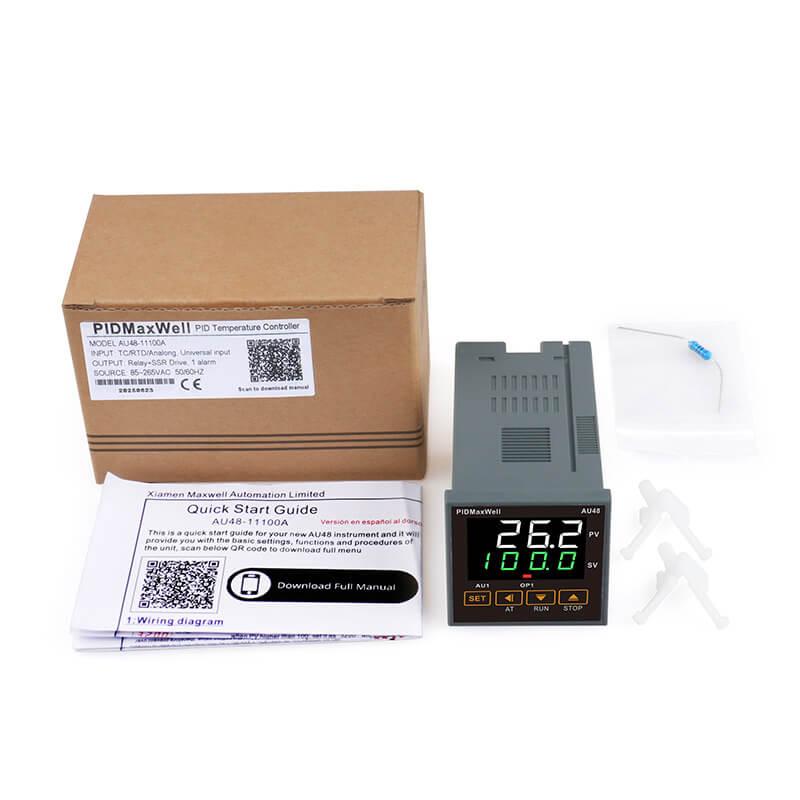

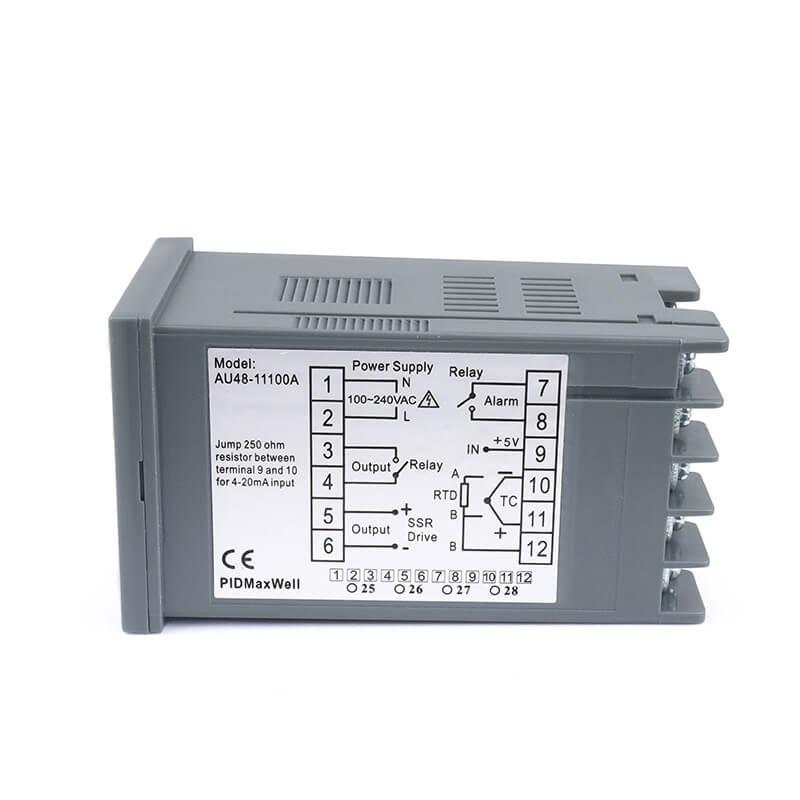

This controller works with TC/RTD and analog inputs, it’s a true universal input controller, a 250 ohm resistor is included in the package, resistor needs to be crossed between terminal 9 and 10 if the input is mA input, please refer to our user manual for detailed information
What are the output options?
Controller has built-in relay + SSR Drive output, end user can select the output based on the field application
Any certs does this controller have ?
This controller is CE and RoHs compatible
What is the warranty period of this controller?
3 years warranty against manufacturing defective
What is the protection degree for this controller
This controller is IP54 protection, anti-corrosion, dust proof, water splash proof.
Any certs does this controller have ?
This controller is CE and RoHs compatible
What is the sampling rate of this controller
250ms sampling rate, controller can be used in heating or cooling application. Or can be used for pressure control
How many alarms does this controller have ?
This controller comes with 1 alarm, Relay output , Normally open relay
What are the available alarm modes for this controller ?
Deviation high alarm, deviation low alarm, process high alram and process low alarm.
What is the access password for this controller ?
The password for this controller is LCK=808, you are able to access all parameters if you key-in 808 as the password
Can we switch the controller from PID control mode to ON/OFF control mode ?
Yes, this controller avaialble with different control mode, NPID, APID and ON/OFF control mode. by configuring the parameter Ctrl, the control mode can be changed to different mode
