Touch Button Low cost PID Temperature Controller

Simple but accurate 3 digits display, for application less than 1000 degree C or F, Thermocouple and RTD input to accommodate most of applications, touch button which do not wear out over time, perfect for demanding situation, advanced control algorithm to achieve perfect control accuracy with limited overshoot and undershoot, 3 years warranty, relay and SSR Drive output on the same device, large and high visibility LED display, two options on the display, white+green or red +yellow, Simple and easy to use is the concept of this controller, very limited parameters to reduce the workload on configuration. CE and ROHS compliant.

Brand:
PIDMaxWell
Item no.:
ME65 Series

Inquiry now

Touch Button PID Temperature Controller

-Key features

● Very easy to operate, limited parameters, complicated features is removed and suitable for application less than 1000 degree C or F.
● White+green or red+yellow dispaly optional, makes the dispaly stands out and highly visible from far away and under direct sunlight.
● Relay+SSR Drive output field selectable.
● PID and ON/OFF control mode selectable.
● 0.3% F.S accuracy, true accuracy without temperature drift.
● Very small temperature drift,<0.03%FS/0C
● 85~265Vac or 24vdc/ac source
● Dual line 3 digits display, range 0~999.
● Celcius or Fahrenheit display selectable
● 250ms sampling rate, ideal for accurate temperature control, very limited overshoot and undershoot.
● Touch button, feedback beep sound when you tap on the buttons this is a very useful features for user to track the operation not only visually, but aslo auditory.
● RUN/STOP function from local controller
● Ultra low power consumption less than < 5W
● Operates at extremely wide ambient range, -30℃~75℃ degree
● 3 years warranty, CE and Rohs compliant
● Dust proof, water splash proof, corrossion proof
● Fully sealed housing for greater protection

High accuracy PID Temperature controller

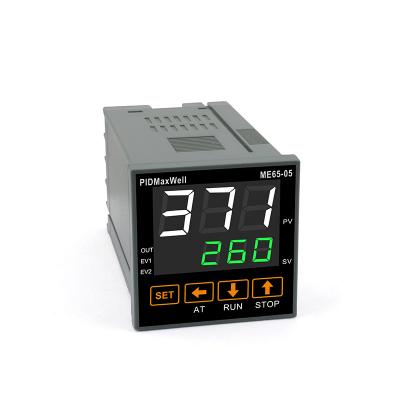

Ordering example : ME65-05-11100A, ME65 series, 48mm*48mm, TC/RTD input, Relay output, 1 alarm, 85~265Vac

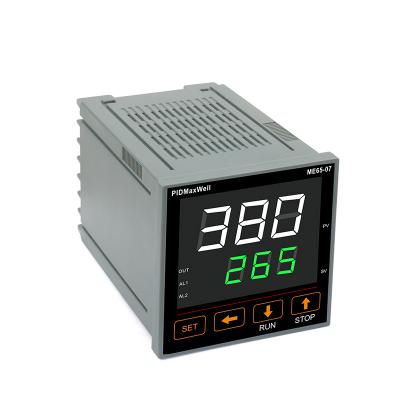

ME65-07-11100A, ME65 series, 72mm*72mm, TC/RTD input, Relay+SSR Drive output, 1 alarm, 85~265Vac

Click on below link to download catalog and user manual

ME65 Catalog and User manual

1)Overview of ME65 series controller,Fully sealed housing, touch button and low consumption PID Temperature controller

2)LED display of ME65 PID contorller

what kind of inputs are compatible with this controller ?
This controller works with TC/RTD inputs, thermcouple inputs including K, S, R, T, E, J, N, and RTD PT100, factory default input is type K
What are the output options ?

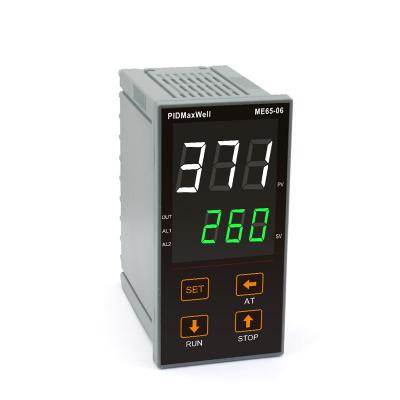

Controller has built-in relay+SSR Drive output, except 48mm*48mm, the output has to be specified for size 48mm*48mm, for other sizes such as 48mm*96mm, 72mm*72mm, 96mm*96mm, the output is relay+SSR Drive, output field selectable by default
Any certs does this controller have ?
This controller is CE and Rohs compatible
What is the warranty period of this controller ?
3 years warranty against manufacturing defective
What is the protection degree for this controller
This controller is IP54 proection, corrossion proof, dust proof, water splash proof.
Any certs does this controller have ?
This controller is CE and Rohs compatible

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Touch Button Low cost PID Temperature Controller

Submit

Categories

Don't Hesitate To Contact US

Our sales and technical support team are ready to help you as soon as we can

New Products

Related products

MAU90 Series

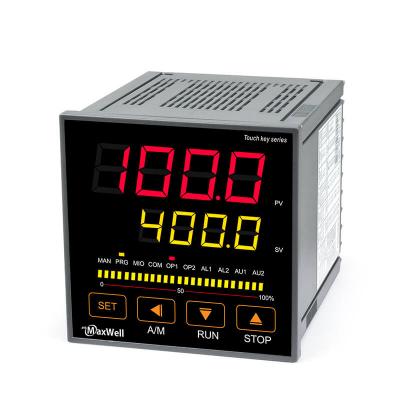

Touch Button Advanced PID Controller

Robust and versatile temperature controller, carry 3 years warranty.modular design, customer can install the modular according to customer's requirements. touch key design, the setting button is touch key, robust and long lasting. true universal input, works with TC/RTD and analong input, Various output such as relay, SSR Drive, 4-20mA, 0-10V, 250 ms sampling rate, IP67 possible with water tight gasket installed, super lower comsumption, very small temperature drift, high visible LED display, available with different color options, white/green or red/yellow.

MAU90 Din Rail

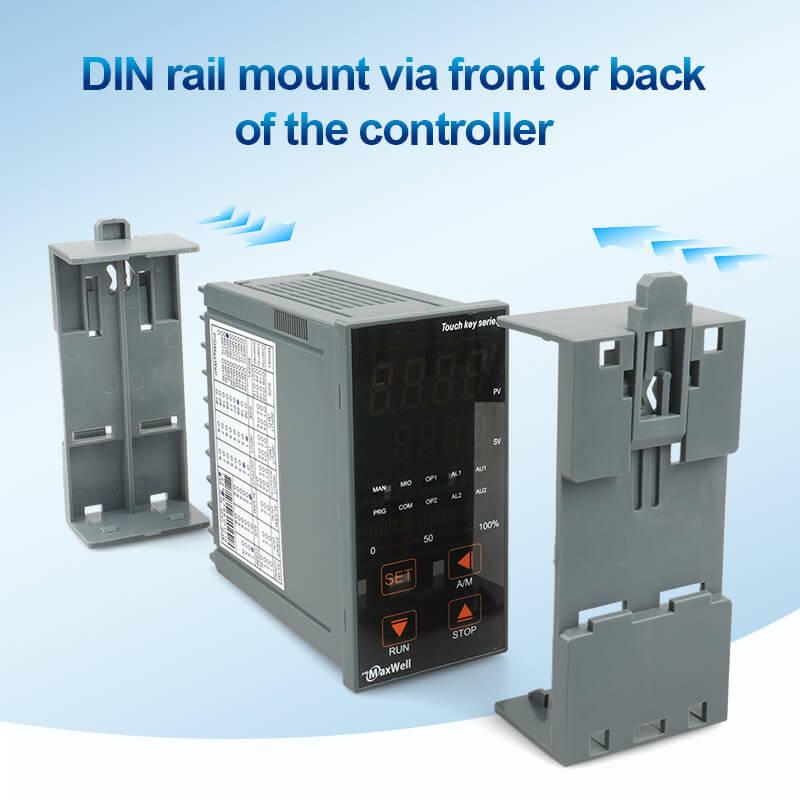

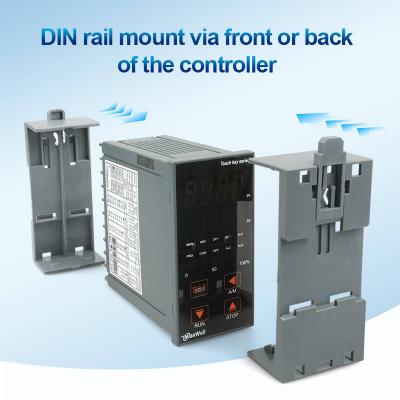

DIN Rail Mount Touch Button Advanced PID Controller
