Touch Button Advanced PID Controller

Robust and versatile temperature controller, carry 3 years warranty.modular design, customer can install the modular according to customer's requirements. touch key design, the setting button is touch key, robust and long lasting. true universal input, works with TC/RTD and analong input, Various output such as relay, SSR Drive, 4-20mA, 0-10V, 250 ms sampling rate, IP67 possible with water tight gasket installed, super lower comsumption, very small temperature drift, high visible LED display, available with different color options, white/green or red/yellow.

Brand:
PIDMaxWell
Item no.:
MAU90 Series
Payment:
T.T, Paypal Credit card
Color:
Grey
Goods stock:
500
Min order:
1
Product weight:
0.25
Lead Time:
7 working days after payment

Inquiry now

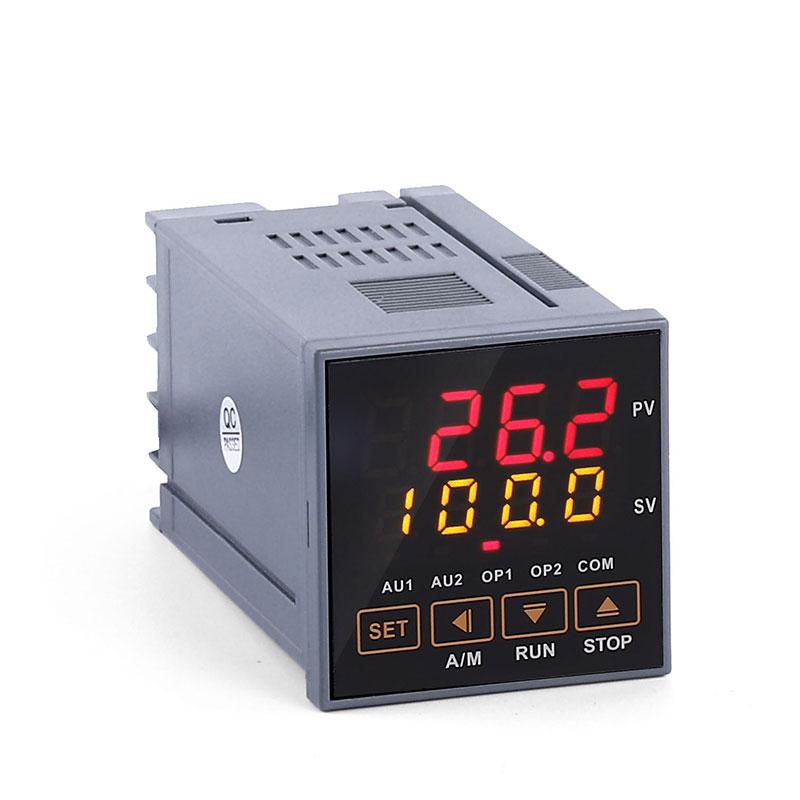

MAU90 Touch Button Advanced PID Controller

Main Feature

● The input utilizes a precise and stable digital calibration system, supporting various thermocouple and RTD specifications, with a maximum resolution of 0.01°C.
● Fuzzy logic algorithm, very limited overshoot and undershoot.
● All-New capacitive touch button, very easy to work with, with resposive sound when you press the key
● No open space on the entire housing of the controller, suitable for harsh application with strong dust and mositure
● Modular design, customer can easy configure the input and output based on field application
● Bright LED display modular, easy to read even under strong sun light
● Features protection functions against lightning strikes and accidental connection to a 380 VAC power supply (for up to 60 seconds).
● Carry 3 years warranty, CE and Rohs compliant

1. Inputs and Range

Thermocouple	K(-100~+1300℃), S(0~1700℃), R(0~1700℃), T(200~+390℃),E(0~1000℃),J(0~1200℃),B(600~1800℃）N(0~1300℃),WRe3-WRe25(0~2300℃),WRe5-WRe26(0~2300℃)
RTD	PT100(-200~+800℃), Cu50(-50~+150℃)
mV Analog Signal	0~75mV, 0~20mV, 0~100mV, 0~60mV, 0~500mV, 100~500mV, 1~5V, 0~5V, 0~10V, 2~+10V, 0~20V
mA Analog Signal	4~20mA, 0~20mA
Resistive	0~80 ohm, 0~400 ohm
Custom made input	Other inputs such as PT1000, Ni100 needs to be custom made

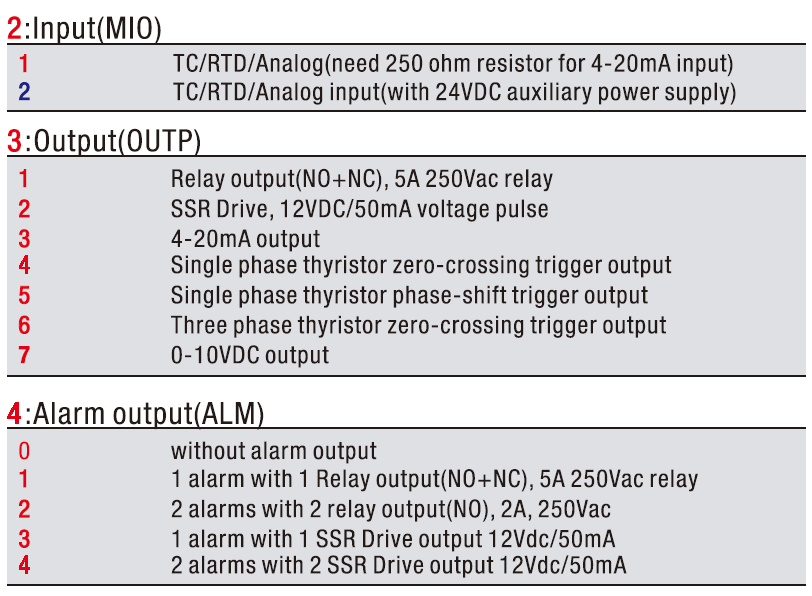

2. Outputs

Relay output	Relay output, NO+NC, 5A/250Vac, control AC contactor or intermediate relays
SSR Drive output	To drive solid state relay, 12VDC/50mA pulse signal
4-20mA output	To drive device such as SCR Power regulator
0-20mA output	To drive device accept 0-20mA control signal
0-10VDC output	To drive device such as AC inverter
Single phase thyristor zero-crossing trigger output	designed to trigger bidirectional thyristors (5–500A) or two anti-parallel unidirectional thyristors
Single-phase Thyristor Phase-Shift Trigger Output	designed to trigger 5–500A bidirectional thyristors or two anti-parallel unidirectional thyristors
Three phase thyristor zero-crossing trigger output	Each channel is capable of triggering a 5–500A bidirectional thyristor, or two anti-parallel unidirectional thyristors

3. Power Supply

AC standard	100-240Vac 50/60HZ
DC optional	24VDC/AC, optional

4. General Technical Features

Linear input range	-9990~+30000 with decimal points, specify by end user
Measuring accuracy	0.25%FS ± 0.1℃
Display resolution	0, 0.0, 0.00, 0.000, maximum 0.000 for analong inputs, maximum 0.00 for thermocouple inputs
Temperature drift	≤0.03%FS/℃
Sampling time	250ms
Control mode	NPID, APID, ON/OFF control mode selectable
Isolation	Power terminals, relay contacts, and signal terminals: ≥2300 VDC between one another, Between mutually isolated low-voltage signal terminals: ≥600 VDC
Power consumption	≤5W, very small consumption.
Operating Environment	Temperature: -30 to +75°C; Humidity: ≤90% RH

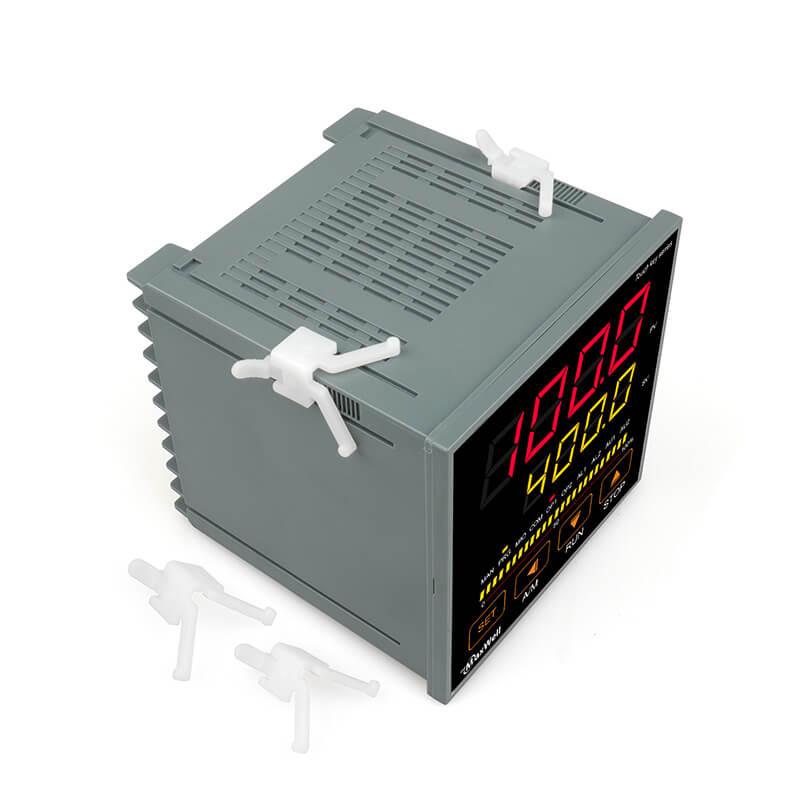

Panel size	96mm96mm( 1/4 DIN), 48mm48mm(1/16 DIN), 48mm96mm vertical(1/8 DIN), 96mm48mm horizontal(1/8 DIN), 72mm*72mm(3/16 DIN)
Panel cutout size	92×92mm, 44×92mm, 92×44mm, 68×68mm, 44×44mm
Display	Bar graphic display avaialble for all sizes except 48mm*48mm, white+green, yellow+red display optional
Communication	Modbus RS-485 optional, support 0x03 Read, 0x06, 0x10 write function code
Temperature unit	Celcius or Fahrenheit configurable
Number of alarms	Maximum 4 alarms optional

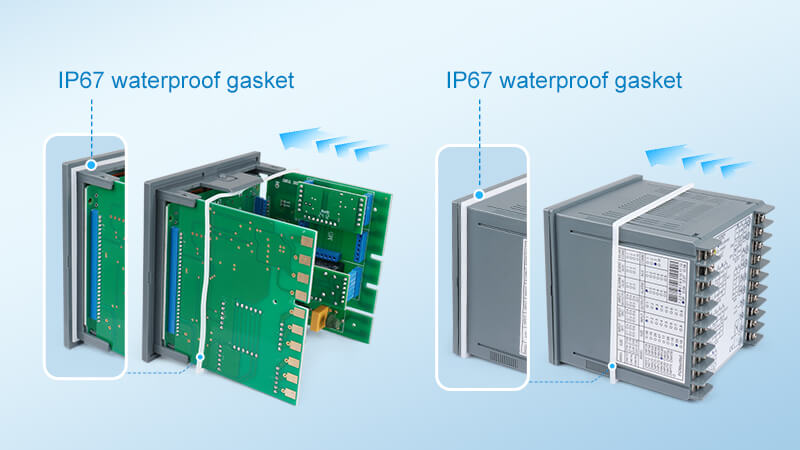

IP ratings	Water proof gasket available for 48mm96mm, 96mm48mm, 96mm*96mm, transform controller to IP67 rating

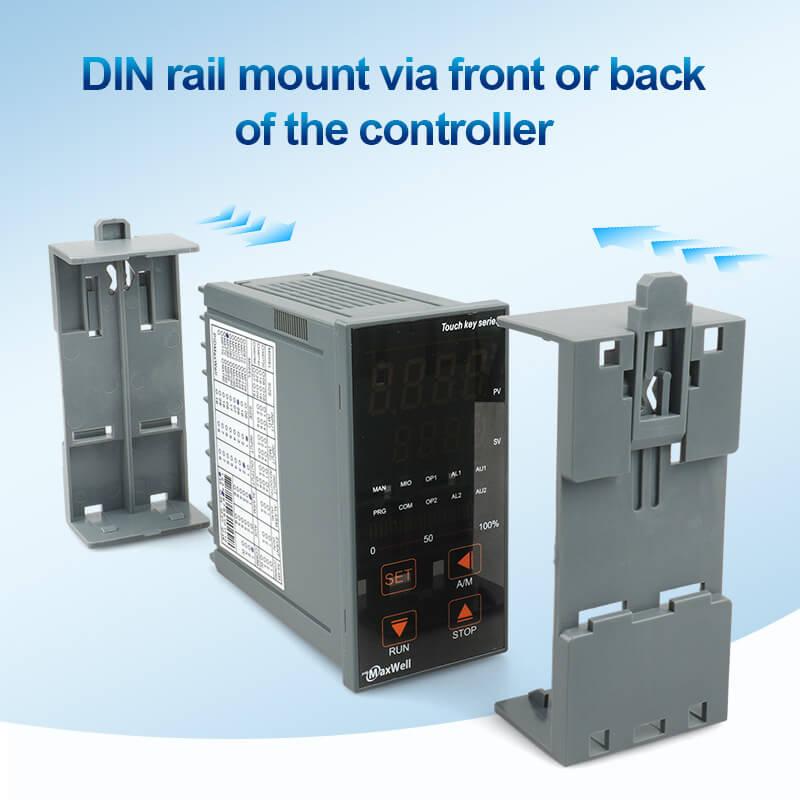

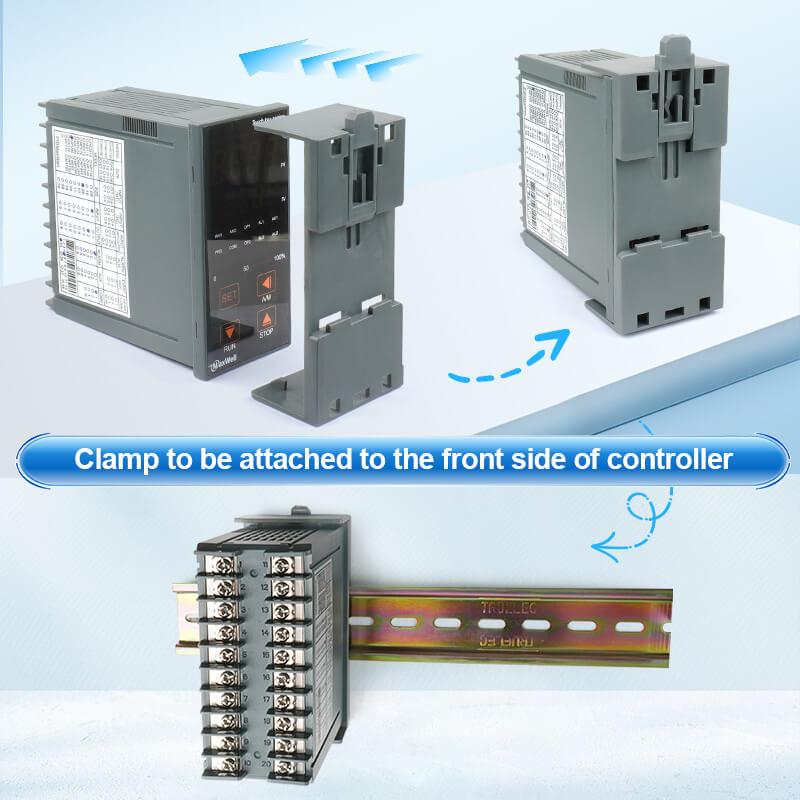

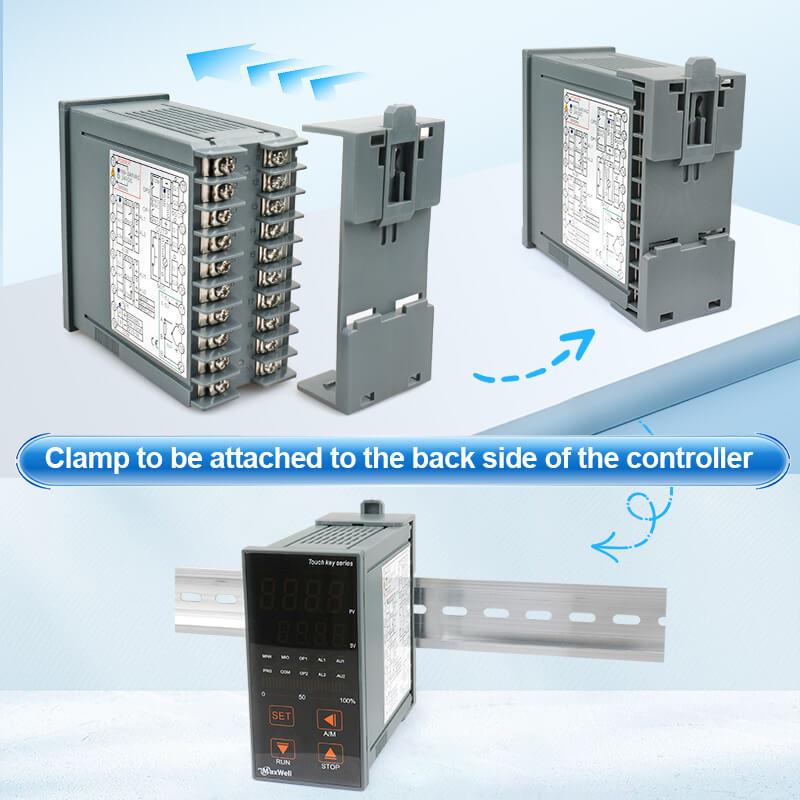

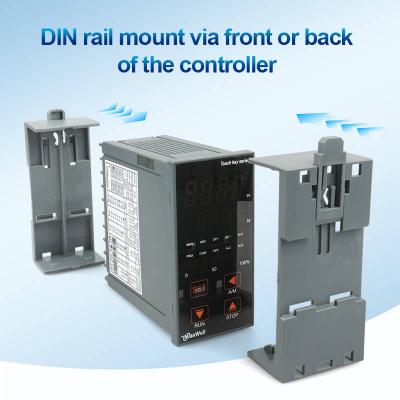

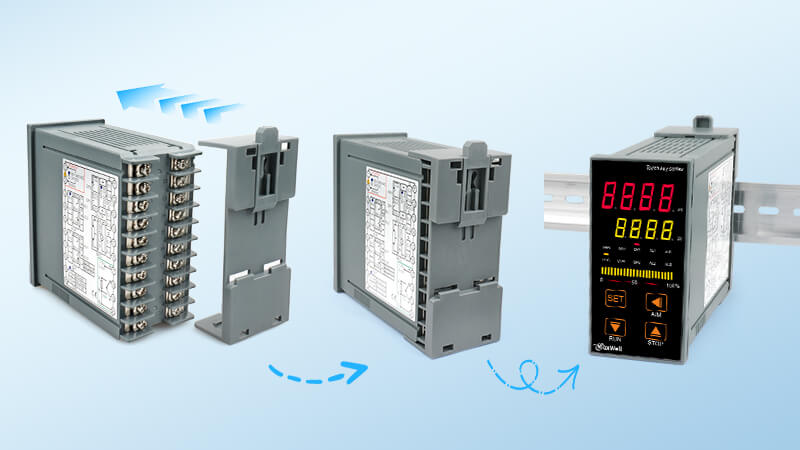

DIN rail mounting	DIN rail mount clamps for 48mm*96mm, transform the controller from panle mount to DIN rail mount
RUN/STOP	RUN/STOP controller from panel

5. Documents and downloads

[PDF] MAU90 Catalog and user manual
[PDF] MAU90 Modbus RS-485 Registery map

6. For a similar controller in DIN rail version, please visit Din Rail Mount Controller

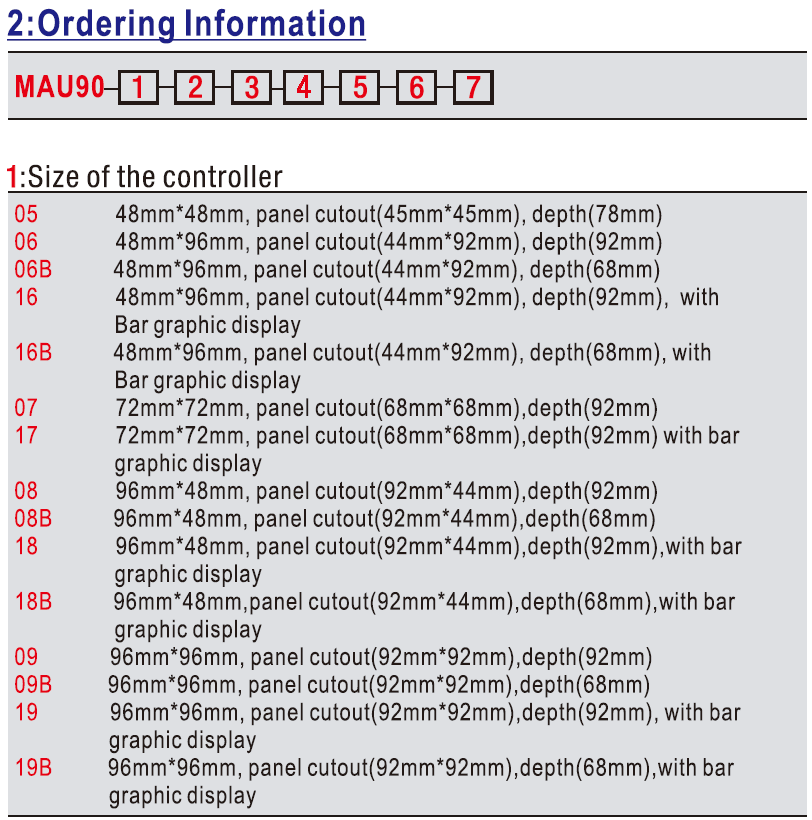

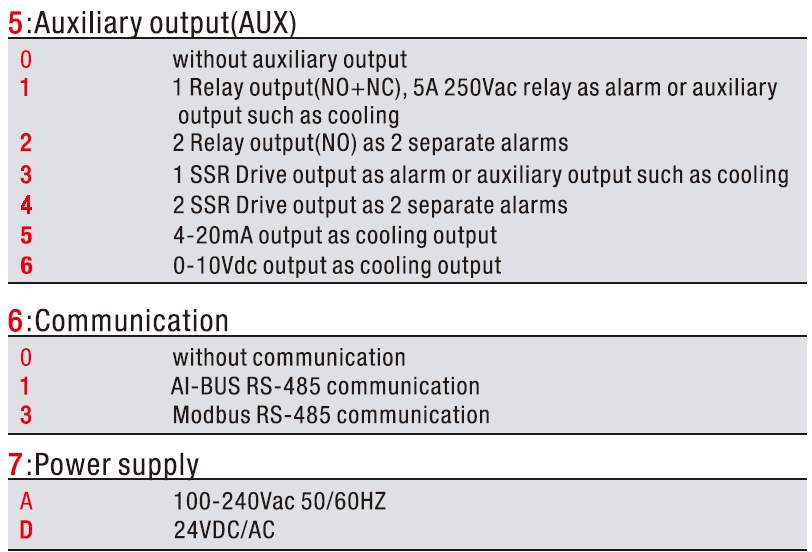

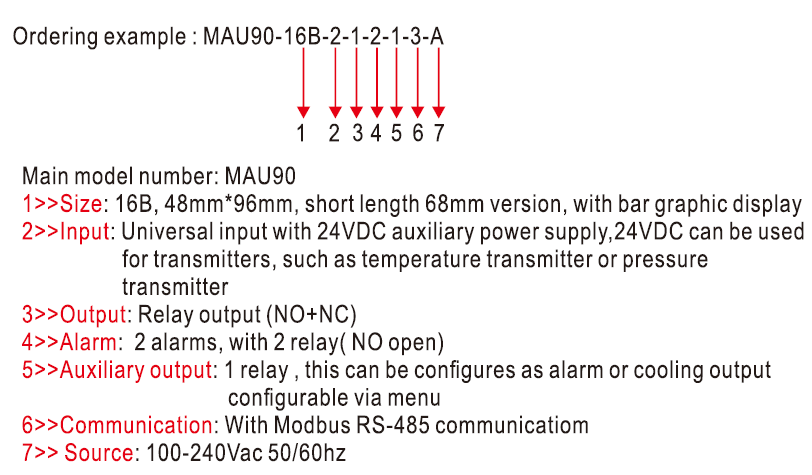

Ordering example : MAU90-16B-2-1-2-1-3-A
MAU90 series
16B: size 48mm*96mm, short body version, with bar graphic display
2: analong input modular, with 24VDC auxiliary power supply
1: Relay output
2: 2 alarms , with 2 relay( NO)
1: 1 relay as auxiliary output, this output can be configured as alarm output or cooling output
3: Modbus RS-485 RTU communication
A: Source 100~240Vac

Documents and Dowloads

[PDF] MAU90 Catalog and user manual
[PDF] MAU90 Modbus RS-485 Registery map

1)Overview of MAU90 series controller,Fully sealed housing, touch button and low consumption PID Temperature controller

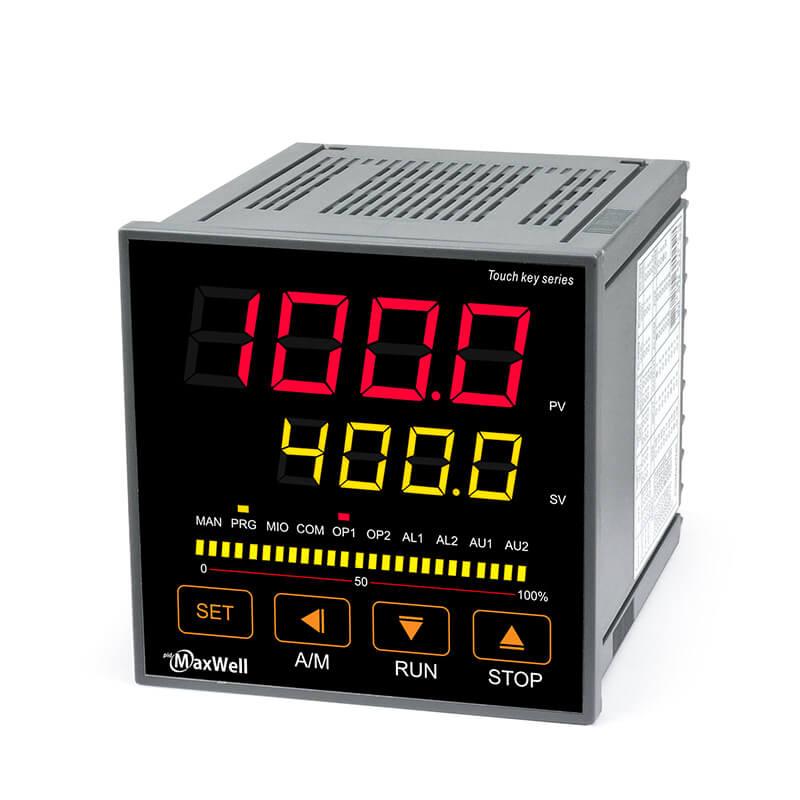

2)LED display of MAU90 PID contorller

what kind of inputs are compatible with this controller ?
This controller works with TC/RTD/Analong inputs, Thermocouple inputs including K,S,R,T,E,J,B,N,WRe3-WRe25,WRe5-WRe26
RTD inputs including PT100 and Cu50, other special input such as PT1000, Ni120 etc can be cusotm made,
Voltage input including 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV, 0~20mV, 0~10V
Current: 0~20mA, 4-20mA etc
Resistance: 0~80 ohm, 0~400 ohm
Other inputs can be custom made, please contact our sales team for further information
What are the output options ?
These controller has a various output options
Relay output, SSR Drive output, 4-20mA output
Single phase thyristor zero-crossing trigger output
Single phase thyristor phase angled trigger output
Three phase thyristor zero-crossing trigger output
How many alarms does this controller have ?
Maximum 4 alarms available
What is the warranty period of this controller ?
3 years warranty against manufacturing defective
What is the protection degree for this controller

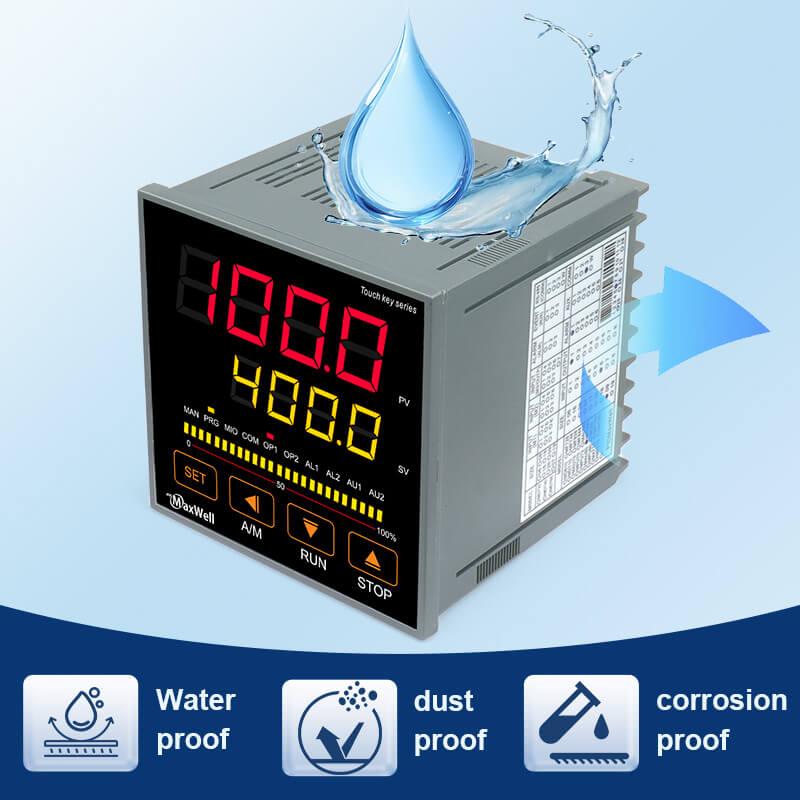

This controller is IP54 proection by default, corrossion proof, dust proof, water splash proof. water tight gasket available on 48mm*96mm, 96mm*48mm, 96mm*96mm, with the water tight gasket applied, the controller will be IP68
Any certs does this controller have ?
This controller is CE and Rohs compatible
What is the accuracy of this controller
0.25%FS±0.1℃
What is the display resolution of this contorller
0.1 resolution for TC/RTD input, 0.001 resolution for analong input(configurable)
What is the sampling rate
250ms sampling rate
What is the temperature drift value
≤0.03%FS/℃
What are the avaialble control modes for this controller
NPID, APID, ON/OFF
Electromagnetic compatibility: IEC61000-4-4, ±4KV/5KHz; IEC61000-4-5, 4KV
Isolation withstand voltage: ≥2300VDC between power supply terminal, relay contact and signal terminal; ≥600VDC between mutually isolated weak current signal terminals
What is the operating ambient ?
operates at wide range of ambient range: -30 degree celcius to 75 degree celcius
What is correct procedure on how to conduct the auto-tuning
Always perform the auto-tuning only after install your controller in the field application, a lot of customer proceed the auto-tuning by put the controller in the office on the office desk, this does not make sense. the auto-tuning only supposed to be carried out in the field under real application.
