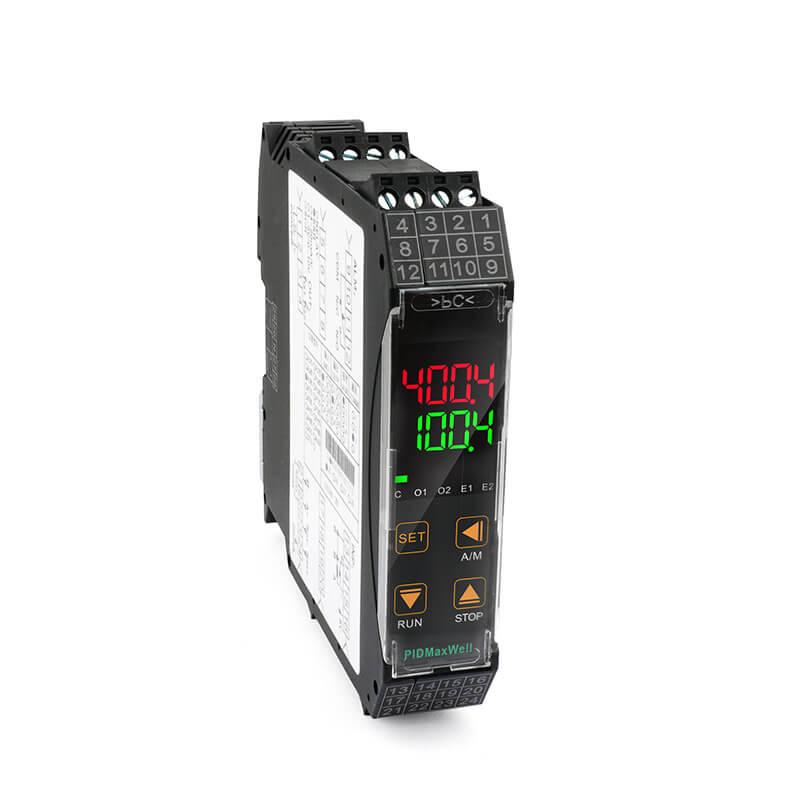

DIN Rail Mount Touch Button Advanced PID Controller

Robust and versatile DIN rail mount temperature controller, carry 3 years warranty. touch button with responsive beep sound. Universal TC/RTD/Analong input

Brand:
PIDMaxWell
Item no.:
MAU90 Din Rail

Inquiry now

Touch Button Advanced DIN rail mount PID Controller

-Key features

● Dual line 4 digits, 7 segments, LED display

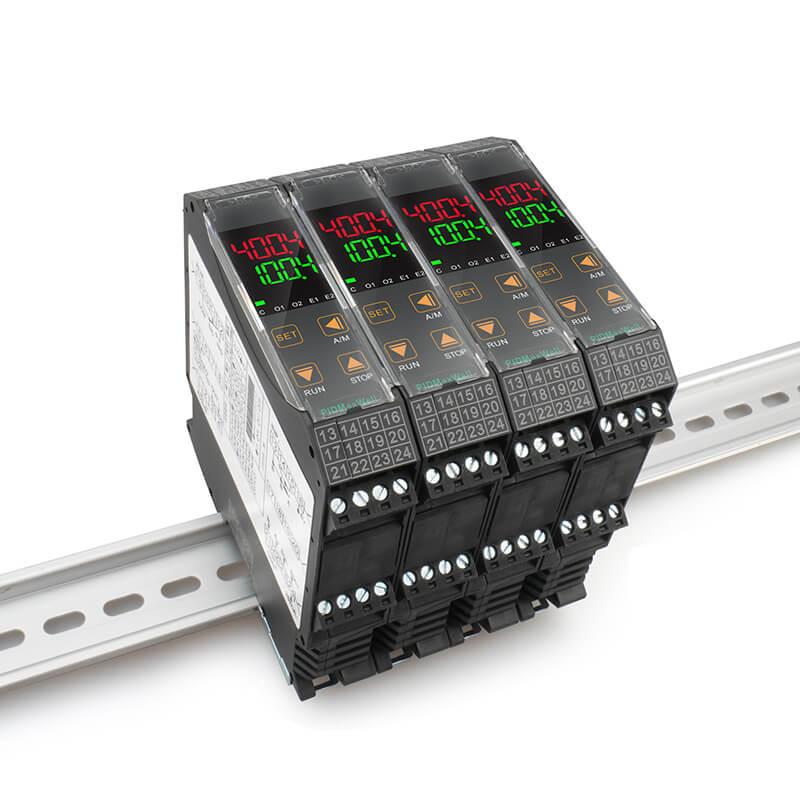

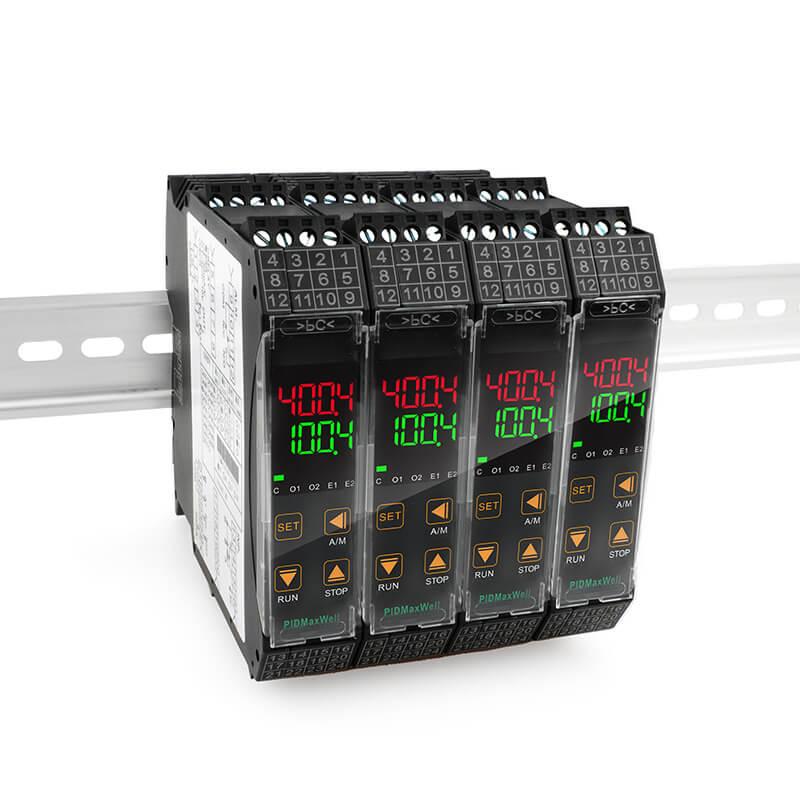

● DIN rail mount version
● Red and yellow display, makes the display stands out and highly visible from far away and under direct sunlight.
● True universal TC/RTD/Analog input
● Various output available, output such as relay, SSR Drive, 4-20mA, 0-10Vdc,
● NPID, APID, ON/OFF control mode selectable
● 0.25% F.S accuracy, true accuracy without temperature drift.
● Celsius or Fahrenheit display selectable
● 0.1maximum resolution for TC/RTD input, 0.001 maximum resolution for analog input
● 100-240Vac or 24VDC/AC source
● Bus-powered version and self-powered version optional
● PC SCADA software available at very limited cost
● 250ms sampling rate, ideal for accurate temperature control as well other process such as pressure control, very limited overshoot and undershoot.
● Touch button, feedback beep sound when you tap on the buttons this is a very useful features for user to track the operation not only visually, but also auditory.
● RUN/STOP function from local controller
● Ultra low power consumption less than < 2W
● Operates at extremely wide ambient range, -30℃~75℃ degree
● Modbus RS-485 communication optional
● 1 alarm as standard feature
● 3 years warranty, CE and Rohs compliant

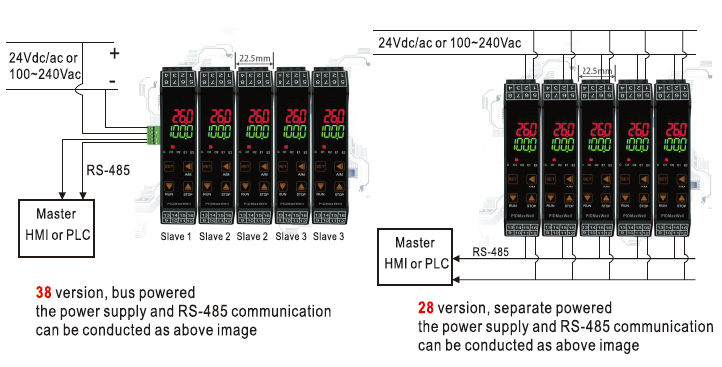

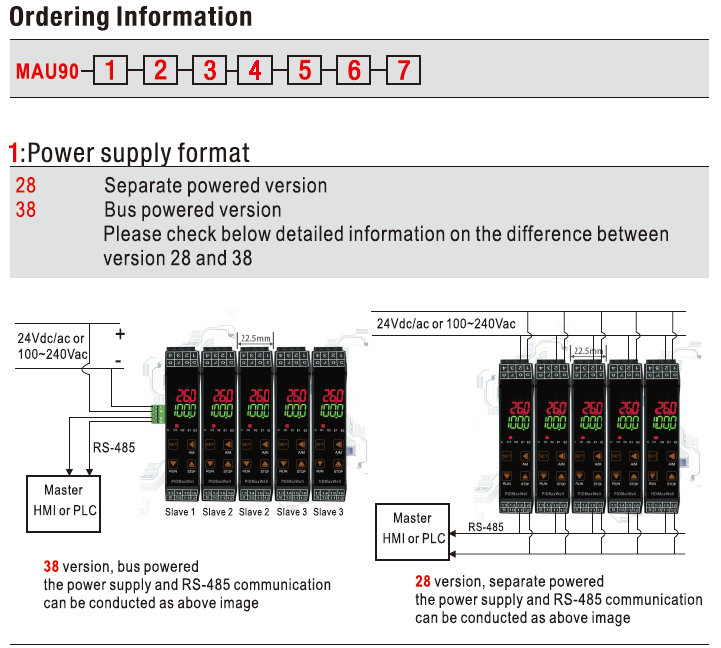

-Difference between bus-powered version and self-powered version

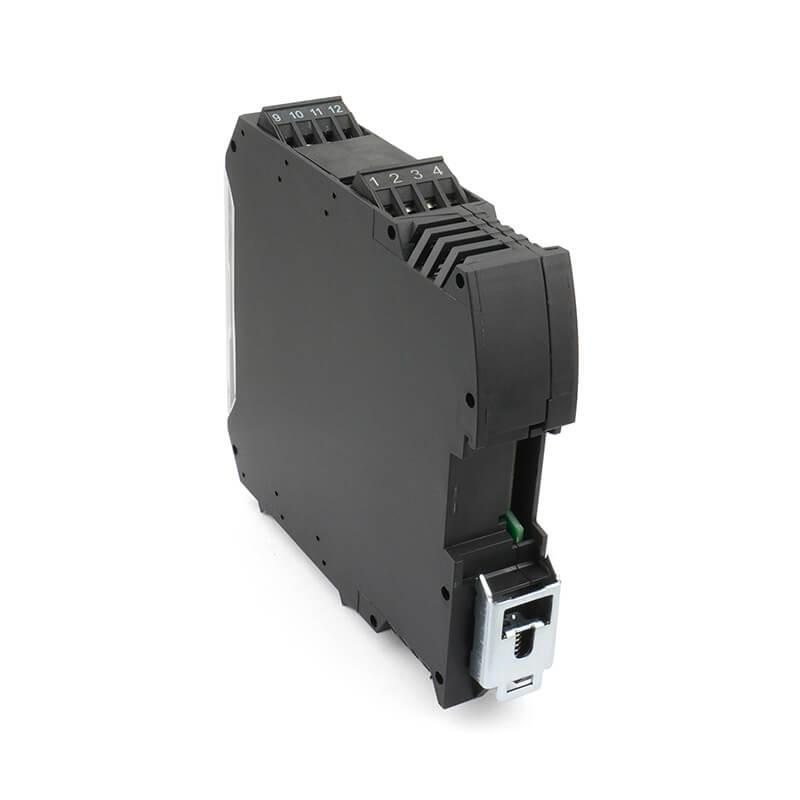

Please refer to below image on the difference between bus-powered version and self-powered version, in a field application. often there are more than 1 zone to be controlled, suppose you have a system with multiple zones, therefore multiple controllers will be needed, the bus powered version comes with a connector where you can attach it to the slot of the DIN rail, and multiple controllers can be attached to each other via the connector, therefore the 24VDC only have to be feed to one the controllers, both 24VDC and communcation will run through the same bus line. the self-powered version, on the hand, each unit need to draw 24VDC separately and each unit have to be connected in sereial in order to communicate with the master device such as PLC or HMI, please go with bus-powered version which is more popular.

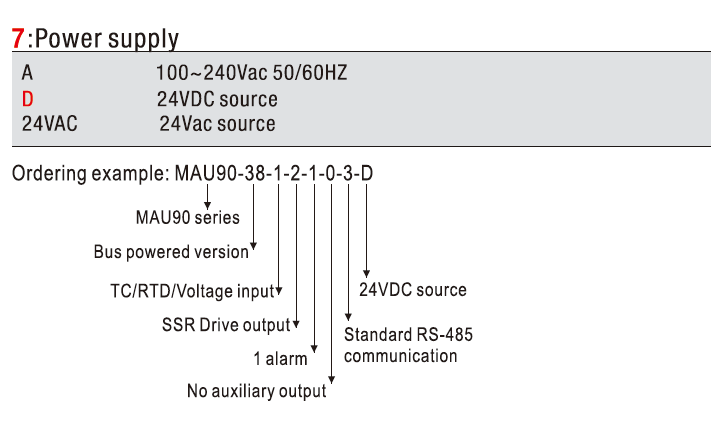

Ordering example : MAU90-38-1-2-1-0-3-D
MAU90 38 bus powered version
1: TC/RTD
2: SSR Drive output
1: 1 alarm
0: No auxiliary output
3: Modbus RS-485 RTU communication
D: 24VDC/AC

Click on below link to download catalog and user manual

PIDMaxwell-Catalog(MAU90 DIN rail mount PID Contorller)
PIDMaxwell-User manual(MAU90 DIN rail mount PID Controller)

1)Overview of MAU90 series controller,Fully sealed housing, touch button and low consumption PID Temperature controller

2)LED display of MAU90 PID contorller

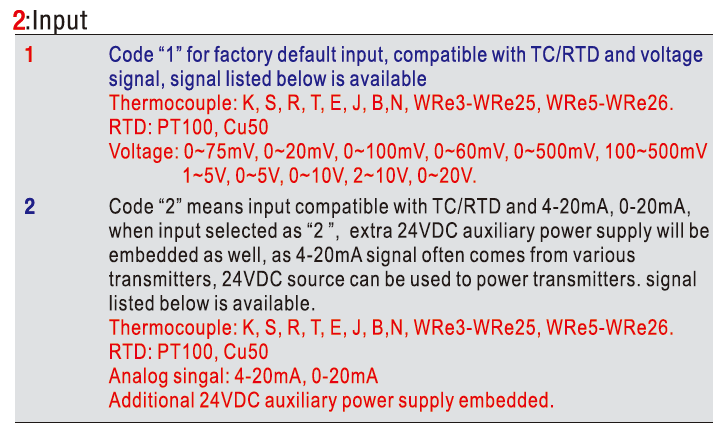

what kind of inputs are compatible with this controller ?
This controller works with TC/RTD/Analong inputs, Thermocouple inputs including K,S,R,T,E,J,B,N,WRe3-WRe25,WRe5-WRe26
RTD inputs including PT100 and Cu50, other special input such as PT1000, Ni120 etc can be cusotm made,
Voltage input including 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV, 0~20mV, 0~10V
Current: 0~20mA, 4-20mA etc
Resistance: 0~80 ohm, 0~400 ohm
Other inputs can be custom made, please contact our sales team for further information

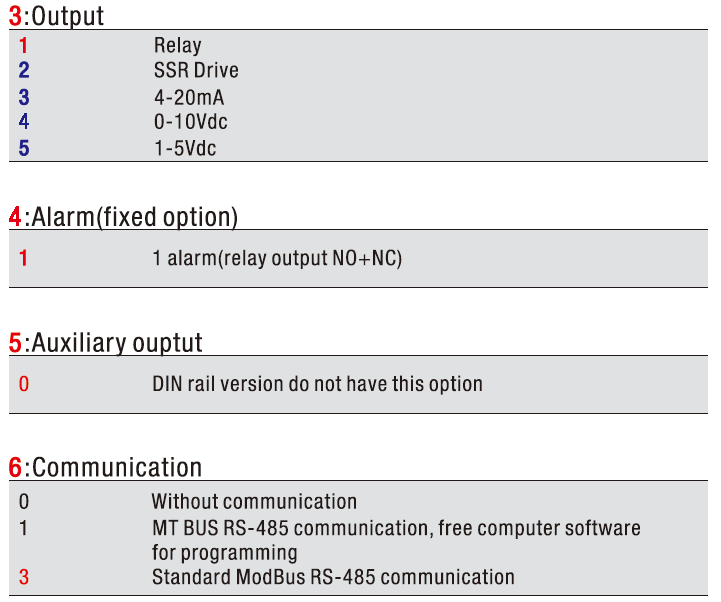

What are the output options ?
These controller has a various output options
Relay output, SSR Drive output, 4-20mA output
How many alarms does this controller have ?
Maximum 1 alarm available
What is the warranty period of this controller ?
3 years warranty against manufacturing defective
What is the protection degree for this controller
This controller is IP54 proection by default, corrossion proof, dust proof, water splash proof. water tight gasket available on 48mm*96mm, 96mm*48mm, 96mm*96mm, with the water tight gasket applied, the controller will be IP68
Any certs does this controller have ?
This controller is CE and Rohs compatible
What is the accuracy of this controller
0.25%FS±0.1℃
What is the display resolution of this contorller
0.1 resolution for TC/RTD input, 0.001 resolution for analong input(configurable)
What is the sampling rate
250ms sampling rate
What is the temperature drift value
≤0.03%FS/℃
What are the avaialble control modes for this controller
NPID, APID, ON/OFF
Any certs does this controller have ?
This controller is CE and Rohs compatible
Electromagnetic compatibility: IEC61000-4-4, ±4KV/5KHz; IEC61000-4-5, 4KV
Isolation withstand voltage: ≥2300VDC between power supply terminal, relay contact and signal terminal; ≥600VDC between mutually isolated weak current signal terminals
What is the operating ambient ?
operates at wide range of ambient range: -30 degree celcius to 75 degree celcius
