Cost effective PID PID digital temperature controller

Cost effective PID digital temperature controller with Relay+SSR Drive output
Output field selectable.

-Key features

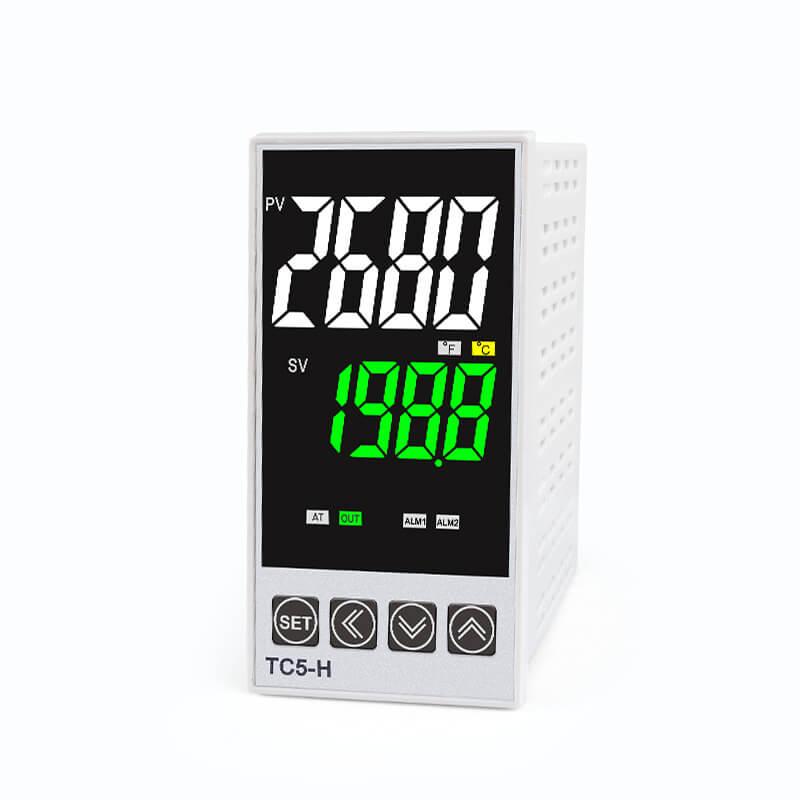

● Dual line 4 digits, 7 segments, LED display
● White/green makes the display stands out and highly visible from far away and under direct sunlight.

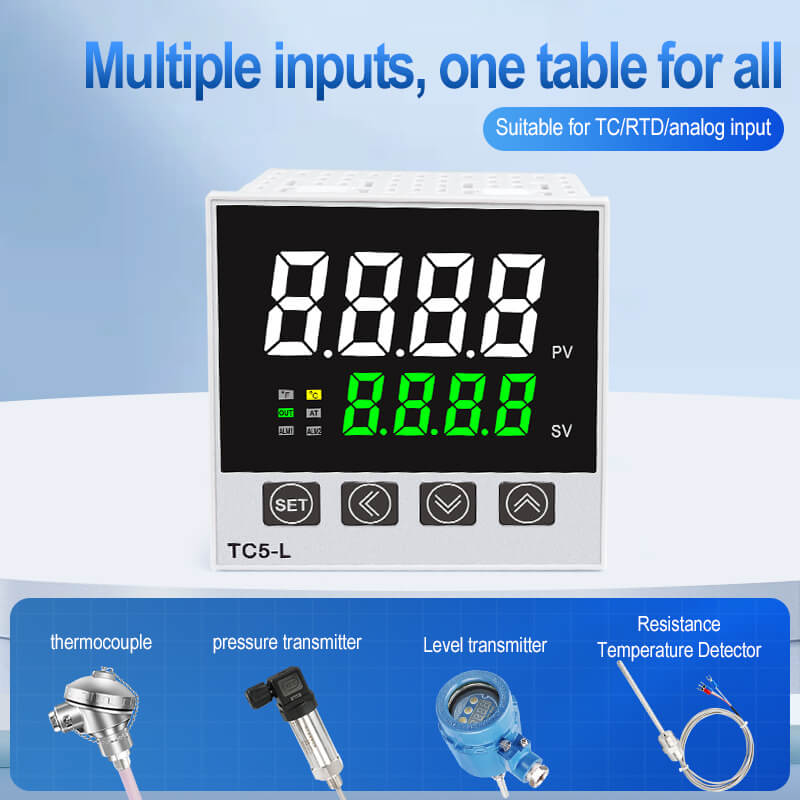

● Thermocouple and RTD input
● Relay output and SSR Drive output field selectable
● 1 alarm or 2 alarms optional
● Power supply: 100–240VAC or 24VDC, specify when order
● Allowable voltage range: 90–110% of rated voltage
● Power consumption: Max.8VA
● Input specification: TC K E J N T S R B
   RTD Pt100 Cu50
   Linear current  0–20mA 4–20mA
   Linear voltage 0–5V 1–5V
● Display accuracy: ± 0.5%
● Output specification:
   Relay contact output 250VAC 5A 1NO1NC
   SSR 12VDC ± 2V below 20mA
   Voltage output(control output /variable output)
   Current output(control output /variable output )
   Option output  Alarm output Relay 250VAC 5A Max.two sets of alarm outputs
●Control method:ON/OFF position control, PID control
●Sampling period:100ms
●Relay life cycle:Mechanical above 2.5 million times, Electrical above 100000 times
●Dielectric strength:2000VAC 50/60Hz for 1min.( between all terminals and case )
●Vibration:0.75mm amplitude at frequency 5 to 55HZ(for1min.) in eachX,Y,Z direction for 2 hours
●Insulation resistance:100MΩ( 500VDC)
●Noise resistance:Square shaped noise by noise simulator(pulse width 1 u s) 2kVR–phase,S–phase
●Memory retention:Approx.10years(non–volatile semiconductor memory type)
●Environment: Ambient temp. –5– 40C storage:–10–50C
●Ambient humi:35%~85%RH storage:35–85%RH
● Celcius or Fahrenheit display selectable
● 0.1maximum resolution for TC/RTD input, 0.001 maximum resolution for analog input
