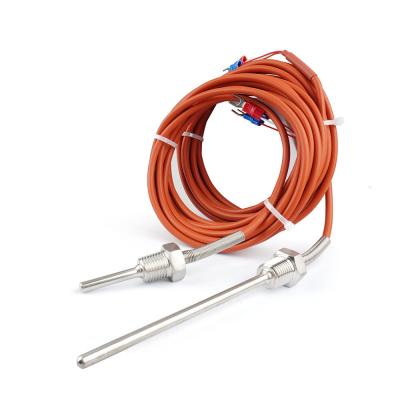

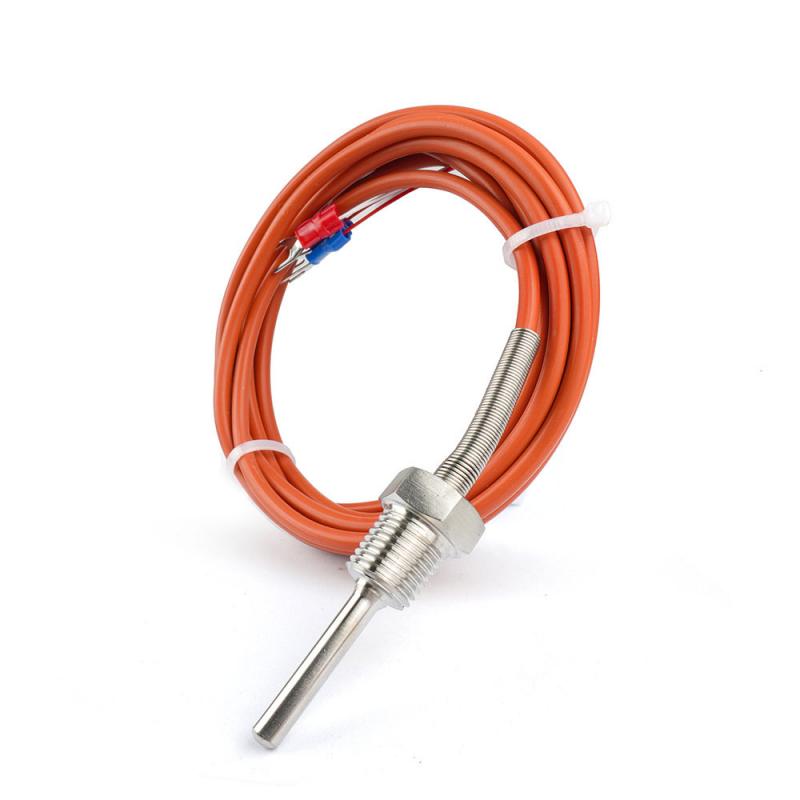

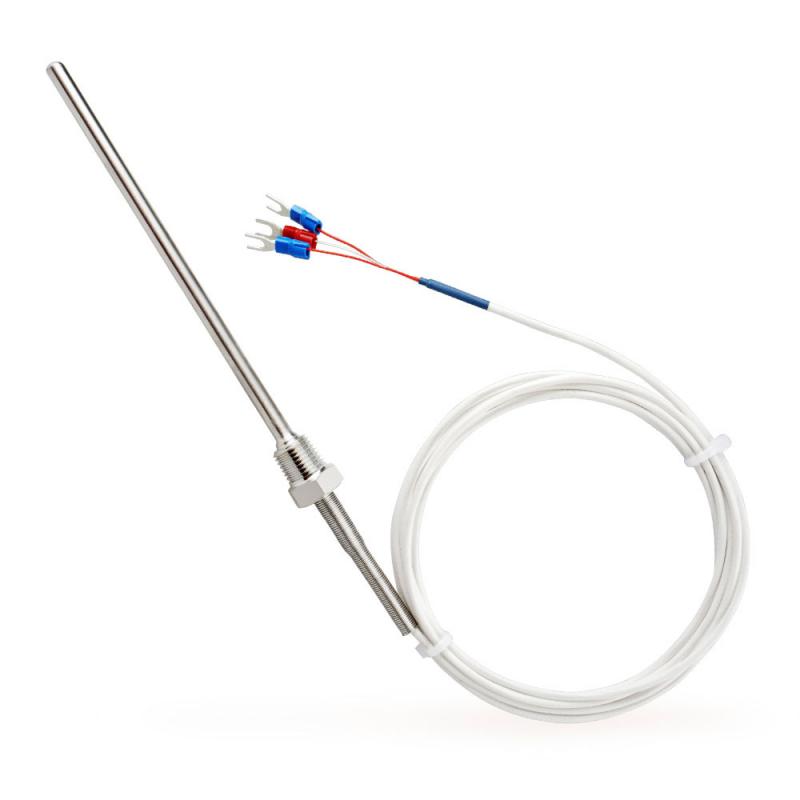

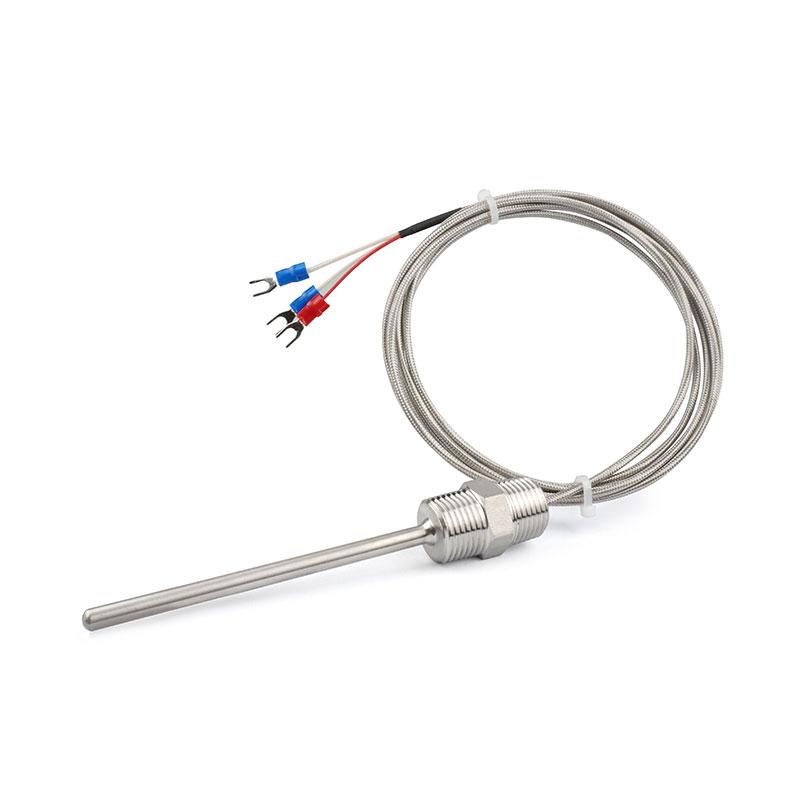

Probe type PT100 with process fittings

The Maxwell PT100-2 Series is a versatile and robust probe-type Resistance Temperature Detector (RTD) designed for precise and reliable temperature measurement across a wide range of industrial applications. This series offers exceptional flexibility with customizable probe diameters, lengths, and compensation lead wires, ensuring seamless integration into diverse systems. Engineered for durability, the PT100-2 series can also be configured with a waterproof design, making it suitable for challenging environments. With its high accuracy and customizable features, the PT100-2 series provides an ideal solution for demanding temperature sensing requirements.

Brand:
PIDMaxWell
Item no.:
PT100-2
Payment:
T.T, Credit Card, Paypal etc, to be negotiate
Market price:
$10
Price:
$5
Product origin:
Made in China
Color:
Orange, silver, white
Min order:
10 PCS
Product weight:
0.1kg
Lead Time:
14 days after payment confirmed

Inquiry now

Key Features

Customizable Probe: Available with various probe diameters (e.g., 3mm, 4mm, 5mm) and lengths (e.g., 50mm, 100mm, 150mm) to meet specific application needs.

Multiple Sensor Types: Supports K, J, T, and E type thermocouples, offering broad compatibility.

Customizable Lead Wire: Compensation lead wires can be customized in length (e.g., 2 meters, 3 meters, 5 meters) and material (e.g., Stainless Steel, Silicon, Fiberglass, Teflon).

Waterproof Option: Available with a waterproof design for enhanced durability in harsh or moist conditions.

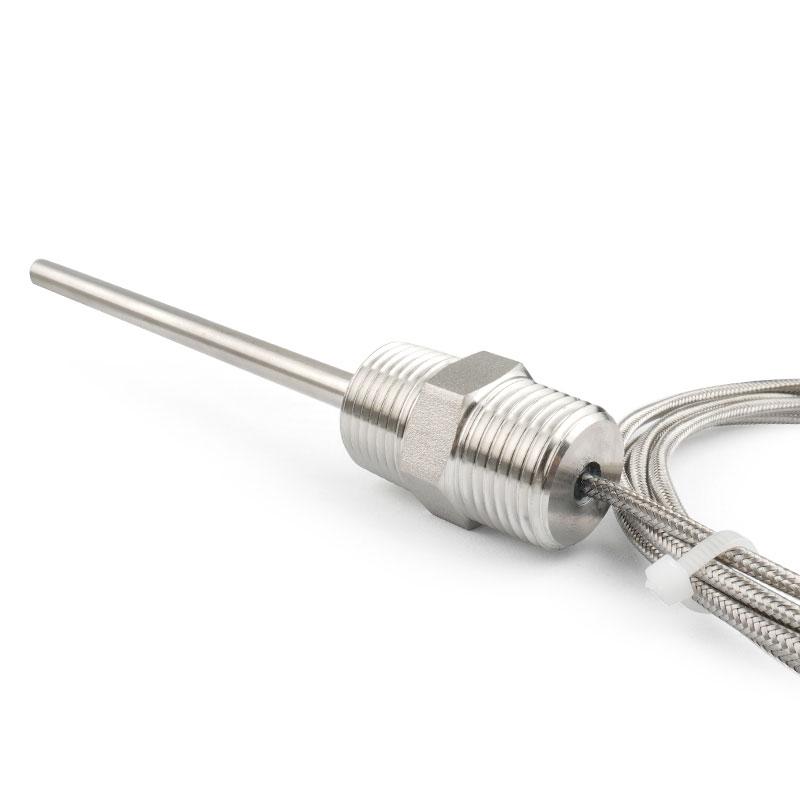

Process Fittings: Standard M8 screw type (M6, 1/4NPT, 1/2NPT options available) for secure installation.

Wide Temperature Range: Suitable for temperatures up to 300°C (standard model).

Technical Specifications

Parameter	Details
Sensor Type	RTD (PT100)
Thermocouple Types	K, J, T, E (Available upon request)
Probe Diameter	Customizable (e.g., 3mm, 4mm, 5mm)
Probe Length	Customizable (e.g., 50mm, 100mm, 150mm)
Screw Type	M81mm (Standard); M60.75mm, 1/4NPT, 1/2NPT (Options)
Lead Wire Length	Customizable (e.g., 2 meters, 3 meters, 5 meters)
Lead Wire Material	Stainless Steel (SS), Silicon (SILI), Fiberglass (FBGL), Teflon (TEFL)
Temperature Range	Up to 300°C (Standard PT100)
Waterproof	Optional

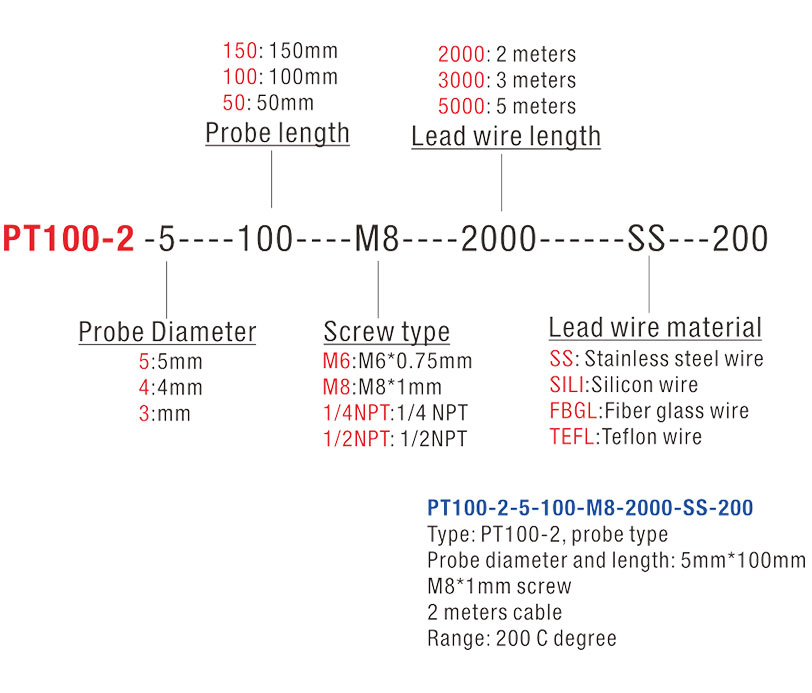

PT100-2-5-100-M8-2000-SS-200

PT100-2: Series Identifier (Probe-Type RTD)

5: Probe Diameter (5mm)

100: Probe Length (100mm)

M8: Screw Type (M8*1mm)

2000: Lead Wire Length (2 meters)

SS: Lead Wire Material (Stainless Steel)

200: Temperature Range (200°C, example from PDF, actual range up to 300°C)

Please contact our sales team for specific ordering configurations and to discuss your custom requirements.

Click on below link to download catalog, user manual for PT100-2

PT100-2 Catalog

The Maxwell PT100-2 Series temperature sensor is ideal for a variety of industries and applications requiring accurate and reliable temperature monitoring, including:

Industrial Process Control: Monitoring temperatures in machinery, pipelines, and manufacturing processes.

HVAC Systems: Temperature sensing in heating, ventilation, and air conditioning units.

Food and Beverage: Temperature regulation in processing, storage, and refrigeration.

Plastics and Rubber: Die and mold temperature control.

Chemical and Pharmaceutical: Temperature monitoring in reactors and storage tanks.

Laboratory and Research: Precision temperature measurements in experimental setups.

OEM Applications: Customizable for integration into various equipment and systems.
