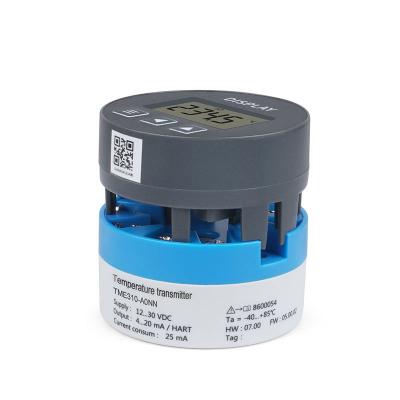

Smart Head-Mounted HART Temperature Transmitter

The Maxwell TME310-A0NN Series is an advanced, highly reliable head-mounted smart temperature transmitter designed for universal industrial applications. Engineered to fit standard DIN B connection heads, this loop-powered device seamlessly converts signals from a wide array of sensors — including RTDs, Thermocouples (TC), resistance, and voltage (mV) inputs — into a stable, scalable 4-20mA analog output superimposed with the HART 7 digital communication protocol.

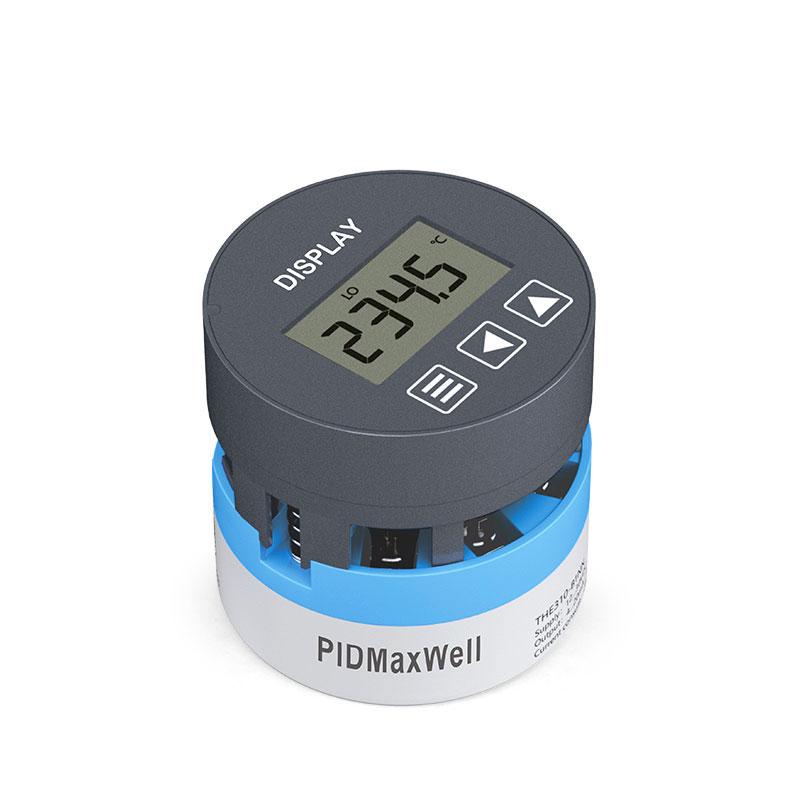

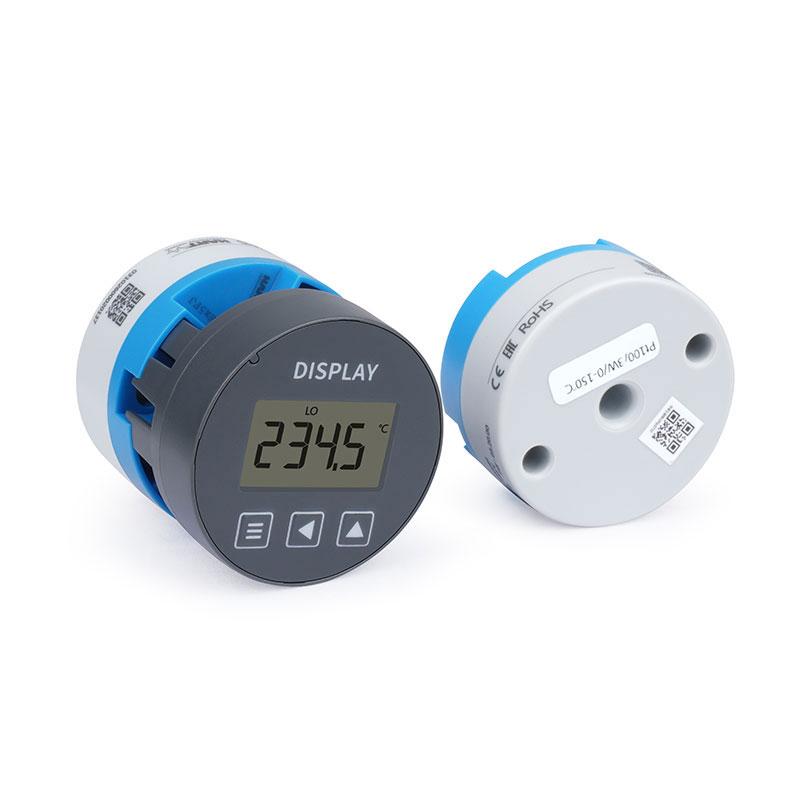

Equipped with a clear, rotatable 4-digit LCD display and an intuitive 3-button interface, the TME310 allows for effortless local configuration and real-time process monitoring without the need for external communicators. Its robust design ensures exceptional measurement accuracy (±0.1°C typical for Pt100), outstanding long-term stability, and comprehensive diagnostic capabilities compliant with NAMUR NE 107 standards. Whether configured locally, via a HART handheld device, or through PC software, the TME310 delivers precise, dependable temperature measurement for the most demanding process control environments.

Brand:
PIDMaxWell
Item no.:
TME310-A0NN
Payment:
T.T, Credit Card, Paypal etc, to be negotiat
Market price:
$70
Price:
$60
Product origin:
China
Color:
Blue and white
Goods stock:
1000
Min order:
10 PCS
Product weight:
0.1kg
Lead Time:
14 days after payment confirmed

Inquiry now

Key Features

Universal Sensor Input	Fully compatible with 2/3/4-wire RTDs (Pt100, Pt1000, Ni100, Cu50, etc.), Thermocouples (Type B, E, J, K, N, R, S, T), linear resistance (0–2000 Ω), and millivolt signals (−10 to +100 mV).
HART 7 Communication	Features a 2-wire 4-20mA analog output integrated with the latest HART 7 digital protocol for advanced remote configuration, asset management, and diagnostics.
Integrated LCD Display	Built-in 4-digit LCD screen provides clear, real-time visualization of process values, engineering units (°C/°F/K), and diagnostic error codes.
Local Push-Button Configuration	Three integrated push-buttons (MENU, ◄, ▲) enable quick and easy on-site parameter setup without requiring a HART modem or handheld communicator.
High Precision & Stability	Delivers a reference accuracy of ±0.1°C (for Pt100) with exceptional long-term stability (±0.1°C/year) and a rapid response time of less than 1 second.
Advanced Diagnostics	Incorporates continuous sensor open/short circuit detection, out-of-range monitoring, and internal electronics failure detection per NAMUR NE 107.

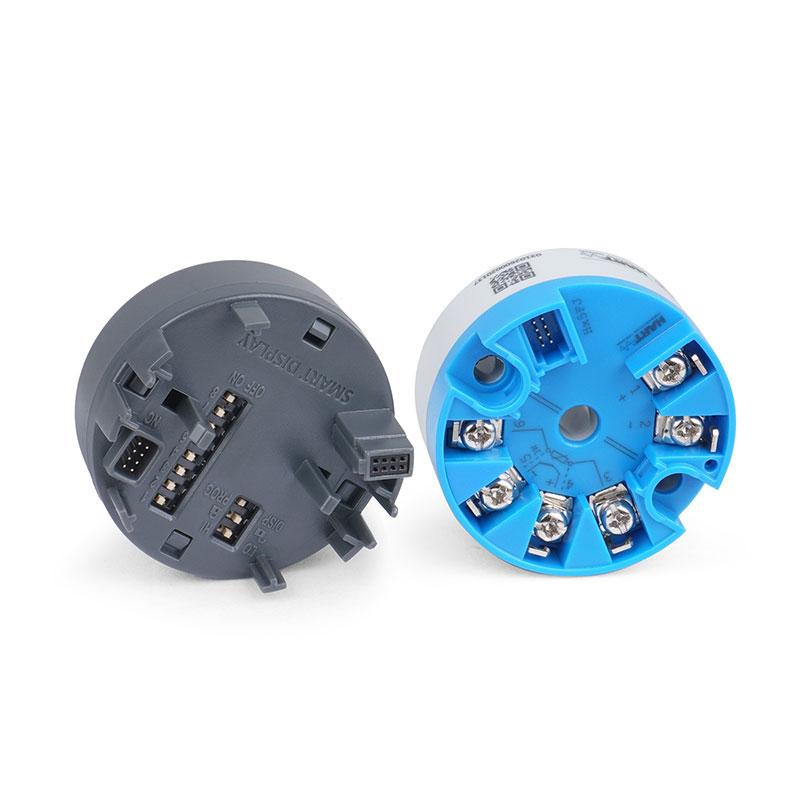

Rotatable Display Module	The display can be rotated in 4 × 90° increments to ensure optimal readability regardless of the installation orientation within the DIN B head.
Robust Protection	Features reverse polarity protection, EMC compliance (EN 61326-1, NAMUR NE 21), and a wide operating temperature range of −40°C to +85°C.

Technical Specifications

Parameter	Specification
Product Category	Head-Mounted Smart Temperature Transmitter
Input Types — RTD	Pt100, Pt200, Pt500, Pt1000 (2/3/4-wire); Ni100, Ni120, Ni1000; Cu50, Cu100
Input Types — TC	Type B, C, D, E, J, K, L, N, R, S, T, U, W
Input Types — Other	Resistance: 0–400 Ω, 0–2000 Ω; Voltage: −10 to +100 mV
Measurement Range	RTD Pt100: −200 to +850°C; TC Type K: −200 to +1372°C; TC Type S/R: 0 to +1768°C; TC Type B: +40 to +1820°C
Output Signal	4-20mA (2-wire, loop powered) + HART 7 digital protocol
Reference Accuracy	±0.1°C typical (Pt100 RTD); ±0.05°C with high-accuracy option
Long-Term Stability	±0.1°C per year
Ambient Temp. Effect	±0.005°C/°C
Response Time	< 1 second (typical)
Resolution	0.01°C
Power Supply	12 to 42 Vdc (loop powered, 2-wire)
Max. Current	22.5 mA (HART burst mode)
Failure Mode Output	Configurable: Upscale 21.5mA or Downscale 3.6mA
Display	4-digit 7-segment LCD; shows value, unit, sensor type, error codes; rotatable 4 × 90°
Configuration	Local 3-button keypad; HART handheld communicator; PC software via USB-HART modem
Diagnostics	Sensor open/short circuit; out-of-range; electronics failure; NAMUR NE 107 compliant
Operating Temperature	−40°C to +85°C (electronics)
Storage Temperature	−40°C to +100°C
Humidity	0 to 100% RH (non-condensing)
Protection Class	IP20 (inside thermowell connection head)
EMC Compliance	EN 61326-1, NAMUR NE 21
Mounting	Standard DIN B / DIN A thermowell connection head (Ø 58 mm)
Dimensions	Ø 58 mm × approx. 22 mm (transmitter body, without display)
Weight	Approx. 80 g

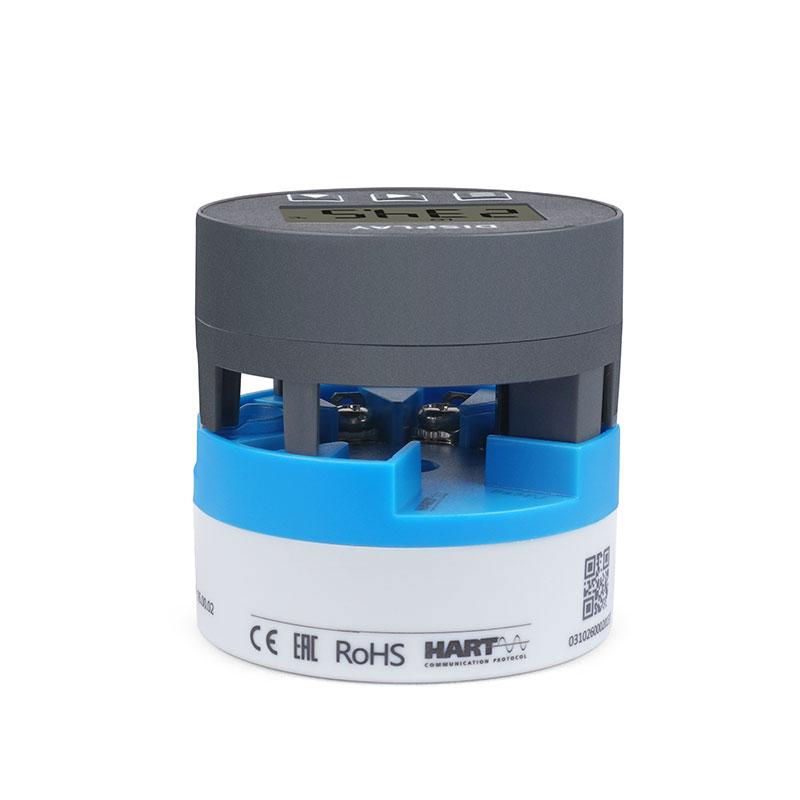

Certifications	CE, RoHS, HART 7 Certified (HART Communication Foundation)

The ordering code follows the format: TME 3 10 – [Input] [Accuracy] [Hazardous Area] [Option]

Code Segment	Description	Options / Value
TME	Product Series	Head-mounted TxE series temperature transmitter by Xiamen Maxwell Automation
3	Communication Protocol	3: HART 7 communication protocol
10	Output & Display	10: 4-20mA analog output with integrated LCD display
A	Input — Universal	A: Universal input (RTD + Thermocouple + mV + Resistance)
R	Input — RTD Only	R: RTD only input (Pt100, Pt1000, Ni100, Cu50, etc.)
T	Input — TC Only	T: Thermocouple only input (Type B, E, J, K, N, R, S, T)
0	Accuracy — Standard	0: Standard accuracy (±0.1°C for Pt100)
1	Accuracy — High	1: High accuracy (±0.05°C for Pt100)
N	Hazardous Area — None	N: No explosion protection (Standard industrial use)
E	Hazardous Area — ATEX	E: ATEX / IECEx certified (Ex ia intrinsically safe)
F	Hazardous Area — FM/CSA	F: FM / CSA certified (North American market)
N	Option — Standard	N: No additional option (Standard configuration)
D	Option — Dual Sensor	D: Dual sensor input (Primary + backup sensor for redundancy)
H	Option — High Temp	H: High temperature version for elevated ambient environments

Common Ordering Codes — TME310 Series:

Order Code	Description
TME310-A0NN	Universal input, Standard accuracy, No Ex, Standard — Most popular model
TME310-A1NN	Universal input, High accuracy (±0.05°C), No Ex, Standard
TME310-A0EN	Universal input, Standard accuracy, ATEX/IECEx (Ex ia), Standard
TME310-A0ND	Universal input, Standard accuracy, No Ex, Dual sensor backup
TME310-R0NN	RTD only input, Standard accuracy, No Ex, Standard
TME310-T0NN	Thermocouple only input, Standard accuracy, No Ex, Standard

Click on below link to download catalog, user manual for TME310-A0NN

TME310-A0NN Catalog

The TME310-A0NN series is a versatile and robust solution designed for precise temperature monitoring and control across a wide spectrum of industrial sectors. Its universal sensor input compatibility, HART 7 digital communication, and compact DIN B head-mount form factor make it an ideal choice for both new installations and retrofit projects in process industries worldwide.

Oil & Gas Processing: Temperature monitoring in pipelines, storage tanks, and refining processes where reliable remote communication and diagnostics are essential.

Chemical & Petrochemical Plants: Precise control of reactor temperatures, distillation columns, and heat exchangers in corrosive and hazardous environments.

Power Generation: Monitoring cooling water, steam lines, and bearing temperatures in power plants, turbines, and utility facilities.

Food & Beverage Industry: Ensuring strict temperature compliance in pasteurization, brewing, and sanitary processing environments requiring hygienic measurement.

Pharmaceutical Manufacturing: High-accuracy temperature logging for sterilization, fermentation, and clean-in-place (CIP) systems with full audit trail via HART.

Water & Wastewater Treatment: Monitoring fluid temperatures in treatment basins, pumping stations, and distribution networks.

Pulp & Paper Production: Temperature control in digesters, bleaching processes, and drying sections requiring rugged, long-term stable instruments.

General Manufacturing & OEM: Integration into custom machinery, industrial ovens, furnaces, and automated process skids requiring standard DIN B head mounting.
