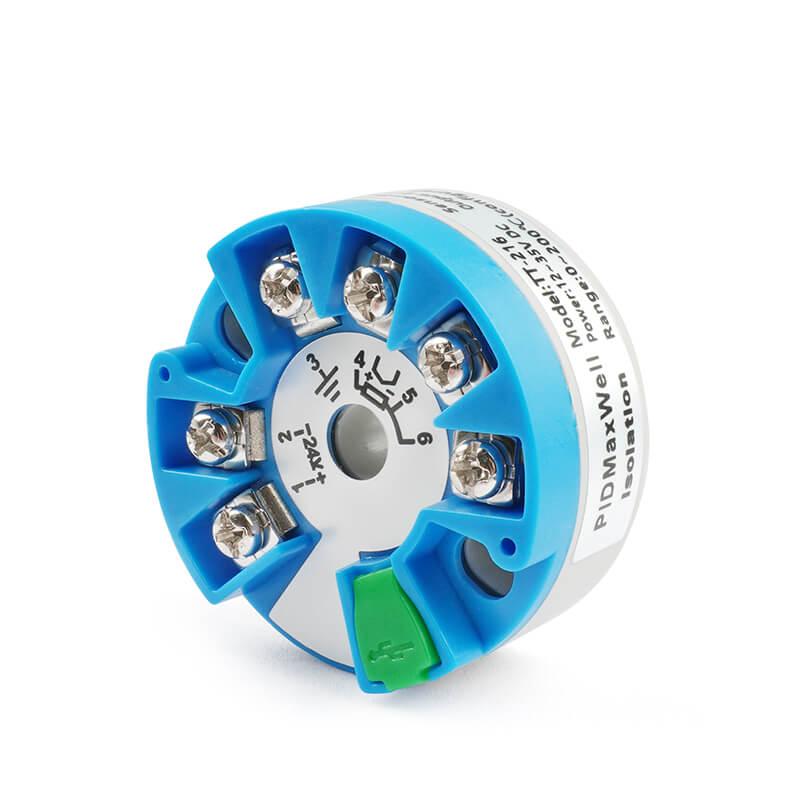

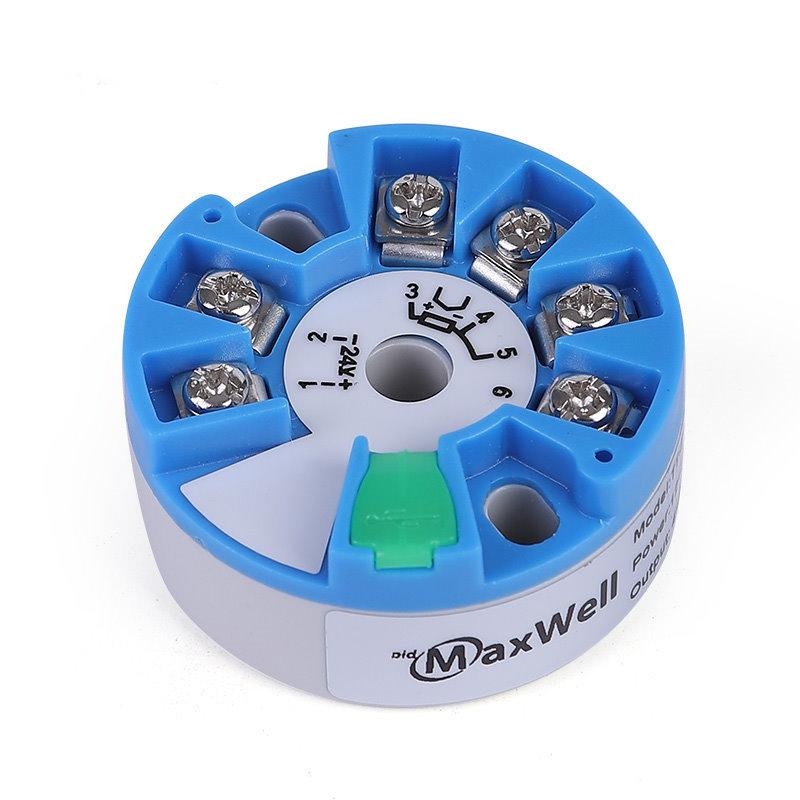

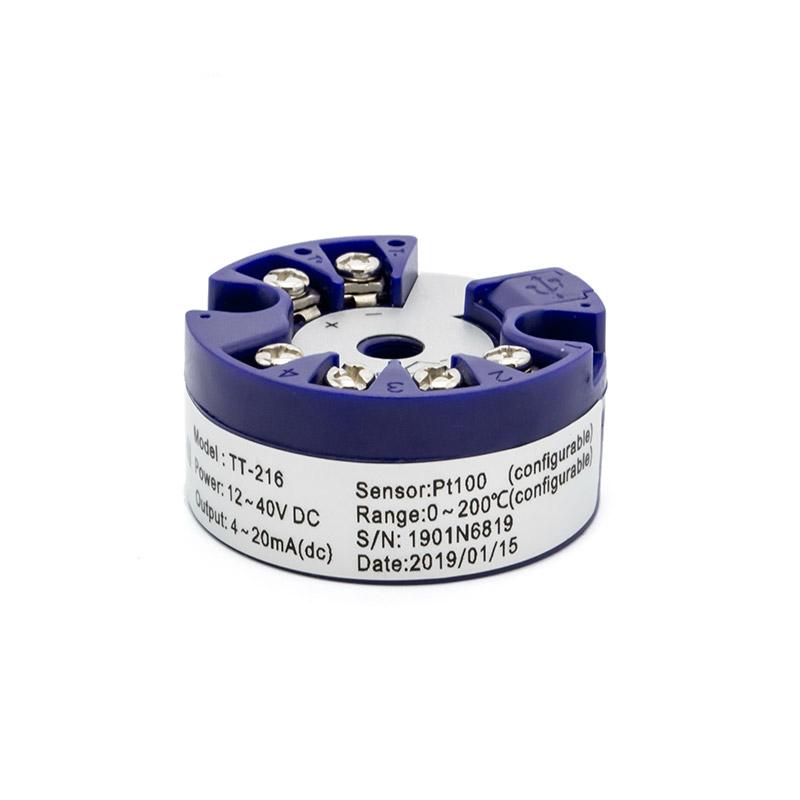

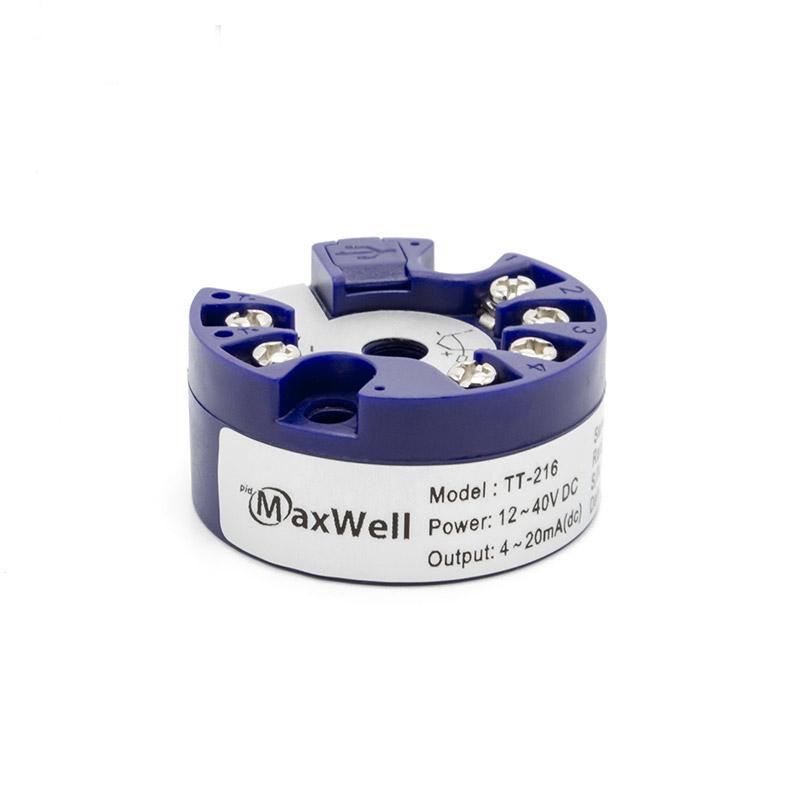

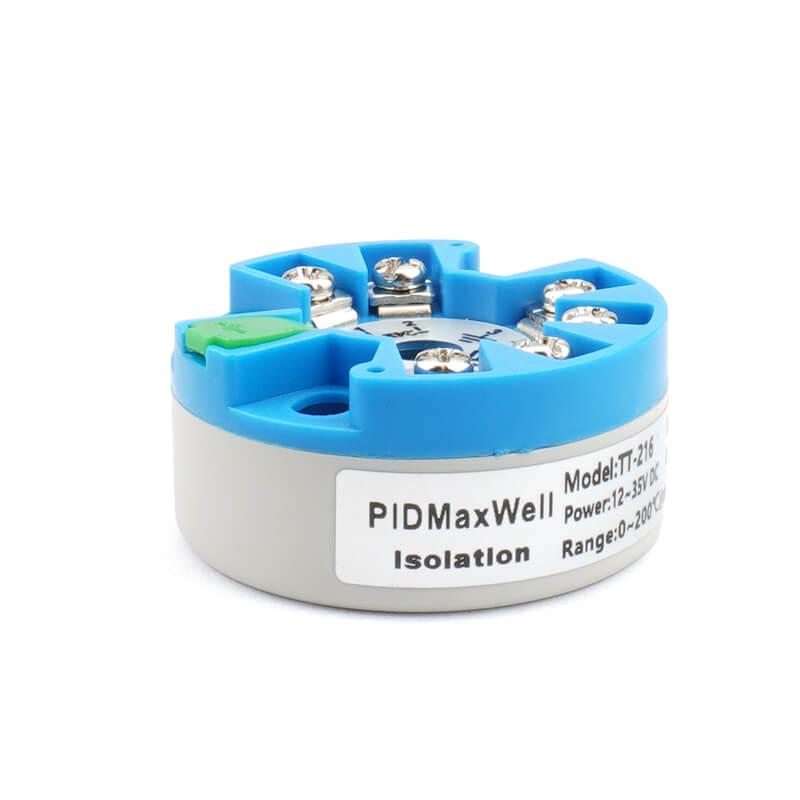

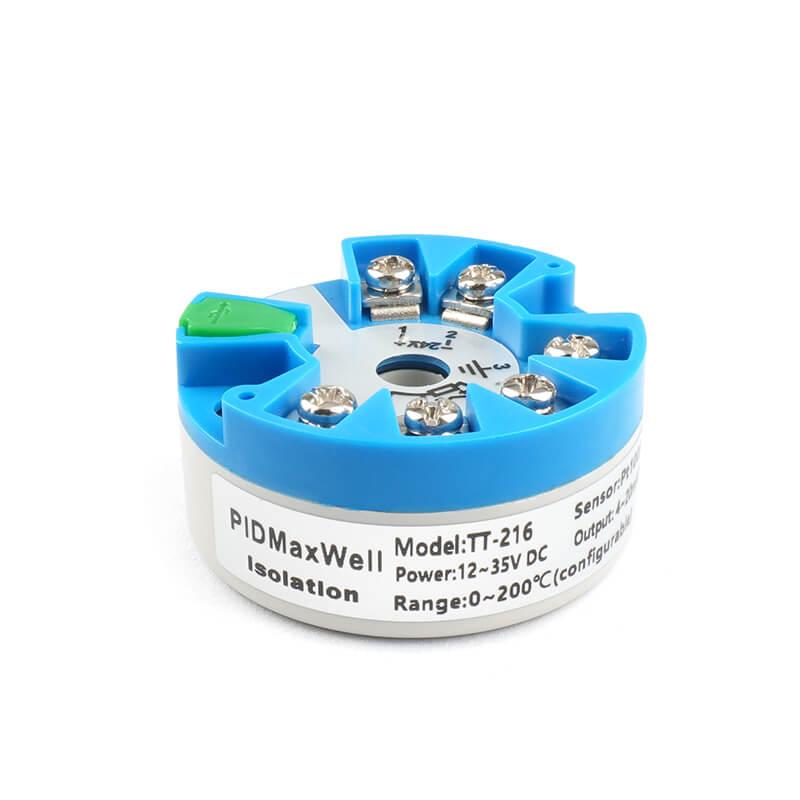

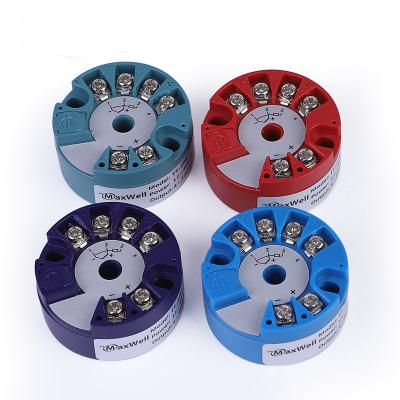

Galvanically isolated head mounted temperature transmitter

-Key features

- Head mounted hockey puck, compatible with DIN B junction box
- Works with thermocouple and RTD inputs
- Universal input, support RTD:Pt100, Cu50, Cu100
Thermocouple:K,J,E,T,S,R,B,N,
- 12~35VDC power supply, input/output/power supply galvanically isolated
- 0.1%F.S accuracy for RTD input, 0.2%F.S accuracy for thermocouple input
- Input and range configurable via PC and software
- 4-20mA output 2 wires, loop powered
- White and blue housing
- Private label available on request
- CE comply
- Load capacity.: ≤500Ω
- Temperature drift≤25ppm/℃ F.S
- Working temperature.:-30－80℃
- Maximum output.: 20.8mA
- Storage temperature.: PA66
- Mounting screw.: M3*2

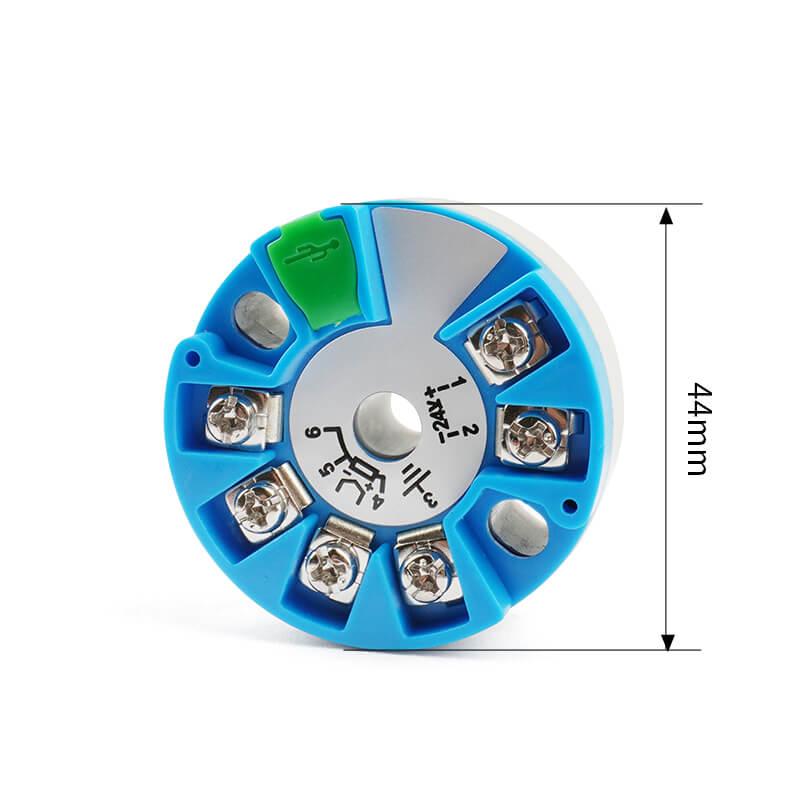

-Size and dimension of the TT-216



-Installation of the unit



-Wiring diagram of TT-216, support TC/RTD input, works with 2 wires and 3 wires RTD sensors

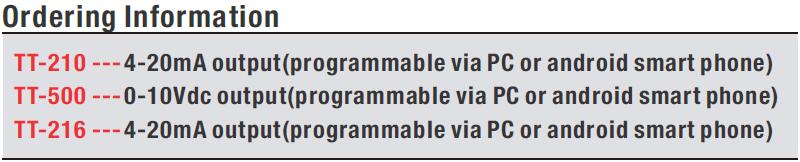

Remark.: TT-216 uses the same configuration software as the TT-210, the only difference is that TT-216 with isolation hardware inside
