TT-200 Head Mount Non-Isolation Temperature Transmitter

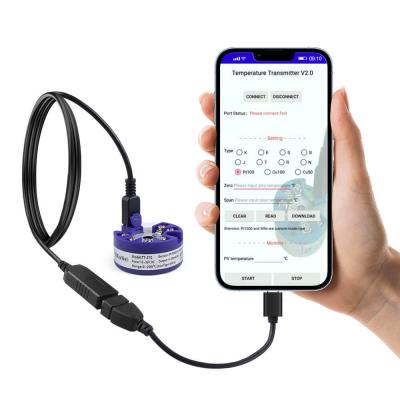

TT-210 and TT-500 is 0-10V 4-20mA hockey puck head mounted Temperature transmitter, it accepts all kinds of thermocouple and RTD inputs and coverted them into an analog signal such as 4-20mA and 0-10Vdc, this head mount temperature transmitter is a two wire loop powered transmitter, which can be mounted to temperature sensor junction box. the input is configurable via PC and android cell phone. Configurable via cell phone is a great features to have as everybody carries a smart phone nowdays, which means the configuration can be conducted almost anytime anywhere

TT-216 is an input and output galvanically isolated head mounted temperature transmitter, similar to other models we have, this model works with all thermocouple and RTD inputs, but to make sure your site are on the safe side, the isolation is incorporated in this transmitter, the input and range are also programmable via our computer and cell phone software.the input is configurable via PC and android cell phone.

HART® is a worldwide known protocol which has been proven to be reliable and robust, TT-217 equipped with HART 7, put the electrical isolation between input and output and source, the configuration can be done via our free windows software, a HART to USB modem will be needed if you want to configure the temperature transmitter via PC, another option is to configure the unit by using various Hart field communicator.

- head mount Modbus RS-485 temperature transmitter- TC/RTD inputs- 12-35V DC source- Modbus RTD RS-485 communication- Electrical isolation between input/output and source- PA66 housing

● Screw-in nozzle thermocouple type● M6,M8, ¼ BSP, 1/4NPT etc● Stainless steel ,silicon wire, Teflon wire etc● Available with grounded and ungrounded configuration● 304,316,310 Stainless steel, brass and Alumimun● High temperature-resistant compensating cable, PVC cable, Silicone cable, PTFE cable, metal braiding cable with mica- fiber, metal braiding cable with glass-fiber.

● Digital programmable timer● 48mm*48mm,72mm*72mm,96mm*96mm● Panel mount type● Dry contact, NPN input● Maximum 4 outputs(Relay or SSR Drive)● 85~265Vac or 24VDC source● Perfect for Ozone generators, can control up to several loads

•8 channel AC current true RMS ammeter•Din Rail mount, Can be used in temperature control system with to detect the True RMS current value•24VDC source•Maximum 400A measurement range

MTC-P ramp and soak PID profile multile steps controller is a advanced temperature controller, the process value changed based on predetermined ramping rate and soak rate. process value changes based on a curve over time, the output can be Relay to drive an AC contrator, or SSR Drive to drive an external solid state relay, or 4-20mA analog outputs, maximum 4 patterns with each pattern at maximum 8 segments, 4 pattern can be linked together as 1 program with 32 segements. this controller is suitable for application like muffle furnace, high temperature furnace, klin control etc.
