Head Mount 4-20mA 0-10Vdc Temperature Transmitter

Head Mount 4-20mA 0-10Vdc Temperature Transmitter

-Key features

  Programmable via PC and celll phone

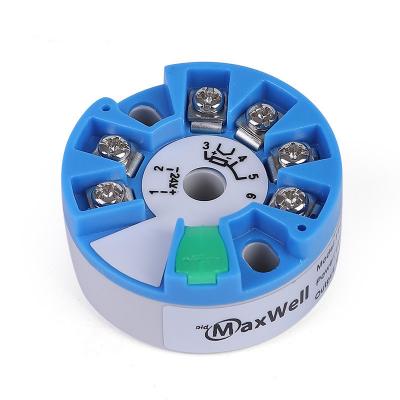

- Head mounted hockey puck temperature transmitter with 0-10VDC and 4-20mA output. loop-powered
- P100,Cu50,Cu100,T,E,J,K,N,R,S,B, these inputs are supported by default, input PT1000 and WRe sensor can be custom made if you need

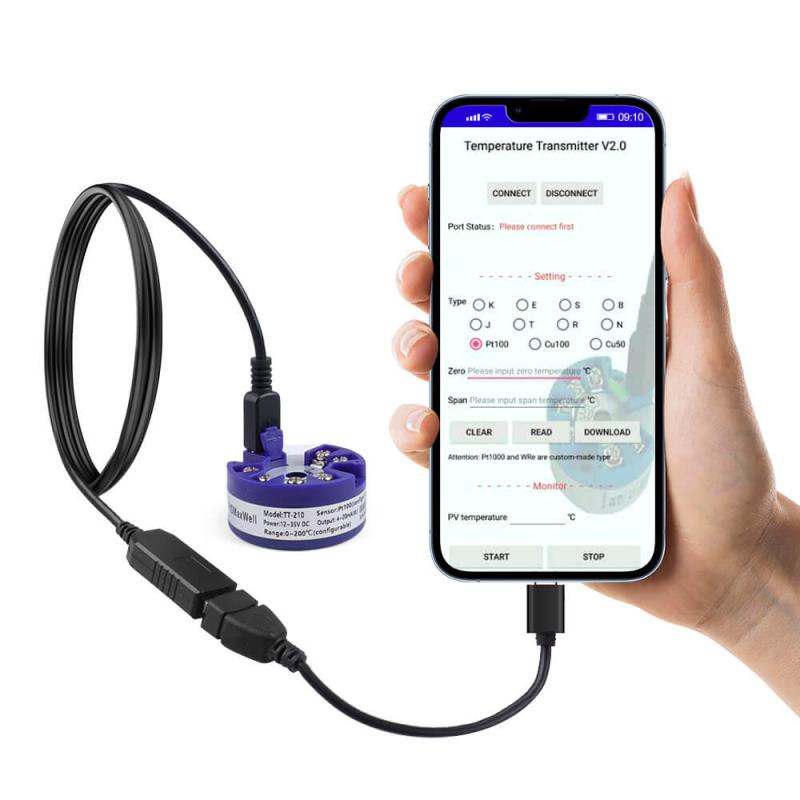

- Input and range configurable via PC or android smart phone, most of transmitter is only configurable from PC, this model can be configured from your smart phone which makes it very easy to program because everybody carries a smart phone nowadays
- 12~35VDC 2 wires loop-powered
- Input output non-isolation
- 0.2%F.S accuracy for Thermocouple input, 0.1%F.S accuracy for RTD input.
- Maximum output 20.3mA
- Load capacity, less than 500 ohm
- Storage temperature -40℃~120℃
- Temperature drift≤25 F.S*ppm℃
- Housing material.: PA66
- Operating temperature -30℃~80℃
- Screw for mounting.: M3*2
- Different housing color,Red,Navy Blue,Green,White, you can have a color you want.
- Private label available on request

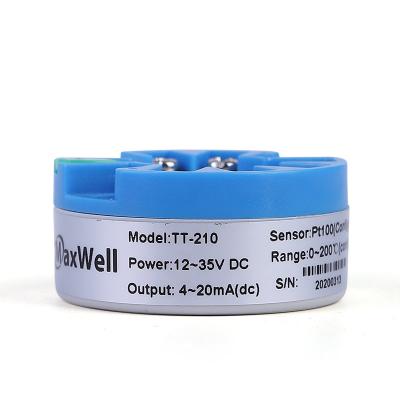

- Model number TT-210 and TT-500
- CE comply

-Size and dimension of the TT-210 and TT-500



-Installation of the unit



-Wiring diagram of TT-210, support TC/RTD input, works with 2 wires and 3 wires RTD sensors

-Wiring diagram of TT-500, support TC/RTD input, works with 2 wires and 3 wires RTD sensors

-Output wiring diagram for 0-10VDC output, the output wiring is different between 0-10VDC and 4-20mA.
The 0-10Vdc output and the power source shares the same negative terminal 2
