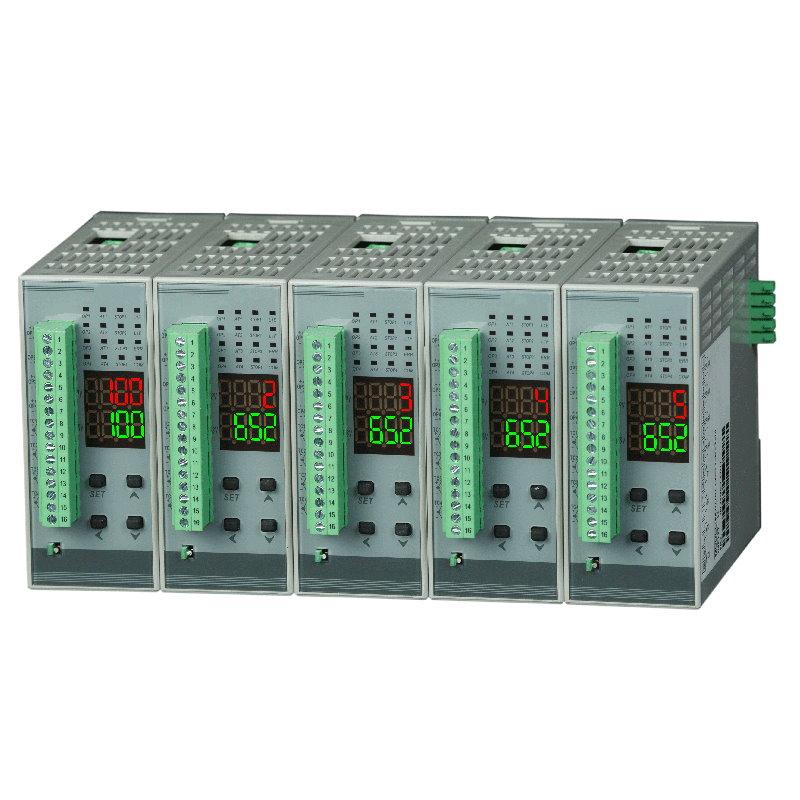

Four Channel 4 Output DIN Rail Mount Temperature Controller

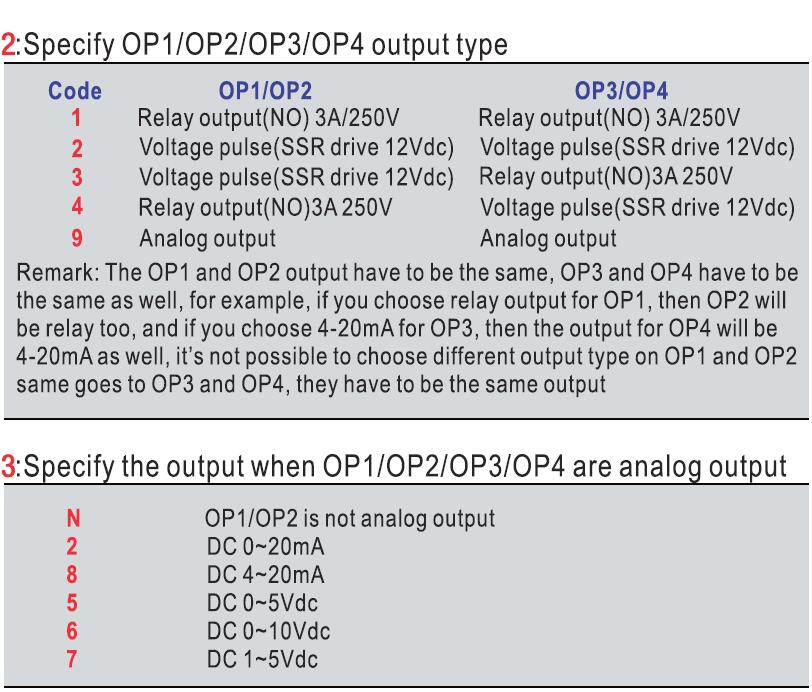

Maxwell DR04D is a din rail mount PID temperature controller, 4 channel configuraitons, support thermocouple inputs(K,E,J,N,W,S,T,R,B), and output can be Relay, SSR Drive, or analog like 4-20mA, 0-10VDC, PID or ON/OFF control mode, RS-485 modbus communication as standard features, 24VDC source for greater saftey, auto/manual control switchable, when you have a sensor failure, the system can be quickly switched to manual control mode to maintain the temperature, soft-start and run/stop features.

  • Brand:

    MAXWELL
  • Item no.:

    DR04D
  • Min order:

    1 PCS
  • Product weight:

    200g

Four Channel 4 Output DIN Rail Mount Temperature Controller

-Key features

● Four channel 4 outputs
● 4 main outputs
● C/F display selectable
● Maximum 15 units can be daisy chained and share the same source
● Wiring on the RS-485 and power source can be done at once together

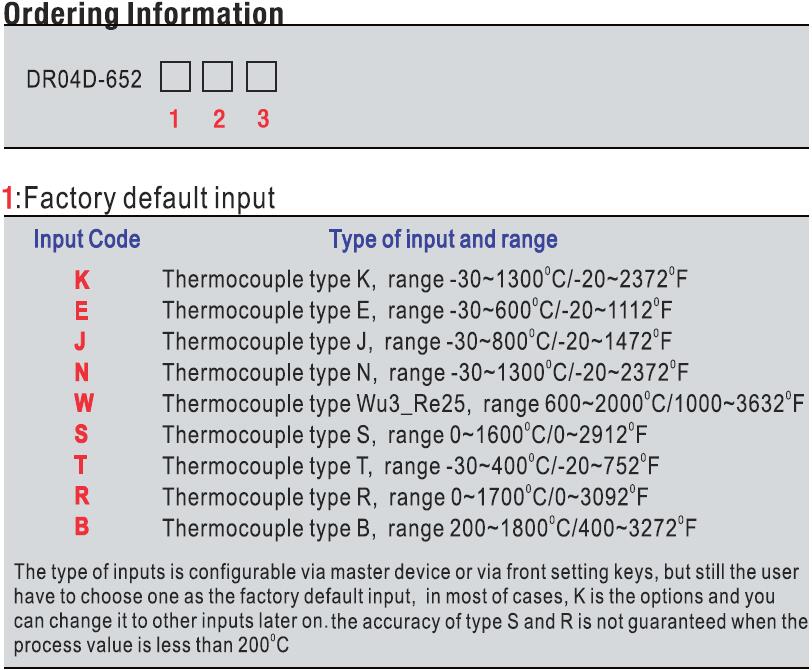

● K,E,J,T,S,R,N,B,Wu3_Re25 input
● Heating or cooling configurable on each channel
● PID or ON/OFF control mode
● 0.3%F.S accuracy.
● Auto/manual control bumpless transfer for each channel
● Soft-start for analog output
● RUN/STOP function
● Output high/low limit configuration

-Click below for the catalog and user manual

Catalog-(DR04D, 4 channel DIN rail mount temperature controller)
User manual-(DR04D, 4 channel DIN rail mount temperature controller)
