PID temperature controller with timer

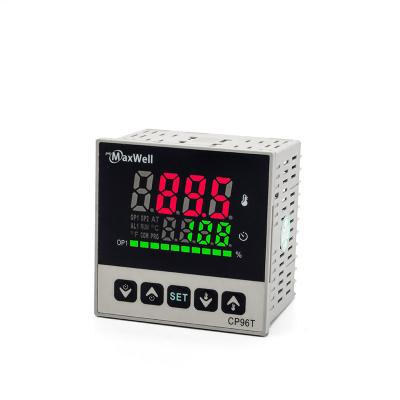

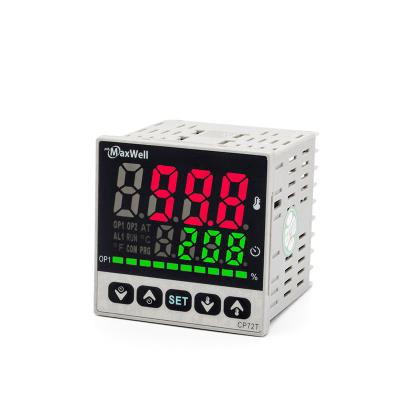

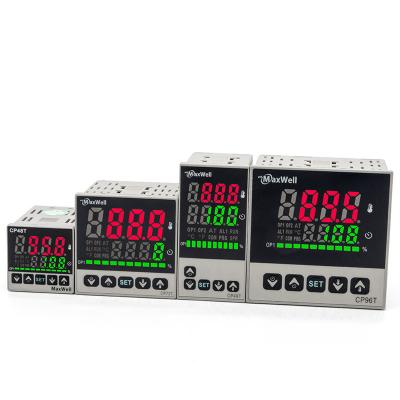

Maxwell CP48T,CP72T,CP96T,CP49T is a 2 in1 temperature controller with timer, time and temperature are two variables that often involved in a heating relateble applications, a typical application such as heat press printing, food and beverage process, the timer and controller are actually two devices and built-in one

Item no.:
CPXT
Payment:
T.T, Credit Card, Paypal etc, to be negotiat
Color:
Grey housing, black front facia
Goods stock:
500
Min order:
1 PCS
Product weight:
170 g-350 g
Lead Time:
3-15 days depends on the order

Inquiry now

PID temperature controller with timer

-Key features

A panel mount temperature controller and timer 2 in1 controller. the timer can be triggered anytime you want, and it have to be triggered externally via a switch, there is no correlation between the timer and controller besides the fact that there were built together in one housing.

● Dual line 4 digits display
● Temperature controller wtih timer
● Timer triggered manually
● Timer triggered via external switch
● Timer reset via external switch
● Timer counting up or down
● Timer unit can be seconds or minutes
● PID ON/OFF mode
● RS-485 Modbus RTU
● Perfect for heat press transfer etc
● CE comply

The upper display is for temperature indication, lower display is for time indication, with 5 push buttons

-Temperature control
The controller support Thermocouple and RTD inputs, SSR drive , relay output, no alarm, RS-485 modbus optional

-Timer
Timer can be triggered externally with a dry contact switch, such as a foot switch. and a buzzer can be connected to the timer, when timer finish the cycle, the buzzer will go off and make some noises. connect a switch between termianl 7 and 8 can trigger the timer, another switch can be connected to terminal 8 and 10 for reset purpose.

Click on below link to download documents

CPXT Series Catalog
CPXT Series User Manual
CPXT Series RS-485 registry list
