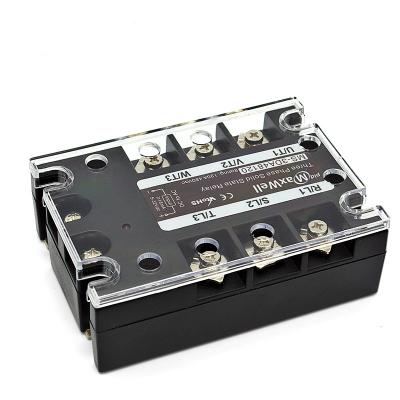

Three phase DC input AC load SSR for resistive load

● Three phase solid state relay● 3-32Vdc input● 24~480Vac load● From 10 amps up to 200 amps● Zero-crossing trigger

● Three phase solid state relay● 90~280Vac Input● 24~480Vac load● From 10 amps up to 200 amps● Zero-crossing trigger

● Three phase solid state relay● 90~280Vac Input● 24~480Vac load● From 10 amps up to 200 amps● Zero-crossing trigger

The MKD2 Series is a single-phase, dual-channel, DC-controlled AC solid state relay (SSR) designed for reliable, silent switching of resistive and inductive AC loads in industrial and commercial control systems. Each unit houses two independent switching channels within a single compact black housing, enabling two separate AC loads to be controlled simultaneously from a single device — saving panel space and wiring time compared to installing two separate SSRs. The MKD2 accepts a DC control voltage of 4–32 VDC, making it directly compatible with PLC outputs, microcontroller I/O, and standard industrial control signals. The AC load side supports voltages from 24 to 480 VAC, covering 110 V, 220 V, 380 V, and 480 V systems worldwide. Load current ratings of 25 A, 40 A, 60 A, and 80 A are available, with all variants sharing the same physical footprint for easy interchangeability. Zero-crossing trigger technology ensures that switching occurs at the natural zero-crossing point of the AC waveform, minimising electrical interference (EMI) and extending the service life of both the relay and the connected load. Individual LED status indicators for each channel provide instant visual confirmation of relay state, simplifying commissioning and fault-finding. The unit is CE certified and constructed from fire-retardant ABS with a dielectric strength of 2500 Vrms between input, output, and base.

  The Maxwell MS-1VD2238 Series is a highly cost-effective, high-accuracy single-phase isolated SCR power regulator designed for precise phase angle control. Featuring a versatile multi-input design, this advanced thyristor module simultaneously supports 0-5Vdc, 0-10Vdc, 4-20mA, and potentiometer control signals without requiring hardware modifications. Engineered with optical isolation between the input and output circuits, it ensures maximum operational safety and signal integrity. Available in a wide current range from 10A to 200A for both 220Vac and 380Vac loads, the MS-1VD2238 series incorporates a built-in soft start circuit and an internal buffer (snubber) to protect against voltage surges. Housed in a durable, fire-retardant enclosure with resin sealing, this panel-mounted regulator is the ideal solution for controlling resistive heating elements in demanding industrial environments.

● Digital programmable timer● 48mm*48mm, LCD display,6 digits● Display format,00.00.00, seconds,minutes,hours● Panel mount type● Dry contact, NPN input● Maximum 4 outputs(Relay or SSR Drive)● 85~265Vac or 24VDC source

● Screw-in nozzle thermocouple type● M6,M8, ¼ BSP, 1/4NPT etc● Stainless steel ,silicon wire, Teflon wire etc● Available with grounded and ungrounded configuration● 304,316,310 Stainless steel, brass and Alumimun● High temperature-resistant compensating cable, PVC cable, Silicone cable, PTFE cable, metal braiding cable with mica- fiber, metal braiding cable with glass-fiber.

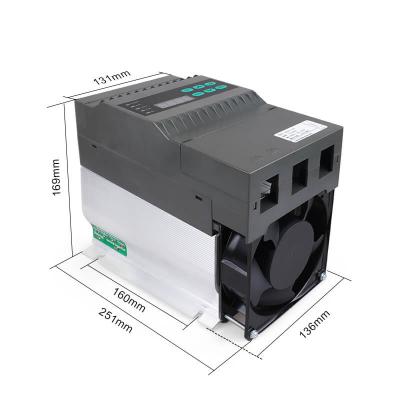

This is a single phase SCR power regulators and temperature controllers 2 in 1 units, in a typical heating system, you would need a temperature controller and a SCR power regulators, and they are two separate devices, we go further and build this two devices in one package, this saves a lot of efforts for panel builders when it comes down to wiring, and RS-485 modbus is a standard feature, controller can be integrated to systems with HMI or PLC etc. the load can be directed wired to this thyristor power regulators, and it works with all kinds of inputs, Thermocuple, RTD, analog signal
