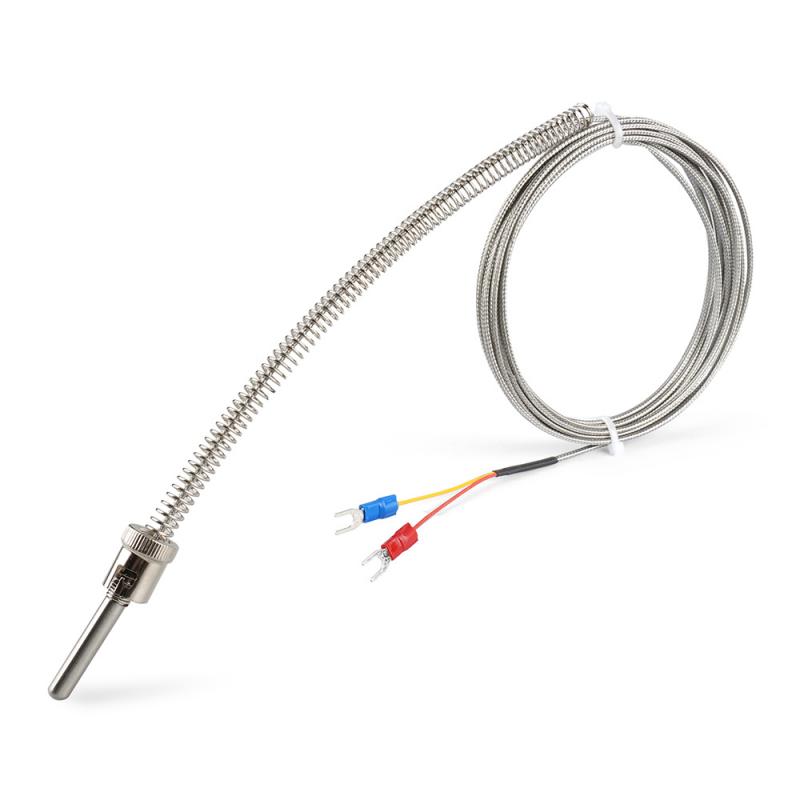

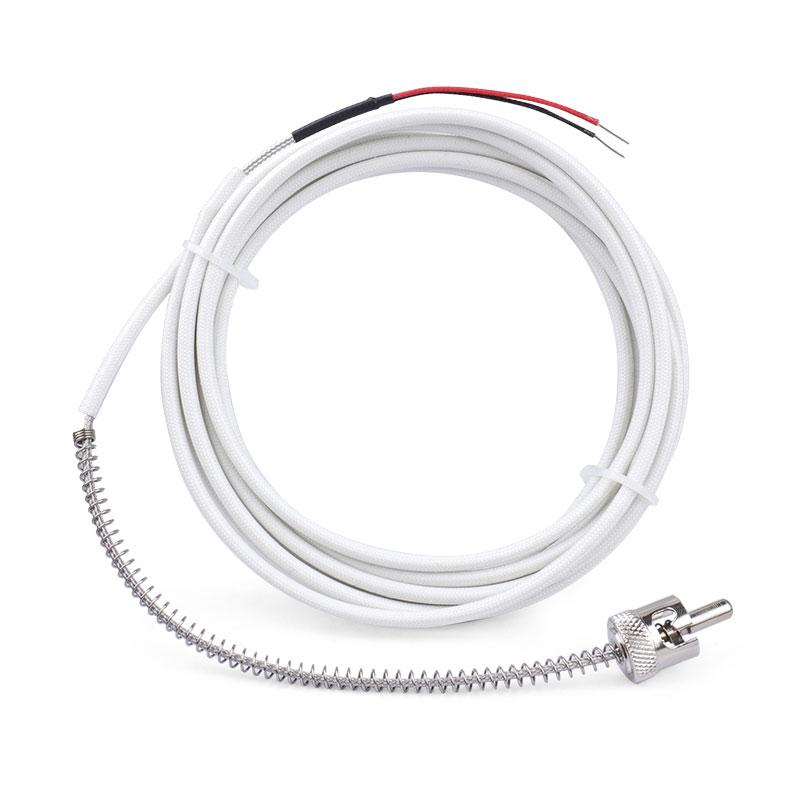

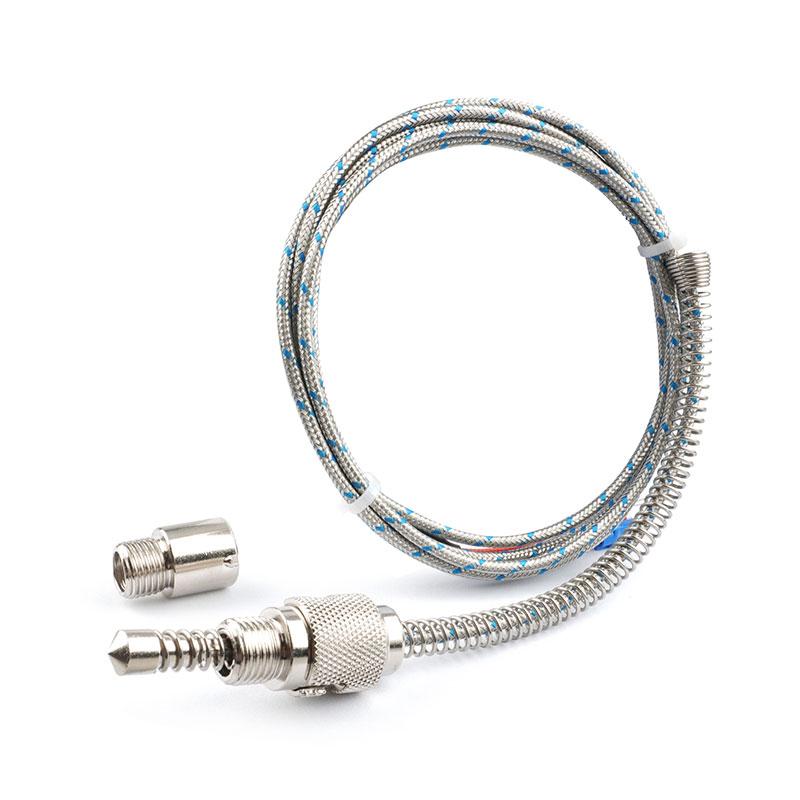

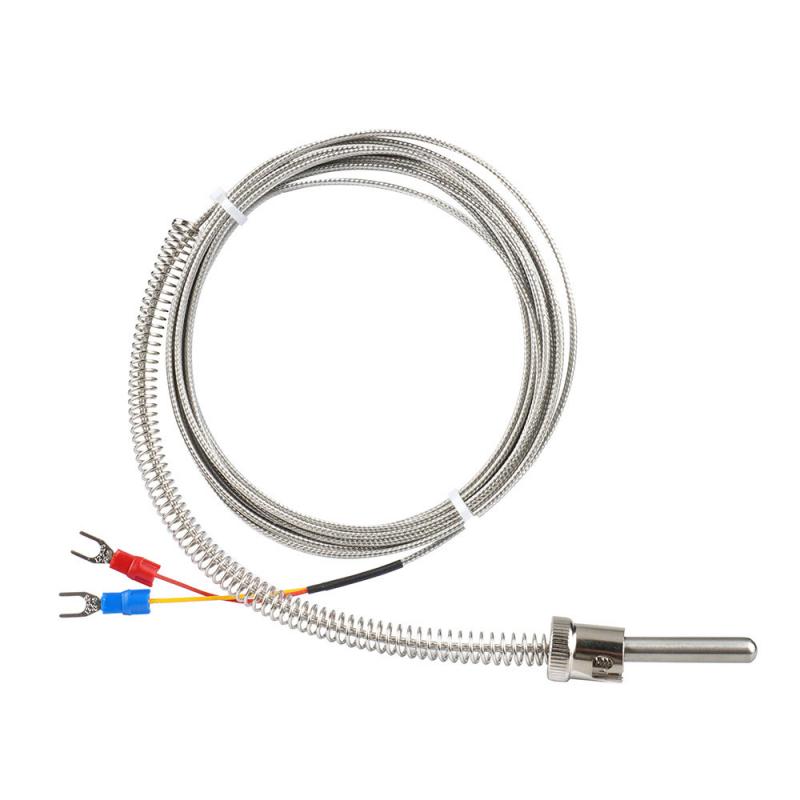

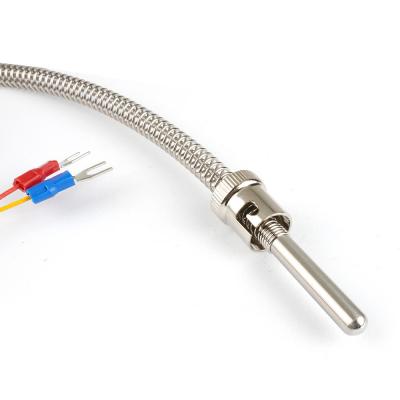

Spring loaded adjustable thermocouple type K/J

Maxwell introduces a high-performance Bayonet Type K/J Thermocouple designed forprecise and secure temperature measurement in demanding industrial environments. Thissensor features a robust bavonet cap with a threaded spring for constant contact pressureand easy installation, making it ideal for applications requiring frequent sensor removaland reinstallation. The armored cable provides enhanced durability and protection againstmechanical stress and abrasion. ensuring reliable operation and extended service life.Available in both Type K and Type J configurations, this thermocouple offers accurate andconsistent temperature readings for critical process control.

Brand:
PIDMaxWell
Item no.:
TC-K6/J6
Payment:
T.T, Credit Card, Paypal etc, to be negotiate
Market price:
$8
Price:
$10
Product origin:
Made in China
Color:
Silver, white, blue
Min order:
10 PCS
Product weight:
0.1kg
Lead Time:
14 days after payment confirmed

Inquiry now

Key Features

Sensor Type: Type K or Type J Thermocouple (2-wire configuration)
Bayonet Cap: Threaded spring-loaded bayonet cap for secure mounting and optimalcontact.
Cable: Armored (braided metal) cable for superior mechanical protection and durability
Probe Material: Stainless Steel for corrosion resistance and longevity.
Customizable: Optional probe length, diameter, and bayonet cap size to meet specificapplication requirements.
Terminals: Equipped with fork terminals for secure and easy electrical connection.

Technical Specifications

Feature	Details
Sensor Type	Type K or Type J Thermocouple
Wire Configuration	2-wire
Lead Wire Material	Armored (Braided Metal)
Probe Material	Stainless Steel
Bayonet Cap Size	Optional (e.g., M12, M10, 1/4"NPT, custom sizesavailable)
Probe Diameter	Optional (e.g., 3mm, 4mm, 5mm, 6mm, customsizes available)
Probe Length	Optional (e.g., 50mm, 100mm, 150mm, 200mm,custom lengths available)
Terminal Type	Fork Terminals
Accuracy	Standard Type K/J Thermocouple accuracy (refer to lEC 60584 for specific tolerances）
Operating Temperature	Varies based on probe and lead wire specifications (Armored cable typically ratec for higher temperatures, consult datasheet)

To order, please specify the desired sensor type (K or J), bayonet cap size, probe diameter.and probe length. Our sales and technical support team are available to assist you inselecting the optimal configuration for your specific needs.

Click on below link to download catalog, user manual for TC-K7/TC-J7

TC-K7 Catalog

Potential Applications

This Bayonet Type K/J Thermocouple is particularly well-suited for applications requiringrobust and easily replaceable temperature sensors, including:

Plastics Processing Machinery: Extruders, injection molding machines, and hot runners.
Packaging Equipment: Temperature control in sealing and forming processes.
Industrial Ovens & Furnaces; Monitoring temperatures in heat treatment and curing.
Rubber Manufacturing: Temperature sensing in vulcanization and molding.
Die Casting: Temperature measurement in molds and dies.
