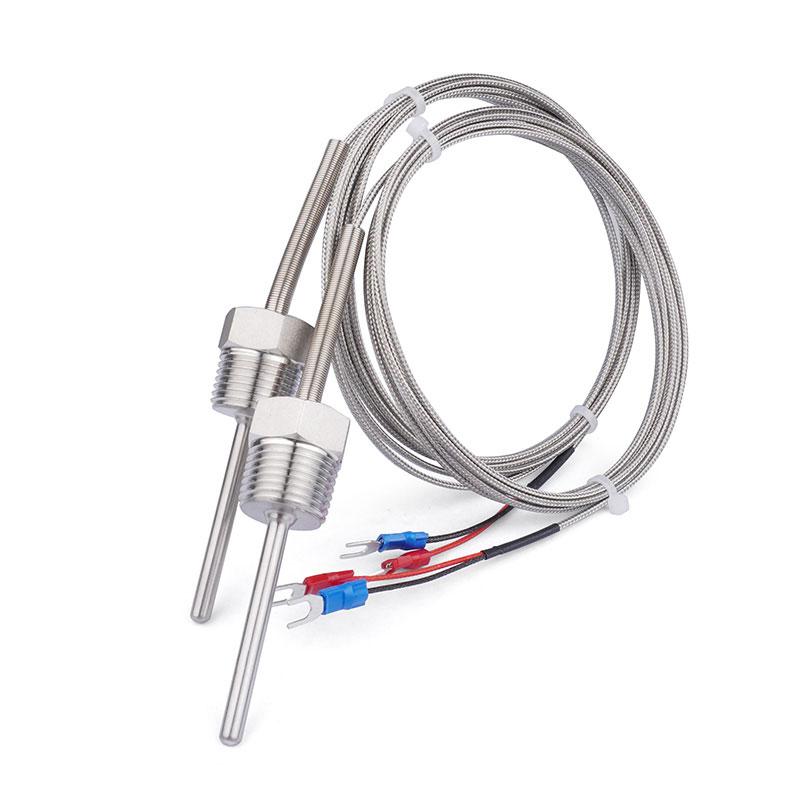

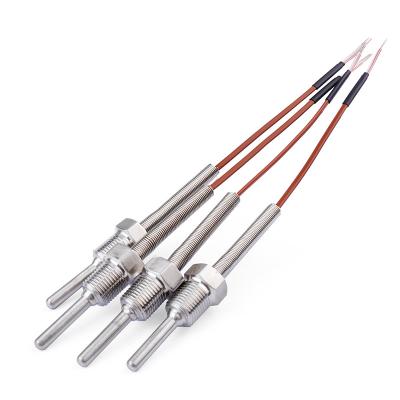

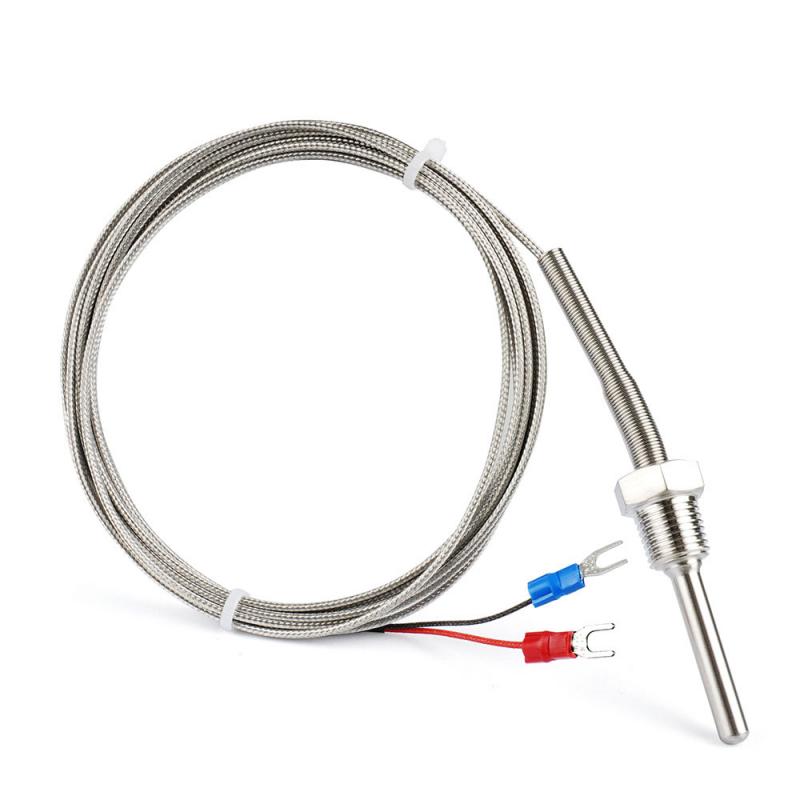

Probe type thermocouple K,J,T,E with process fittings

● Screw-in nozzle thermocouple type● M6,M8, ¼ BSP, 1/4NPT etc● Stainless steel ,silicon wire, Teflon wire etc● Available with grounded and ungrounded configuration● 304,316,310 Stainless steel, brass and Alumimun● High temperature-resistant compensating cable, PVC cable, Silicone cable, PTFE cable, metal braiding cable with mica- fiber, metal braiding cable with glass-fiber.

● Screw-in nozzle thermocouple type● M6,M8, ¼ BSP, 1/4NPT etc● Stainless steel ,silicon wire, Teflon wire etc● Available with grounded and ungrounded configuration● 304,316,310 Stainless steel, brass and Alumimun● High temperature-resistant compensating cable, PVC cable, Silicone cable, PTFE cable, metal braiding cable with mica- fiber, metal braiding cable with glass-fiber.

Maxwell introduces a high-performance Bayonet Type K/J Thermocouple designed forprecise and secure temperature measurement in demanding industrial environments. Thissensor features a robust bavonet cap with a threaded spring for constant contact pressureand easy installation, making it ideal for applications requiring frequent sensor removaland reinstallation. The armored cable provides enhanced durability and protection againstmechanical stress and abrasion. ensuring reliable operation and extended service life.Available in both Type K and Type J configurations, this thermocouple offers accurate andconsistent temperature readings for critical process control.

Maxwell introduces the high-performance TC-K7 and TC-J7 Series Bayonet Thermocouples, engineered for precise and secure temperature measurement in demanding industrial environments. These sensors feature a robust threaded spring-loaded bayonet cap for constant contact pressure and easy installation, making them ideal for applications requiring frequent sensor removal and reinstallation. Available in both Type K and Type J configurations with fully customizable options including probe diameter, length, lead wire material, and junction type, our TC-K7 / TC-J7 Series delivers accurate and consistent temperature readings for critical process control across plastics, packaging, chemical, and food processing industries.

The TC-K8 is a high-performance K-type thermocouple temperature sensor engineered for accuracy and durability in demanding high-temperature environments. Its defining feature is a robust ceramic sheath that provides exceptional resistance to thermal shock, chemical corrosion, and oxidation at elevated temperatures — making it the preferred choice for industrial processes such as kiln firing, furnace monitoring, and heat treatment operations. The sensor consists of two distinct probe sections: a stainless steel section that connects to the connection box, and a ceramic section that extends into the high-temperature measurement zone. This dual-material construction combines the mechanical strength and machinability of stainless steel with the superior thermal stability and chemical inertness of advanced ceramic materials. The integrated die-cast aluminum connection box provides a secure, weatherproof enclosure for the thermocouple terminals, protecting electrical connections from moisture, dust, and mechanical interference. Both the probe diameter and probe length of each section are fully customizable, enabling precise adaptation to virtually any industrial installation geometry. As part of the PIDMaxWell range of temperature measurement solutions, the TC-K8 is designed to integrate seamlessly with PID temperature controllers, temperature transmitters, and data acquisition systems.

The TC-K14B is a fast-response K-type thermocouple engineered for applications where rapid, accurate temperature measurement is essential. Unlike conventional sheathed thermocouples, the TC-K14B features an exposed welded-bead junction with minimal thermal mass, enabling it to detect temperature changes within fractions of a second. This makes it the preferred choice for dynamic temperature monitoring tasks in research, testing, and industrial quality control environments. The sensor is constructed from a fine-gauge Chromel-Alumel (K-type) thermocouple wire pair, twisted together and insulated with a flexible fiberglass braid. The green-and-white color coding of the lead wire follows the international K-type thermocouple standard, providing clear polarity identification. The fiberglass insulation offers excellent thermal resistance and flexibility, allowing the sensor to be routed through confined spaces and around complex geometries without risk of insulation damage. At the instrument end, the TC-K14B is fitted with a standard miniature K-type quick-disconnect connector (green housing, labeled 'K NiCr+ / NiAl−'), which is compatible with a wide range of handheld thermometers, data loggers, and temperature indicators that accept the IEC 60584 / ANSI miniature thermocouple connector standard. The plug-and-play design eliminates the need for field wiring, enabling rapid deployment and sensor replacement without tools or specialist knowledge. The lead wire length is fully customizable, making the TC-K14B adaptable to installations where the measurement point is located at a significant distance from the instrument. As part of the PIDMaxWell range of temperature measurement solutions, the TC-K14B is designed to integrate seamlessly with PIDMaxWell PID temperature controllers, temperature transmitters, and compatible third-party instrumentation.

The TC-K14B is a fast-response K-type thermocouple engineered for applications where rapid, accurate temperature measurement is essential. Unlike conventional sheathed thermocouples, the TC-K14B features an exposed welded-bead junction with minimal thermal mass, enabling it to detect temperature changes within fractions of a second. This makes it the preferred choice for dynamic temperature monitoring tasks in research, testing, and industrial quality control environments. The sensor is constructed from a fine-gauge Chromel-Alumel (K-type) thermocouple wire pair, twisted together and insulated with a flexible fiberglass braid. The green-and-white color coding of the lead wire follows the international K-type thermocouple standard, providing clear polarity identification. The fiberglass insulation offers excellent thermal resistance and flexibility, allowing the sensor to be routed through confined spaces and around complex geometries without risk of insulation damage. At the instrument end, the TC-K14B is fitted with a standard miniature K-type quick-disconnect connector (green housing, labeled 'K NiCr+ / NiAl−'), which is compatible with a wide range of handheld thermometers, data loggers, and temperature indicators that accept the IEC 60584 / ANSI miniature thermocouple connector standard. The plug-and-play design eliminates the need for field wiring, enabling rapid deployment and sensor replacement without tools or specialist knowledge. The lead wire length is fully customizable, making the TC-K14B adaptable to installations where the measurement point is located at a significant distance from the instrument. As part of the PIDMaxWell range of temperature measurement solutions, the TC-K14B is designed to integrate seamlessly with PIDMaxWell PID temperature controllers, temperature transmitters, and compatible third-party instrumentation.

TT-216 is an input and output galvanically isolated head mounted temperature transmitter, similar to other models we have, this model works with all thermocouple and RTD inputs, but to make sure your site are on the safe side, the isolation is incorporated in this transmitter, the input and range are also programmable via our computer and cell phone software.the input is configurable via PC and android cell phone.
