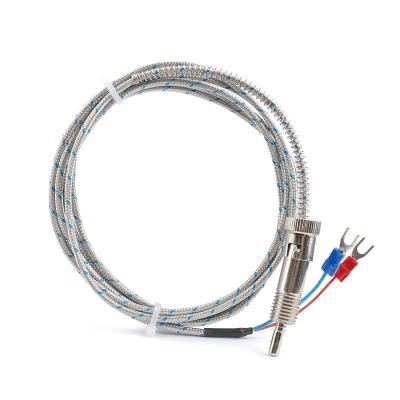

Maxwell introduces the high-performance TC-K7 and TC-J7 Series Bayonet Thermocouples, engineered for precise and secure temperature measurement in demanding industrial environments. These sensors feature a robust threaded spring-loaded bayonet cap for constant contact pressure and easy installation, making them ideal for applications requiring frequent sensor removal and reinstallation. Available in both Type K and Type J configurations with fully customizable options including probe diameter, length, lead wire material, and junction type, our TC-K7 / TC-J7 Series delivers accurate and consistent temperature readings for critical process control across plastics, packaging, chemical, and food processing industries.

The NTC10K Series is a compact, high-precision Negative Temperature Coefficient (NTC) thermistor temperature sensor housed in a rugged stainless steel M8 screw-body probe. Designed for direct installation into threaded ports on pipework, tanks, heat exchangers, and machinery, this sensor delivers accurate, low-cost temperature measurement across a wide operating range without the need for signal conditioning or cold-junction compensation.

At the heart of the sensor is a precision NTC thermistor element with a nominal resistance of 10 kΩ at 25 °C and a B-value (B25/100) of 3950 K ± 1%. The thermistor element is encapsulated within a 4 mm diameter stainless steel probe, sealed with high-temperature epoxy resin to ensure moisture ingress protection. The M8 threaded body incorporates a high-temperature silicone gasket to provide a leak-proof seal when installed into a threaded port. A 150 mm flat silicone lead wire terminates in a standard 2-pin SMP (Micro-Fit style) connector for fast, tool-free connection to the host system.

The NTC10K series is fully compatible with Maxwell's range of temperature controllers, as well as third-party controllers, HVAC control boards, and microcontroller-based systems that accept a passive NTC thermistor input. The sensor's small probe diameter, short lead wire, and plug-and-play connector make it an ideal drop-in component for OEM equipment manufacturers and system integrators.
