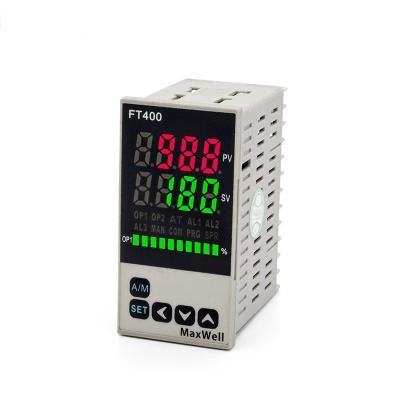

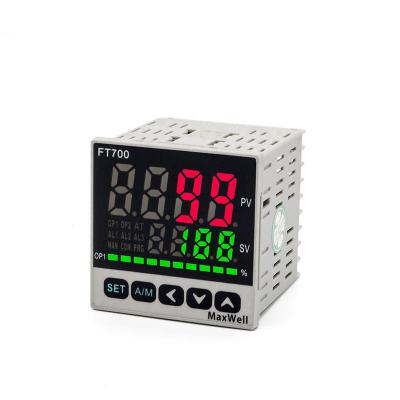

Temperature controller with delay timer

FTX00-B612 is a PID temperature controller with built-in timer, what it does is pretty straight forward, for application with time and temperature invovled, the timer will most likely to kick-in when temperature reach the setting value, for example, the setting value is SV, the process starts at the ambient temperature and temperature goes up to setting value, when temperature reach setting value, the timer start to counting down or up and hold the temperature at the SV for a preset time duration. this is very useful and widely being used in equipments like water bath, sterilizer, beer brewing, power oven coating machine etc. the maixmum time range 9999 minutes

Brand:
MAXWELL
Item no.:
FTX00-B612
Payment:
T.T, Credit Card, Paypal etc, to be negotiat
Color:
Grey housing, black front facia
Goods stock:
500
Min order:
1 PCS
Product weight:
170 g-350 g
Lead Time:
3-15 days depends on the order

Inquiry now

Temperature controller with delay timer

-Key features

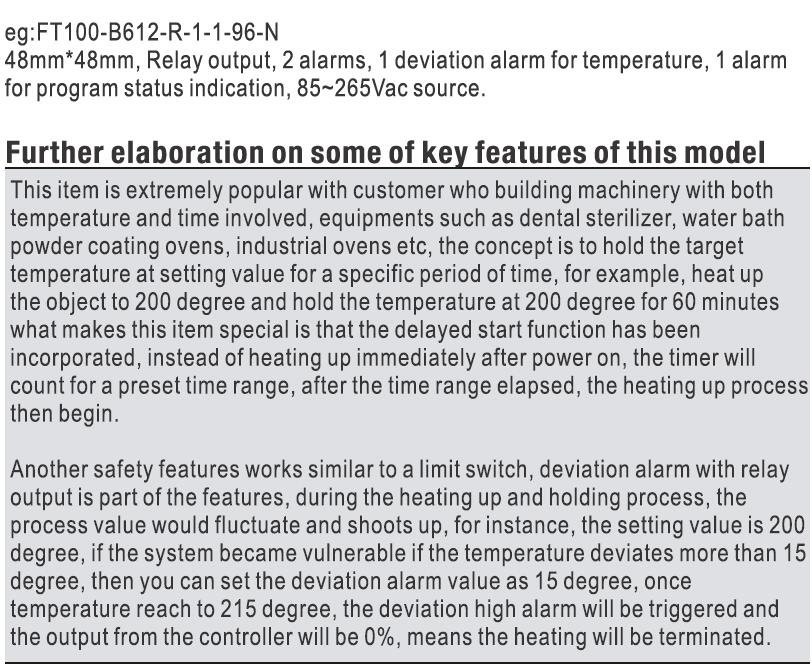

● This controller with timer has a unique feature which is delay start, you can turn on the controller and system when you leave the site, but the heating process will begin after certain period of delay time, and the delay time range is configurable from 0~9999 minutes
● Universal input(TC/RTD)
● Temperature controller with timer
● Timer range:0~9999 minutes
● Delay start range:0~9999 minutes
● Timer will be triggered after process value reach to preset value
● Process value deviation high alarm
● When deviation alarm triggered, the heating process will be terminated, this feature acts like a limit switch,
● Alarm 2 will be triggered after entire program finished
● C/F display selectable
● 0.3%F.S measuring accuracy
● Bar graphic display
● RS-485 available
● 24VDC source optional

Click on below link to download documents

FTX00-B612 Series Catalog
FTX00-B612 Series User Manual

Below is a quick start video tutorial on the programming of the controller, right after power on, you can set the delay time range, temperature setting value, and holding time( the time duration of which the temperautre will be maintained at)
