Omron Style DC Input AC Load SSR

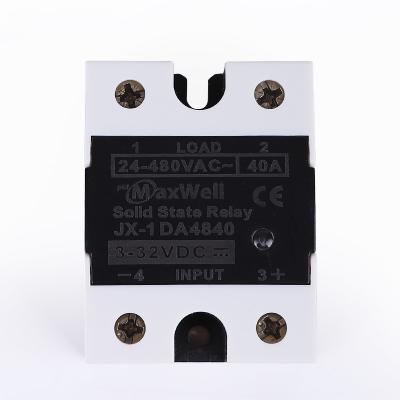

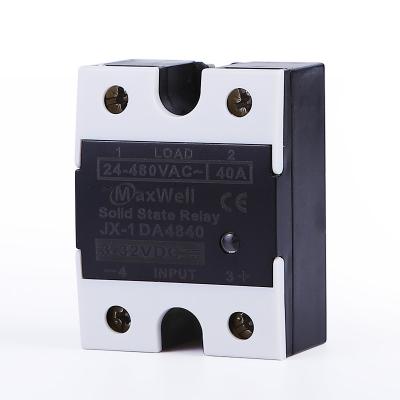

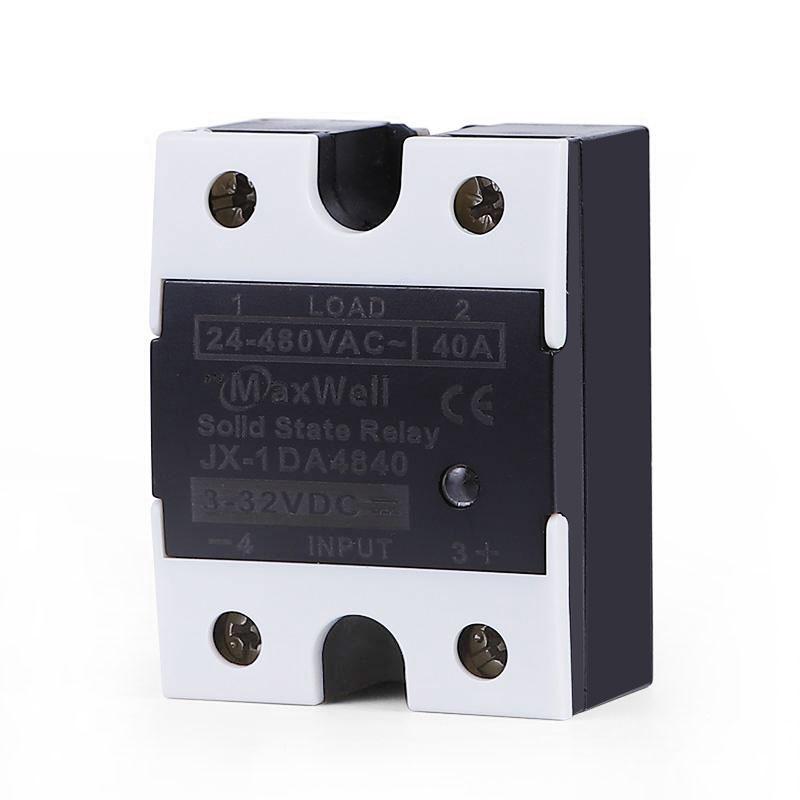

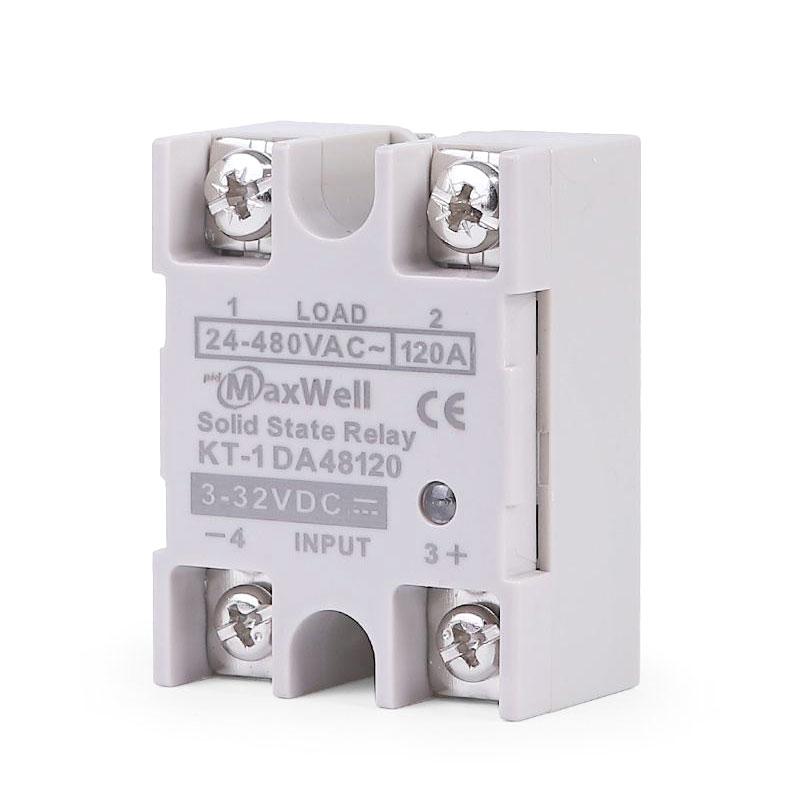

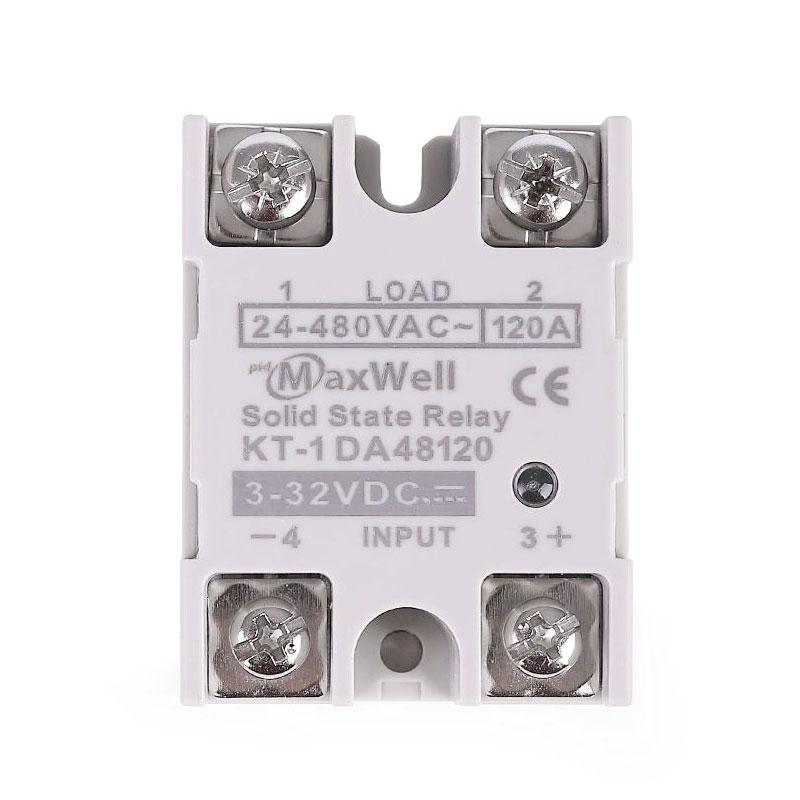

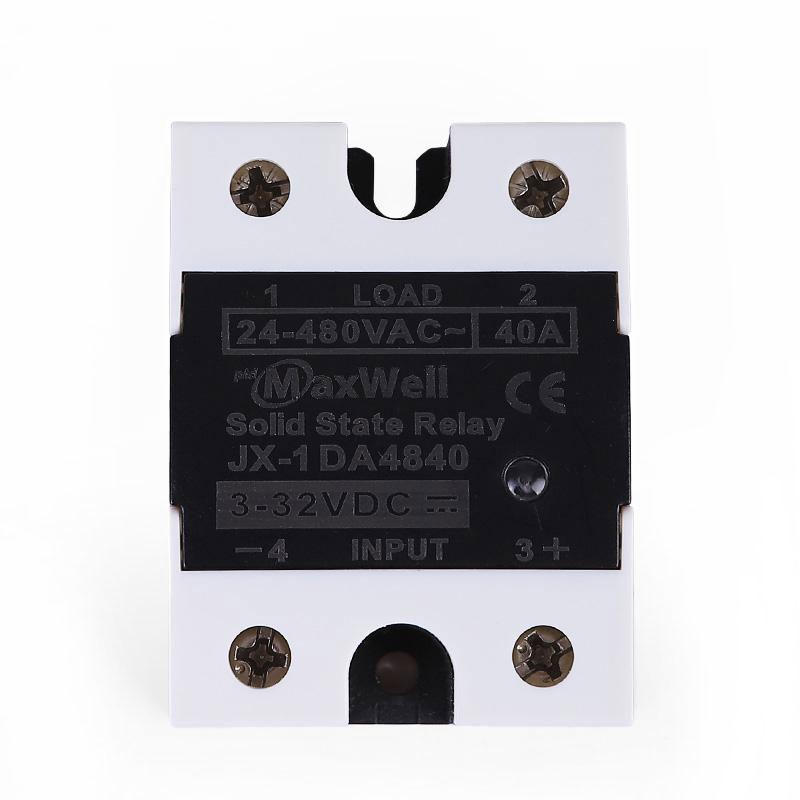

The JX-1DA48 (black flip-cover housing) and KT-1DA48 (grey housing) are single-phase, DC-controlled AC solid state relays designed as direct-fit, cost-effective alternatives to Omron G3NA-style SSRs. Both variants share identical electrical specifications and the same compact physical footprint, differing only in housing style and colour.

Accepting a DC control voltage of 3.2–32 VDC, these relays are directly compatible with PLC transistor outputs, microcontroller I/O, and standard industrial DC control signals. The AC load side supports 24–480 VAC at 50/60 Hz, covering 110 V, 220 V, 380 V, and 480 V systems worldwide. Load current ratings of 10 A, 25 A, and 40 A are available, with all three ratings sharing the same physical dimensions for easy interchangeability.

Zero-crossing trigger technology ensures switching occurs at the natural zero-crossing point of the AC waveform, minimising EMI and extending load service life. A built-in RC snubber circuit is incorporated across all three current ratings, providing additional protection against voltage transients without requiring external components. The 10 A, 25 A, and 40 A models all use a TRIAC output stage, offering reliable bidirectional switching. An LED status indicator provides instant visual confirmation of relay activation. The panel-mount housing includes a protective cover (JX-1DA48) for added terminal protection. Private label and custom logo laser printing are available on request.

Brand:
PIDMaxWell
Item no.:
JX-1DA KT-1DA
Payment:
T.T, Credit Card, Paypal etc, to be negotiate
Market price:
$10
Price:
$5
Product origin:
Made in China
Color:
Gray, Black
Min order:
10 PCS
Product weight:
0.1kg
Lead Time:
14 days after payment confirmed

Inquiry now

Variant Comparison

Feature	JX-1DA48	KT-1DA48
Housing Colour	Black	Grey

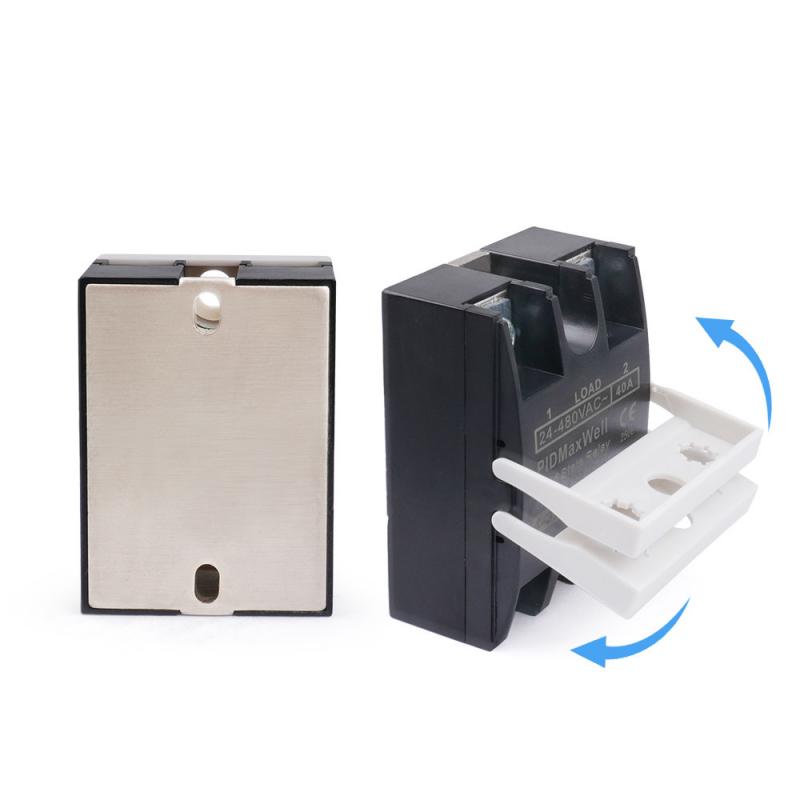

Cover Style	Flip-cover (protective lid)	Standard terminal cover
Electrical Specifications	Identical	Identical
Physical Dimensions	Identical	Identical
Current Ratings Available	10 A, 25 A, 40 A	10 A, 25 A, 40 A

Technical Specifications

Electrical Specifications

Parameter	Specification
Load Voltage	24–480 VAC (50/60 Hz)
Control (Input) Voltage	3.2–32 VDC
Minimum Turn-On Voltage	3.2 VDC
Minimum Turn-Off Voltage	1 VDC
Maximum Input Current	25 mA
Maximum Turn-On Time	10 ms
Maximum Turn-Off Time	10 ms
Maximum Off-State Leakage Current	5 mA (at rated voltage)
Maximum On-State Voltage Drop	1.6 Vrms (at rated current)
Minimum Off-State dV/dt	500 V/µs (at maximum rated voltage)
Dielectric Strength (50/60 Hz)	Input/Output ≥ 3500 Vrms
Dielectric Strength (50/60 Hz)	Input/Output/Base ≥ 2500 Vrms
Transient Overvoltage	1200 Vpk
Trigger Mode	Zero-crossing
Output Stage	TRIAC (10 A, 25 A, 40 A)
Built-in RC Snubber	Yes (all models)

Mechanical Specifications

Parameter	Specification
Housing Material	Fire-retardant ABS
Housing Colour	Black (JX-1DA48) / Grey (KT-1DA48)
Mounting	Panel mount
Input Connection	Screw terminal
Output Connection	Screw terminal
Status Indication	LED indicator
Dimensions (W × D × H)	46 mm × 28 mm × 59 mm
Certification	CE
Private Label	Logo and item number laser printing available on request

JX-1DA48 Series (Black Flip-Cover Housing)

The ordering code is structured as follows:

JX - [1] - [2] - [3] - [4]

Field	Code	Description
Prefix	JX	Black flip-cover housing variant
1: SSR Type	1	Single-phase solid state relay
2: Control Signal	DA	DC input, AC load (3.2–32 VDC)
3: Load Voltage	48	24–480 VAC, 50/60 Hz
4: Load Current	10 25 40	10 amps 25 amps 40 amps

Click on below link to download catalog, user manual for JX-1DA48、KT-1DA48

JX-1DA4840 Catalog
