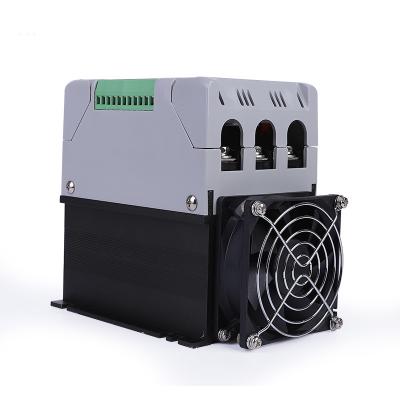

Multi Input Digital Display SCR Power Regulator

Multi Input Digital Display SCR Power Regulator

-Three phase power regulator, auto phase detection
-Work with all kinds of input, 0-10Vdc, 4-20mA, 0-5Vdc, potentiometer
you don’t have to choose the input when order this model, it works with all inputs
-Soft start function to protect SCR and load against surge current.
-Integrated heatsink and fans with temperature detection
-Over temperature alarm, output protection after alarm on
-Maximum and minimum output configurable
-Auto/manual control bumpless transfer
-Run/Stop function
-Rated load voltage 110~480Vac 50/60HZ
-Power supply for SCR to work is 100-240Vac
-Input, 0-10Vdc, 4-20mA, 0-5Vdc, 1-5Vdc, 2-10Vdc, 0-20mA, 0-10mA
-The SCR only works with resistive load, can’t work with capacitive load or inductive load
-Rated current options, 40 amps, 60 amps, 75 amps.

Connection diagram



Size and dimension



Panel Description
