How to choose proper SCR power regulator according to your application ? SCR power regulator is heavily used in industrial application particularly heating application, to choose proper SCR, several key factors needs to be take into consideration.  1)first thing first, figure out your source whether it is single phase or three phase, the single phase SCR is for single phase source, 3 phase SCR is for 3 phase source, like 3 phase 4 wires, 3 phase 3 wires etc. if the load is single phase, the process is quite simple, make sure you select a SCR with the current rating 2 times higher of the actual load. for example, if you have a heater with 20 amps and 240Vac load, the proper SCR would be 40 amps and 240~480Vac load2)PIDMaxwell SCR power regulator only works for resistive load, make sure your load is resistive load like a heater, electric heater, infrared heater etc3)Identify your source, the source would be 3 phase 380V 4 wires source, like in China, or 3 phase 4 wire 400V in german...

ON/OFF control mode is simplest form of automatic control mode, it's like a switch, either ON or either off. the rules is very simple, in a reverse control situation, when prorcess value is lower then the desirved, the output is fully on, when process value higher than the setting value, fully off. an analogy we often use is like driving the car from starting point to finishing line.In the situation of an ON/OFF control, you apply the full thrust and drive the car to the finishing line, and after the car cross the finishing line, you release the thrust and turn the engine off. the rule is very simple, the downside of this type of control mode is there will be significant overrun at the finishing line, it's impossible to stop on the finishing without overrun, in contrast, the PID control mode, the driver will observe carefully and calculate the distance and speed in relation to the finishing line, and gradually apply less thrust and maybe apply a little brake too to make sure the car st...

When selecting a three-phase power regulator, many customers focus first on total power—asking, "What size do I need?" based on the equipment's actual load wattage. While this approach isn't wrong, power rating alone isn't enough; we also need to consider voltage, current per phase, load type, the temperature controller's output signal, and the electrical cabinet's heat dissipation conditions. First, distinguish between single-phase and three-phase systems. Use a single-phase power regulator for 220V single-phase heating elements, but for 380V three-phase heating equipment—such as ovens, electric furnaces, heat treatment furnaces, or drying equipment—we must use a three-phase power regulator. Even if the total power is low, if the load is wired in a three-phase configuration, we cannot simply choose a single-phase unit for convenience; you must calculate the current based on three-phase requirements. The key factor is the current per phase. For instance, with a 380V, ...

In the daily operation of industrial heating equipment, almost every field engineer has encountered this scenario: the moment the start button is pressed, the circuit breaker in the power distribution cabinet trips immediately—the equipment "goes on strike" before it even begins to work. This happens frequently, especially when the equipment is starting from a cold state: the ammeter needle swings violently to the maximum, a dull "hum" might be heard from the contactor, and then everything goes dead. Faced with this predicament, many people’s first reaction is to suspect the circuit breaker is undersized, complain about unstable grid voltage, or blame the power regulator itself. However, seasoned veterans will tell you that the real culprit behind these frequent trips often lies in the massive inrush current that occurs the moment startup begins. To understand this phenomenon, one must look at the physical properties of electric heating elements. Whether it is common resist...

What are the applications of power regulators? Today, Xiamen Maxwell Automation Limited.—a manufacturer of SCR Power Regulator—discusses the wide range of applications and industries where power regulators are used: Power regulators are widely used in the following areas: 1. Electric furnace industry: Annealing furnaces, drying ovens, quenching furnaces, sintering furnaces, crucible furnaces, tunnel kilns, and melting furnaces. 2. Machinery and equipment: Packaging machinery, injection molding machines, heat-shrinking equipment, extrusion machinery, food processing machinery, tempering equipment, plastic processing, and infrared heating. 3. Glass industry: Fiberglass production, glass forming, glass melting, glass printing, float glass production lines, and annealing lehrs. 4. Automotive industry: Paint drying and thermoforming. 5. Energy-efficient lighting: Tunnel lighting, street lighting, photography lighting, and stage lighting. 6. Chemical industry: Distillation and ev...

SCR Control for Molybdenum Disilicide (MoSi2) Heating Elements Molybdenum disilicide (MoSi2) heating elements, such as Kanthal Super, are widely used in high-temperature industrial furnaces operating up to 1800°C. However, controlling the power delivered to these elements requires specific types of Silicon Controlled Rectifier (SCR) or thyristor power controllers due to the unique electrical characteristics of MoSi2.  The Challenge: MoSi2 Resistance Characteristics The primary challenge in controlling MoSi2 heating elements is their extreme Positive Temperature Coefficient (PTC) of resistance.  Unlike standard resistance wires (like Nichrome) which maintain a relatively constant resistance, MoSi2 has an extremely low resistance when cold—acting almost like a short circuit. As the element heats up, its resistance increases dramatically, often by a factor of 10 to 16 times its cold resistance  If full voltage is applied to a cold MoSi2 element, it will draw a mas...

I.What is the essence of power regulation? The power regulation achieved by the power regulator is essentially the active management of the average electrical power at the heating load. The load referred to here includes common electric heating tubes, metal resistance wires, and infrared radiation lamps, as well as silicon carbide rods and molybdenum disilicide heating elements used under high-temperature conditions, and even special heaters powered by step-down transformers. The total amount of electrical energy a load draws from the grid directly determines its heat output. The more electrical energy input, the greater the heat generated per unit time; conversely, the less electrical energy input, the less heat output. The function of a power regulator is to dynamically change the share of electrical energy delivered to the load through electronic control, thereby effectively intervening in the heating rate and maintaining the temperature near the target temperature.   II.What c...

Many people have the same question when they encounter power regulators: Can this thing be used to directly control temperature? At first glance, it seems logical, since power regulators regulate power, and changes in power will naturally change the temperature. But if you look closely, the answer is actually quite clear—it doesn't inherently have the ability to "control temperature." What truly stabilizes the temperature at the set value is a series of interconnected systems.   The power regulator in a circuit acts more like a compliant executor. It has no eyes or brain; it can't understand temperature signals from thermocouples or RTDs, nor can it compare the current temperature with the set value. Its only function is to obediently adjust the electrical output to the heating element according to external instructions. In other words, it can influence the intensity of heating, but it cannot determine when to heat or at what temperature to stop.   So who makes the deci...

In industrial heating systems, three-phase power regulators have become the mainstay of power control. However, when faced with the selection process, many engineers still struggle with the question: should they use phase-shifting voltage regulation or zero-crossing power regulation? Choosing the wrong option can lead to unstable temperature control at best, and at worst, affect the lifespan of the power grid and equipment. In fact, understanding the underlying differences between the two technologies clarifies the answer.     Phase angle firing mode Essentially, it's about "waveform cutting." A portion of the conduction angle is cut off within each half-cycle, resulting in a continuously adjustable output voltage. The advantages are extremely fast response and precise control, making it suitable for applications requiring rapid response. The trade-off is waveform distortion, which generates harmonics and causes some pollution to the power grid. Burst firing mode This is call...

  When encountering "SCR power regulators" for the first time, many users are often confused by the technical terminology and unclear about the practical problems the device solves. In reality, its role is straightforward: it is not merely a simple on/off switch, but a device capable of continuously adjusting electric heating power based on temperature requirements. With this device, heating output is no longer an "all-or-nothing" affair; instead, it becomes smooth, controllable, and precise—marking the fundamental difference between it and traditional contactors.   In electric heating systems, heating elements require power to generate heat. If controlled solely by contactors, the elements are limited to two extreme states: full-power heating or complete shutdown. This crude on/off control often causes temperature fluctuations akin to a rollercoaster ride in applications requiring constant temperatures, making it difficult to meet process specifications. The SCR power ...

In the daily operation of industrial heating equipment, almost every field engineer has encountered this scenario: the moment the start button is pressed, the circuit breaker in the power distribution cabinet trips immediately—the equipment "goes on strike" before it even begins to work. This happens frequently, especially when the equipment is starting from a cold state: the ammeter needle swings violently to the maximum, a dull "hum" might be heard from the contactor, and then everything goes dead. Faced with this predicament, many people’s first reaction is to suspect the circuit breaker is undersized, complain about unstable grid voltage, or blame the power regulator itself. However, seasoned veterans will tell you that the real culprit behind these frequent trips often lies in the massive inrush current that occurs the moment startup begins.     To understand this phenomenon, one must look at the physical properties of electric heating elements. Whether it is...

  When selecting a three-phase power regulator, many customers focus first on total power—asking, "What size do I need?" based on the equipment's actual load wattage. While this approach isn't wrong, power rating alone isn't enough; you also need to consider voltage, current per phase, load type, temperature controller signals, and the electrical cabinet's heat dissipation conditions.   First, distinguish between single-phase and three-phase systems. Use a single-phase power regulator for 220V single-phase heating elements. For 380V three-phase heating equipment—such as ovens, electric furnaces, heat treatment furnaces, or drying equipment—a three-phase power regulator is mandatory. Even if the total power is low, if the load is wired in a three-phase configuration, you cannot simply choose a single-phase unit for convenience; the current must be calculated based on three-phase requirements.   The current per phase is the critical factor. For example, w...

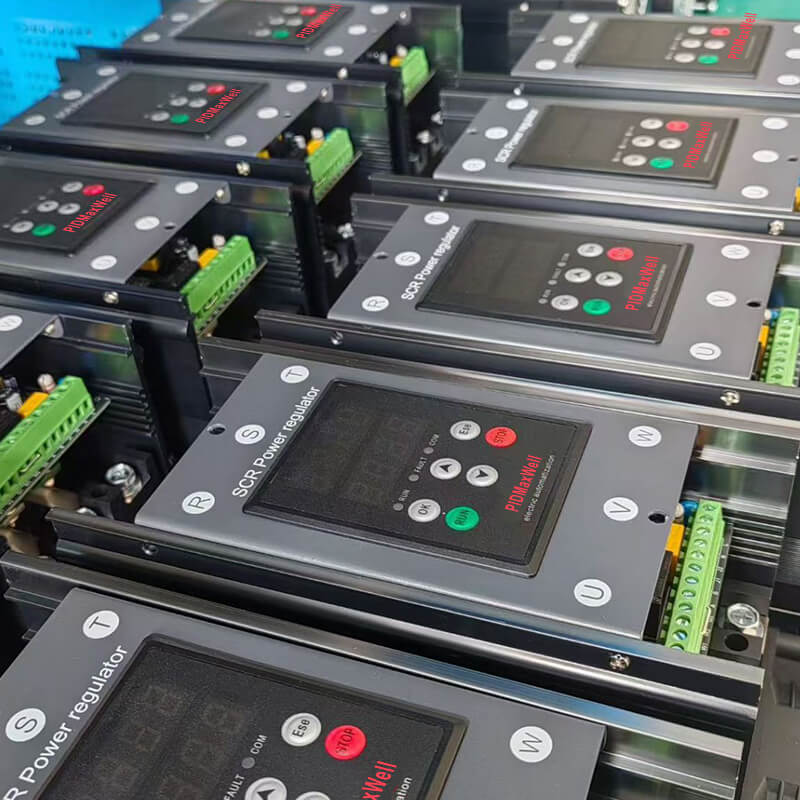

  While power regulators may appear to be standardized products, significant differences between manufacturers become apparent when they are deployed in industrial settings. Price is merely one factor; more critical considerations include accurate model selection, sufficient application experience, professional pre-sales consultation, and timely after-sales support. You can assess a manufacturer's professionalism by looking at a few key details.   First, observe whether the manufacturer proactively verifies the operating conditions. A professional manufacturer will not simply ask for the required amperage; they will also confirm details such as voltage, load type, control signals, wiring configuration, installation environment, continuous operation duration, and temperature control requirements. If a supplier provides a quote based solely on current without asking these questions, the likelihood of future issues increases.   Second, consider their understanding of differ...

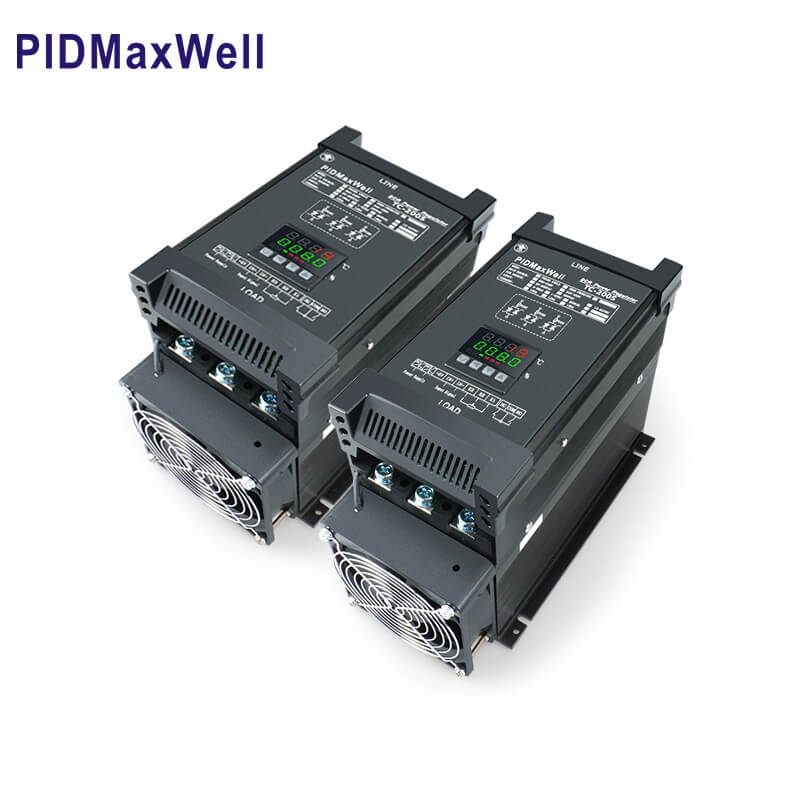

  In industries such as mold temperature controllers, electric furnaces, kilns, and drying ovens, a common headache is encountering a situation where the temperature controller displays 100% output, the power regulator panel shows normal readings, and the ammeter also displays a reading, yet the temperature simply won't rise. Many people's first reaction is to assume it's an aging heating element, a damaged temperature controller, or insufficient power supply voltage. However, after on-site troubleshooting, the real problem often lies in a mismatch between the power regulator's adjustment mode and the load type.   One common symptom is that the current is displayed, but the actual heat output is significantly insufficient. All three phases show current readings, and the equipment appears to be working, but the heating rate is noticeably slower, and the time to reach the set temperature is greatly extended. The technical root cause is that many devices use a phase-shift voltag...
