In the daily operation of industrial heating equipment, almost every field engineer has encountered this scenario: the moment the start button is pressed, the circuit breaker in the power distribution cabinet trips immediately—the equipment "goes on strike" before it even begins to work. This happens frequently, especially when the equipment is starting from a cold state: the ammeter needle swings violently to the maximum, a dull "hum" might be heard from the contactor, and then everything goes dead. Faced with this predicament, many people’s first reaction is to suspect the circuit breaker is undersized, complain about unstable grid voltage, or blame the power regulator itself. However, seasoned veterans will tell you that the real culprit behind these frequent trips often lies in the massive inrush current that occurs the moment startup begins.

To understand this phenomenon, one must look at the physical properties of electric heating elements. Whether it is common resistance wire or high-temperature-resistant silicon carbide or silicon molybdenum rods, their resistance at room temperature is far lower than at operating temperature. This means that the instant the equipment starts cold, the denominator in Ohm's Law is very small, causing the instantaneous current to spike dramatically. Measured data shows that this startup inrush current can reach three to five times the rated operating current; although it lasts only a few hundred milliseconds, it is enough to trigger the circuit breaker's instantaneous trip threshold. Interestingly, if the equipment has been preheated, a subsequent restart goes smoothly because the resistance increases as the temperature rises, allowing the current to settle back into the normal range—proving that low cold-state resistance is the root cause of the problem.

To permanently solve the tripping issue, many enterprises choose to upgrade to a higher-capacity circuit breaker or even upgrade the specifications of the entire power supply line. However, the results are often disappointing. Standard circuit breakers react extremely quickly to instantaneous faults, while the inrush current rises very sharply; even if you upgrade the circuit breaker by two or three sizes, the protection mechanism may still trigger if the rate of current increase at startup is too steep. It is much like a roadway: even if you widen the lanes, if every vehicle slams on the gas and rushes forward the very second the light turns green, the intersection will still become gridlocked. Therefore, simply increasing hardware capacity addresses the symptoms rather than the root cause.

The challenges associated with cold starts are particularly pronounced in equipment such as electric furnaces, kilns, high-power ovens, and mold temperature controllers. Peak inrush currents can be exceptionally high—especially when ramping up temperatures after a production line shutdown for maintenance, or during winter when ambient temperatures are low. In some operational settings, the situation is unpredictable, with a success rate of only six out of ten start-up attempts; the remaining four result in tripped breakers. This places an exhausting burden on maintenance personnel, hampers production efficiency, and drives up spare parts consumption.

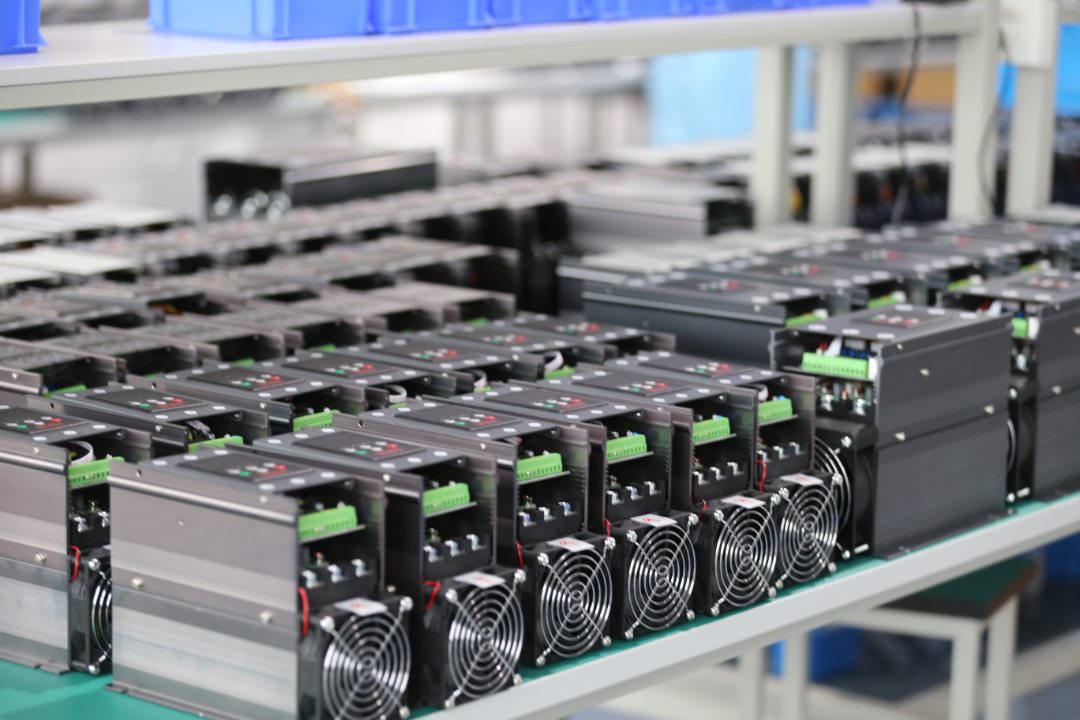

Is there a way to make the start-up process smoother and more controllable? The answer is yes, and this is precisely where high-quality power regulators prove their value. Take an SCR power regulator with a soft-start function as an example: instead of immediately connecting full power upon receiving a start command, it allows the output power to ramp up gradually according to a preset slope. For instance, it might preheat at 20% power for a few seconds, transition to 50%, and finally reach 100% smoothly. This stepped, gradual start-up strategy acts as a buffer against current surges, significantly clipping the peak current and preventing the circuit breaker from tripping erroneously. Furthermore, some advanced models feature built-in dynamic current-limiting modules; if the current exceeds safe limits, the system actively clamps the output to ensure that power increments remain within a controllable range at every moment. The combination of these two functions effectively eliminates tripping issues for high-power, multi-zone heating systems.

Conversely, ignoring the impact of inrush currents over the long term leads to consequences far more serious than just tripped breakers. Frequent overcurrent surges accelerate the aging of the thyristors within the SCR module and drastically increase thermal stress cycles on heating elements, leading to premature cracking or oxidation and flaking of resistance wires or silicon carbide rods. At the same time, every high-current disturbance sends a surge back into the power grid, causing busbar voltage fluctuations and interfering with other precision equipment on the same line. When these hidden costs accumulate, the expenses associated with maintenance and downtime often far exceed the cost of replacing a circuit breaker. So, the next time your heating equipment trips the breaker upon startup, experiences a surge in cold-start current, or triggers a circuit breaker without apparent cause, try stepping away from the reflexive urge to simply install a larger switch. Instead, take a moment to verify two things: Does your power regulator actually support soft-start ramp-up? And does its current-limiting response time align with the load characteristics? Often, slightly "softening" the startup curve achieves far more effective results than drastically increasing the power supply capacity. After all, in high-power electric heating systems, an elegant startup is far superior to a crude, abrupt surge.
