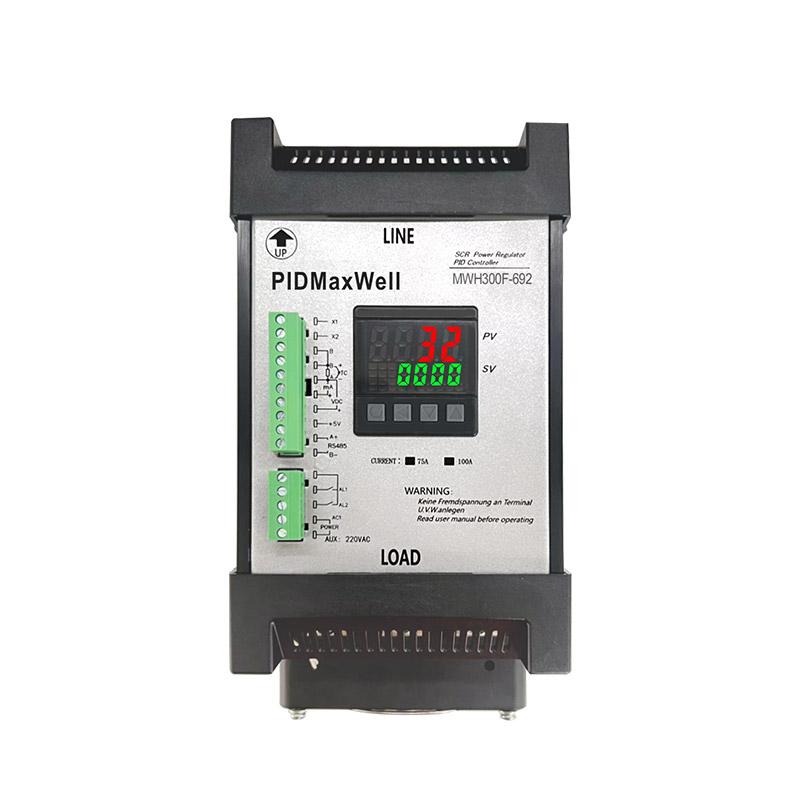

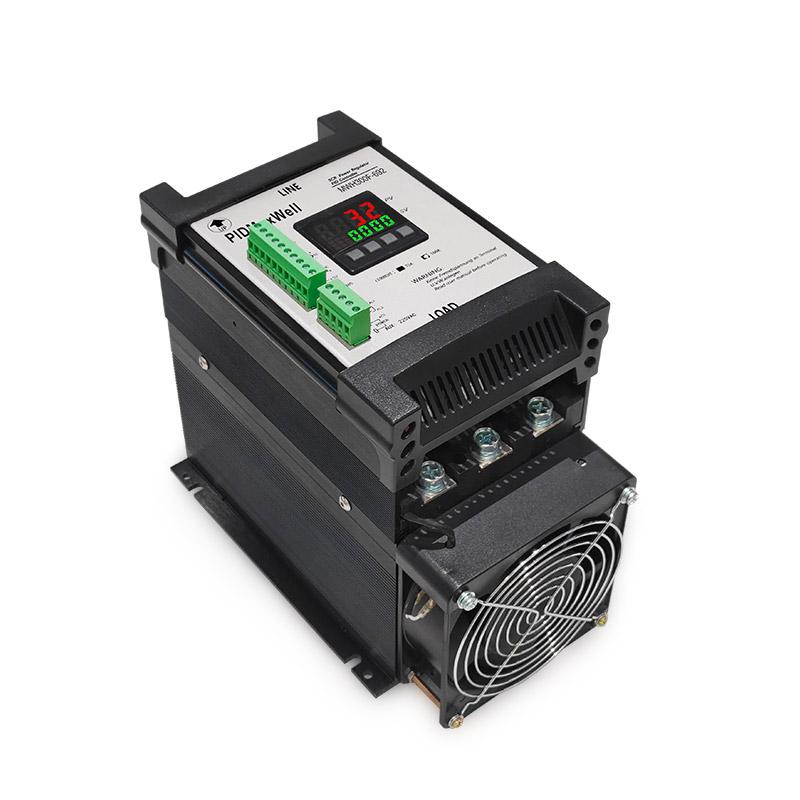

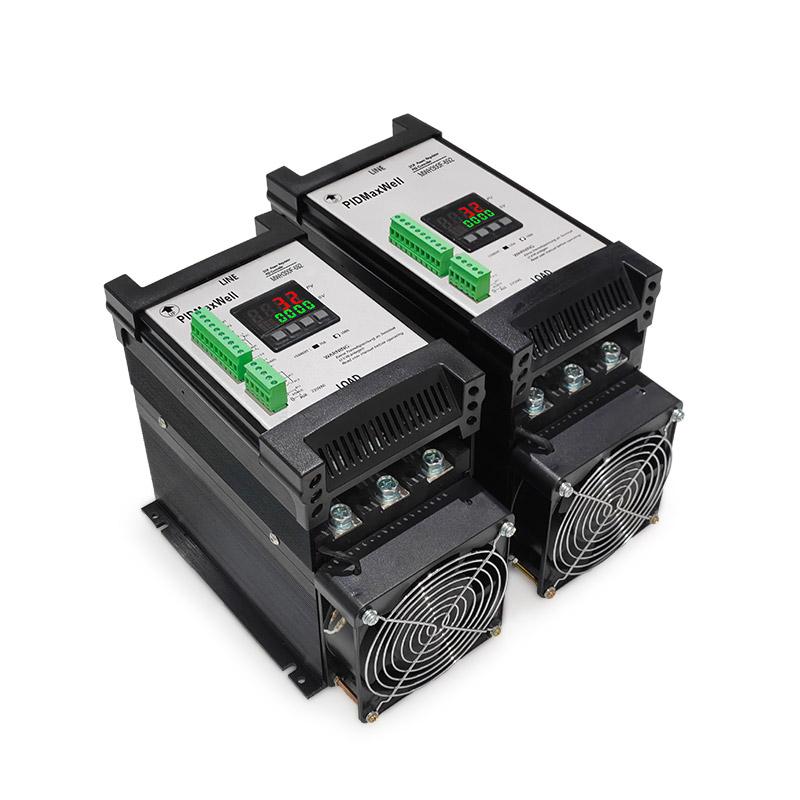

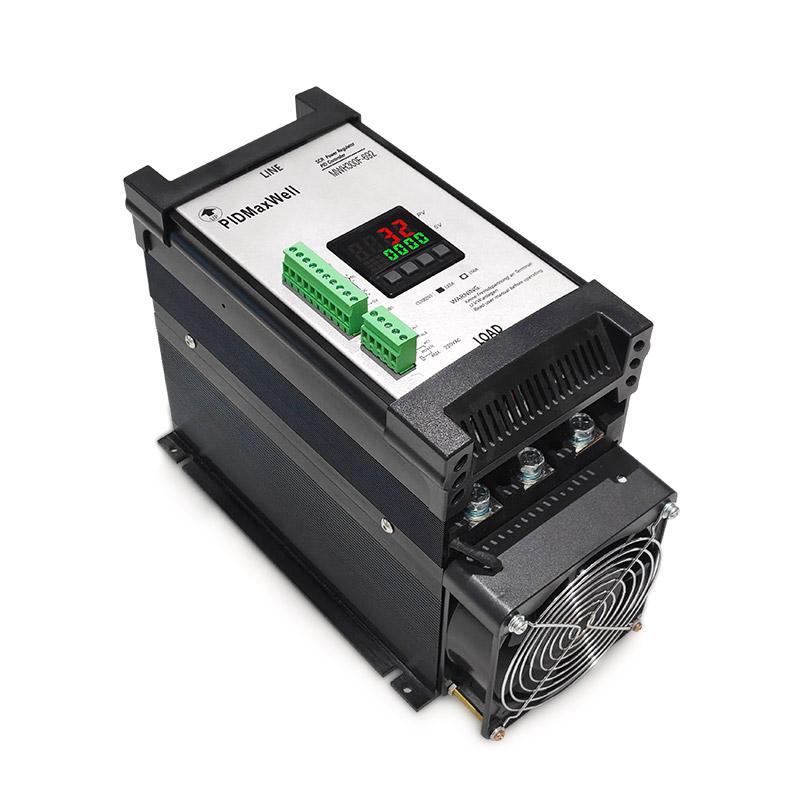

MWH300F-692 Dual-Mode Intelligent SCR Power Regulator & PID Temperature Controller

- Three phase SCR power regulator- 0-10V,4-20mA,0-5V,potentiometer input- 24~480Vac load- 40amps,60amps,75amps,100amps- Digital LED display- Ideal for resistive application

● Three phase SCR power regulator● Universal input, supports all analog input● 24~480Vac load● 40amps,60amps,75amps optional● Digital LED display● Ideal for resistive application

Three-Phase Intelligent SCR Power Regulator The Maxwell TC-200S Series is an industrial-grade, three-phase intelligent SCR (Silicon Controlled Rectifier) power regulator designed for precise, stepless control of resistive heating loads in demanding industrial environments. Manufactured by Maxwell Automation Technology Co., Ltd. under the PIDMaxWell brand, the TC-200S combines a fully digital control architecture with an integrated dual-row LED display, multi-function indicator LEDs, and a front-panel keypad, enabling operators to monitor process parameters and adjust output settings directly without external programming tools. The regulator accepts a wide range of analogue control input signals — including 4–20 mA, 0–20 mA, 0–5 VDC, 0–10 VDC, 1–5 VDC, and 2–10 VDC — and features automatic phase detection, making it straightforward to integrate into new or existing control systems. An integrated soft-start (ramp) function eliminates inrush current surges at power-on, protecting both the SCR modules and the connected heating elements from thermal shock. When the heat-sink temperature exceeds the user-defined alarm threshold (AL1), the unit automatically reduces output power to a configurable safe level (EOP), maintaining process continuity while safeguarding the internal SCR modules from thermal damage. An optional RS-485 communication interface with Modbus-RTU protocol enables seamless integration into SCADA systems, PLCs, DCS, and industrial IoT networks. The TC-200S supports auto/manual bumpless transfer, run/stop control, and configurable minimum and maximum output limits, providing the flexibility required for a wide range of industrial heating and process control applications. Rated current options of 100 A, 125 A, 150 A, 175 A, 200 A, and 225 A cover load capacities from 48 kW to 190 kW (three-phase), making the TC-200S suitable for small laboratory ovens through to large industrial electric furnaces.

● Three phase SCR power regulator● Universal input, supports all analog input● 24~440Vac load, cost effective● From 25 amps to 200 amps● Ideal for resistive load● MS-3VD3825C,MS-3VD3840C,MS-3VD3860C● MS-3VD3880C,MS-3VD38100C,MS-3VD38120C

SCR-51 series is a compact design cost effective three phase SCR power regulator, works perfectly for resistive load. With built-in heatsink and cooling fans.  Makes it very easy to use. Load option starts from 40 amps all the way up to 100 amps,  with a built-in overheat thermo protection to make your system always protected. Clear digital display for temperature and input/output indication.

The MW30E series is an advanced, three-phase power regulator (current range: 25–1500A), Suitable for both resistive and inductive loads 1. Rating from 25A all the way up to 1500A2. 0-5V/0-10V/0-20mA/4-20mA analog input, 3 digital inputs, 1 digital output, Modbus-RTU3. Phase angle firing control mode or burst-firing mode configurable4. Work with load on Star, Delta or Star with netural wire5. Modbus RS-485 available as default,  other communication like profibus DP, Ethernet can be custom made6. Different control mode, Constant Voltage (V) / Constant Current (I) / Constant Power (P)/Open-loop7.100% load can be applied to the SCR according to the rating, for example, 100 amps rating SCR, you can apply 100 amps to phase current. there is no need to take the derating into consideration

The SCR-6 Series is a high-performance, three-phase intelligent digital power regulator designed for precise control of resistive loads in industrial heating applications. Featuring a compact design with an integrated heatsink and cooling fans, the SCR-6 offers a reliable and cost-effective solution for thermal process automation.

The Maxwell SCR-7 Series is an advanced, three-phase intelligent digital power regulator designed for precise and reliable control of resistive heating loads in industrial applications. Engineered with a fully integrated design, it combines the SCR module, high-efficiency heatsink, and cooling fans into a single, compact unit. The SCR-7 series features a comprehensive digital display for real-time monitoring of output ratio, temperature alarms, and phase status. With support for multiple analog input signals (including 4-20mA, 0-10VDC, and 0-5VDC) and optional RS-485 Modbus RTU communication, it seamlessly integrates into modern PLC and automated control systems. Built-in protective features such as soft start, auto phase detection, and over-temperature alarms ensure maximum safety and longevity for both the regulator and the connected load.
